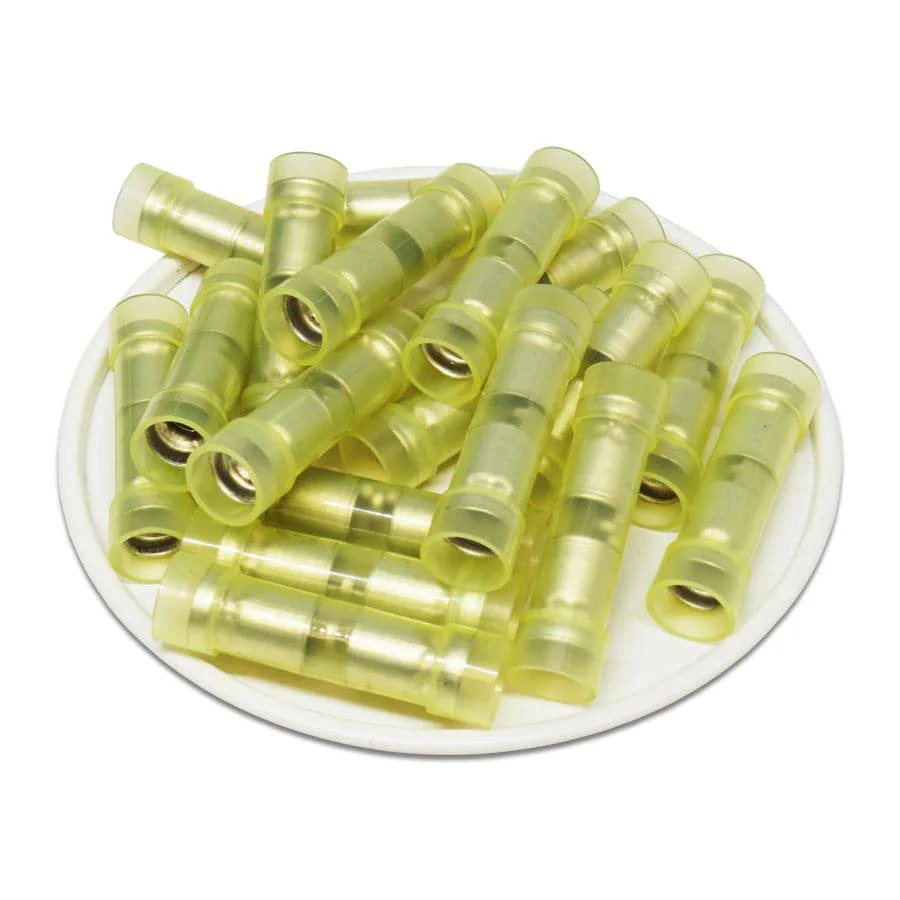

WBNYDF5 - 12 to 10 AWG Nylon Insulated Butt Splice Connectors, Double Crimp, Window, 50 Pieces
Insulated butt splice connectors insulate and protect the electrical connections from wire pull-outs, abrasion and mechanical abuse. Butt splice connectors must be crimped on both ends to work effectively.
Dimensions & Features:
Product Drawing:
None
Dimensions & Features:
| Wire Size: | 12-10 AWG |
| Color: | Yellow |
| L: | 31.3mm (1.23") |
| D: |
7.0mm (0.28") |
| D1: | 3.4mm (0.13") |
| Barrel: | Butted Seam |
| Configuration: | Flared |
| Material: | Tin Plated Copper |
| Insulation: | Nylon |
| Max Electrical Rating: | 105°C - 600 Volts |
| Max Electrical Current: | 50 AMP |
| UL Recognized: | Yes |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
Product Drawing:
Cross References
Cross Reference Parts:None
Documents
Click to view product spec sheet:Videos
Check out our YouTube channel!$5.93
Original: $19.78
-70%WBNYDF5 - 12 to 10 AWG Nylon Insulated Butt Splice Connectors, Double Crimp, Window, 50 Pieces—
$19.78
$5.93Product Information
