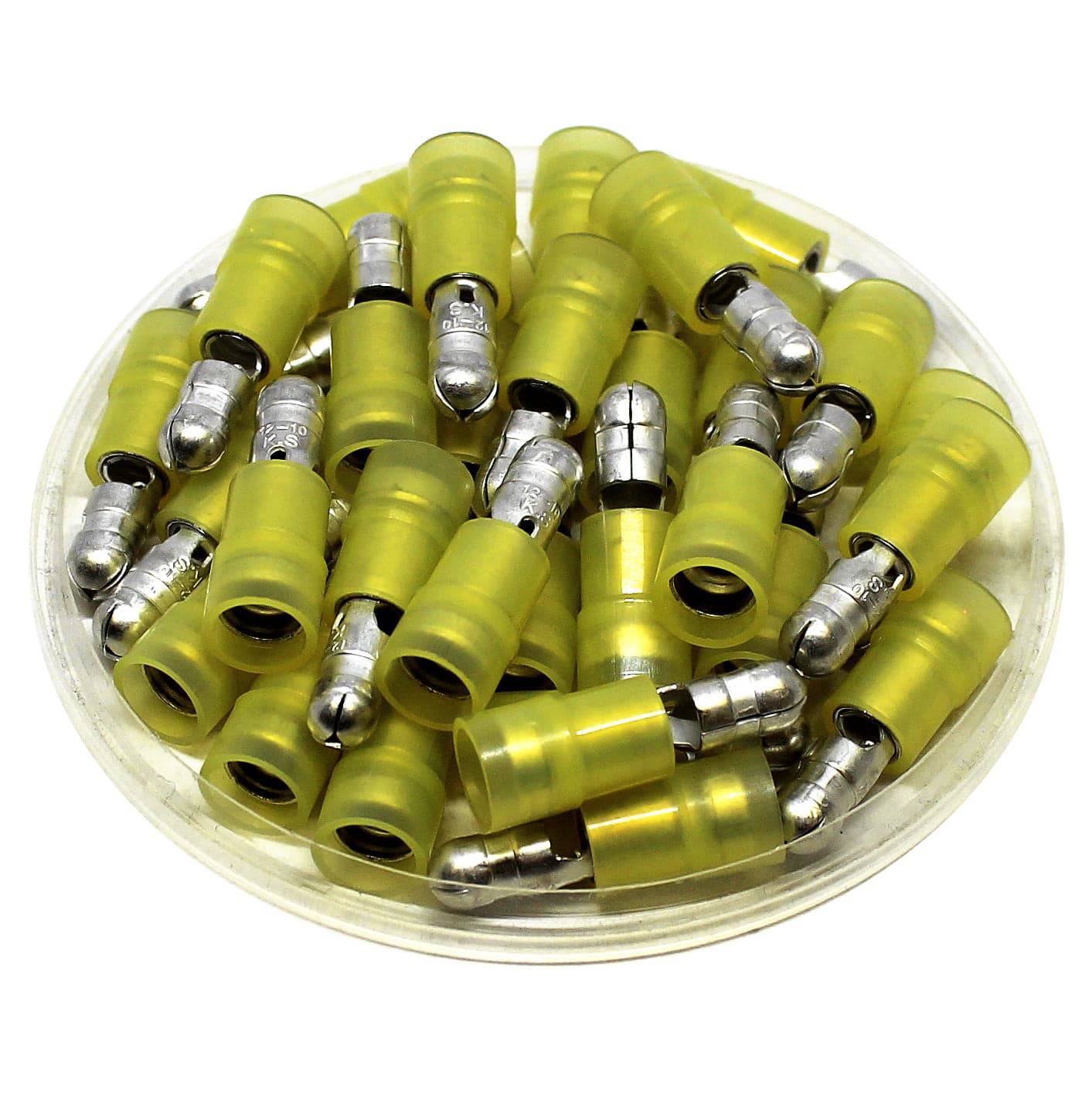

MPNYD5-195 - Nylon Insulated Male Double Crimp Bullet Connectors - 12-10 AWG
Tin-plated brass male and female insulated bullet connectors fit to form a fully insulated in-line splice that helps prevent shorting or flash-over when disconnected with the power on.
Product Drawing:
None:
| Wire Range: | 12-10 AWG |
| C: | 0.13" (3.4mm) |
| L: | 0.89" (23.5mm) |
| F: | 0.34" (8.5mm) |
| B: | 0.51" (13.5mm) |
| W: | 0.20" (5.0mm) |
| D: | 0.26" (6.5mm) |
| Terminal Material: | Tin-Plated Brass |
| Insulation Material: | Nylon |
| Insulation Color: | Yellow |
| Temperature Rating: | 105oC |
| Max AMP Rating: | 24 AMP |
| UL Recgonized: | Yes |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
Product Drawing:
Cross References
Cross Reference Parts:None:
Documents
Click to view product spec sheet:Videos
Click below to check out our YouTube channel!$23.37
MPNYD5-195 - Nylon Insulated Male Double Crimp Bullet Connectors - 12-10 AWG—
$23.37
