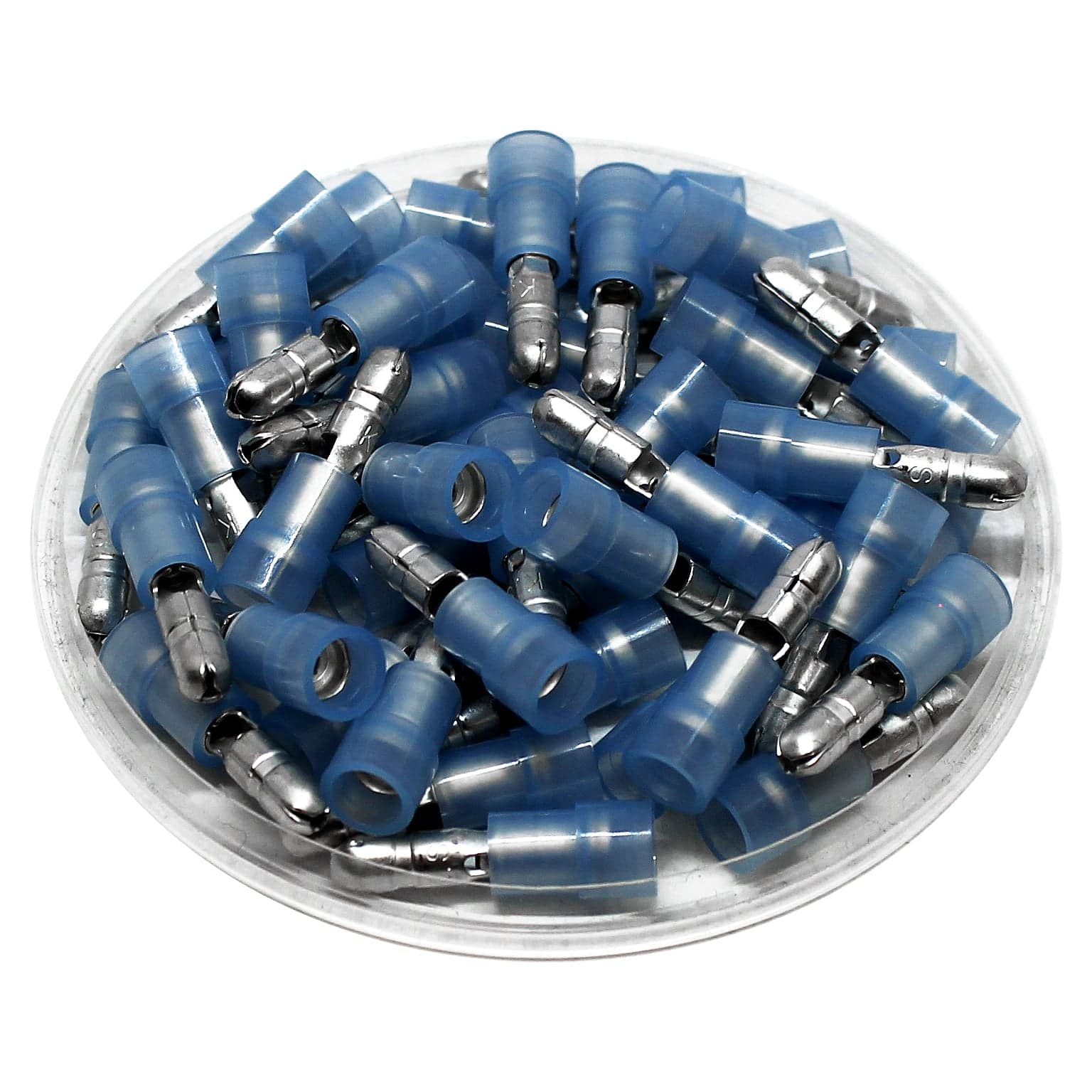

MPNY2-156 - 16 to 14 AWG Nylon Insulated Male Bullet Connectors, 100 Pieces
Tin-plated brass male and female insulated bullet connectors fit to form a fully insulated in-line splice that helps prevent shorting or flash-over when disconnected with the power on.
Product Drawing:
None:
| Wire Range: | 16-14 AWG |
| C: | 0.08" (2.3mm) |
| L: | 0.87" (22.0mm) |
| F: | 0.34" (8.5mm) |
| B: | 0.43" (11.0mm) |
| W: | 0.16" (4.0mm) |
| D: | 0.18" (4.5mm) |
| Terminal Material: | Tin-Plated Brass |
| Insulation Material: | Nylon |
| Insulation Color: | Blue |
| Temperature Rating: | 105oC |
| Max AMP Rating: | 15 AMP |
| UL Recgonized: | Yes |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
Product Drawing:
Cross References
Cross Reference Parts:None:
Documents
Click to view product spec sheet:Videos
Click below to check out our YouTube channel!$8.36
