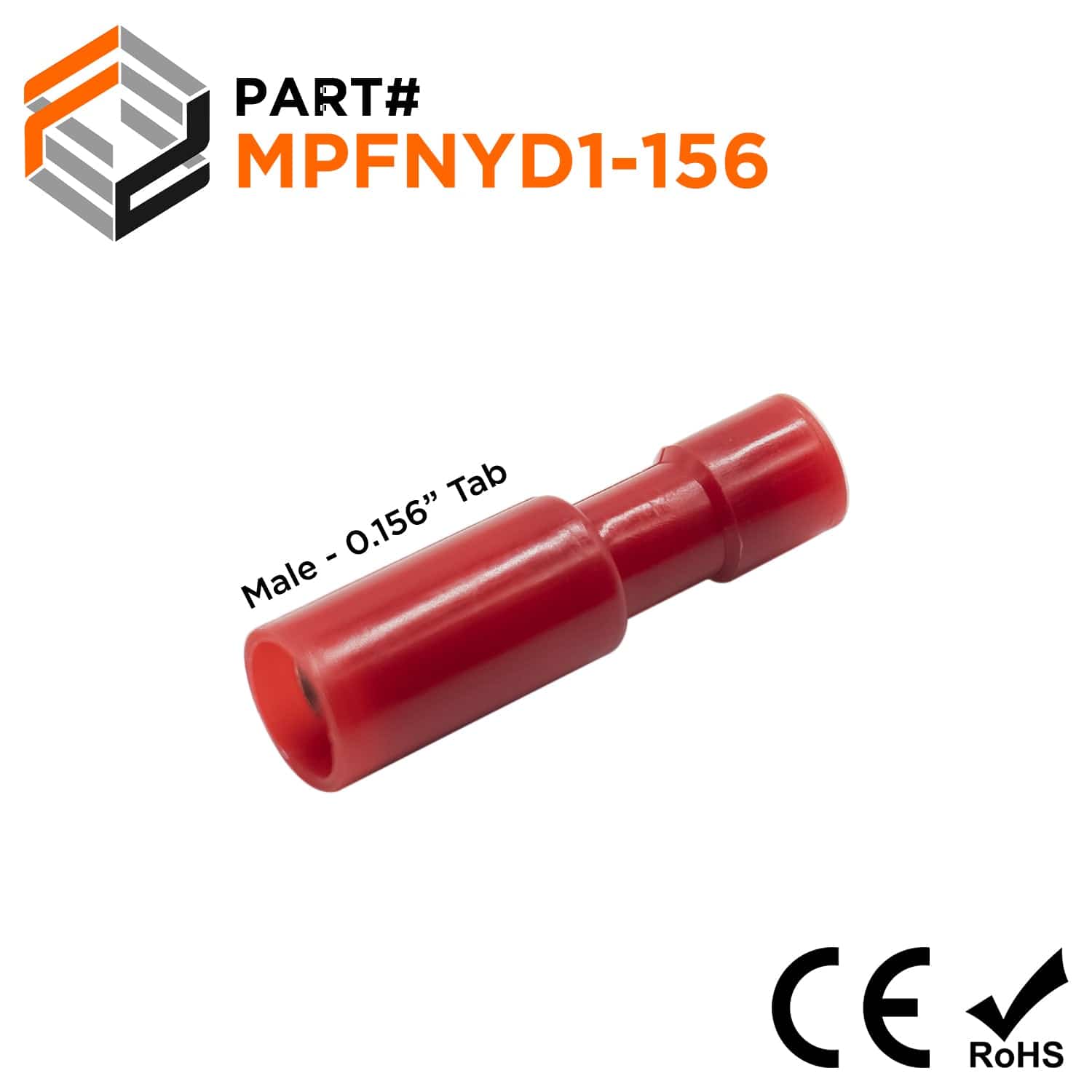

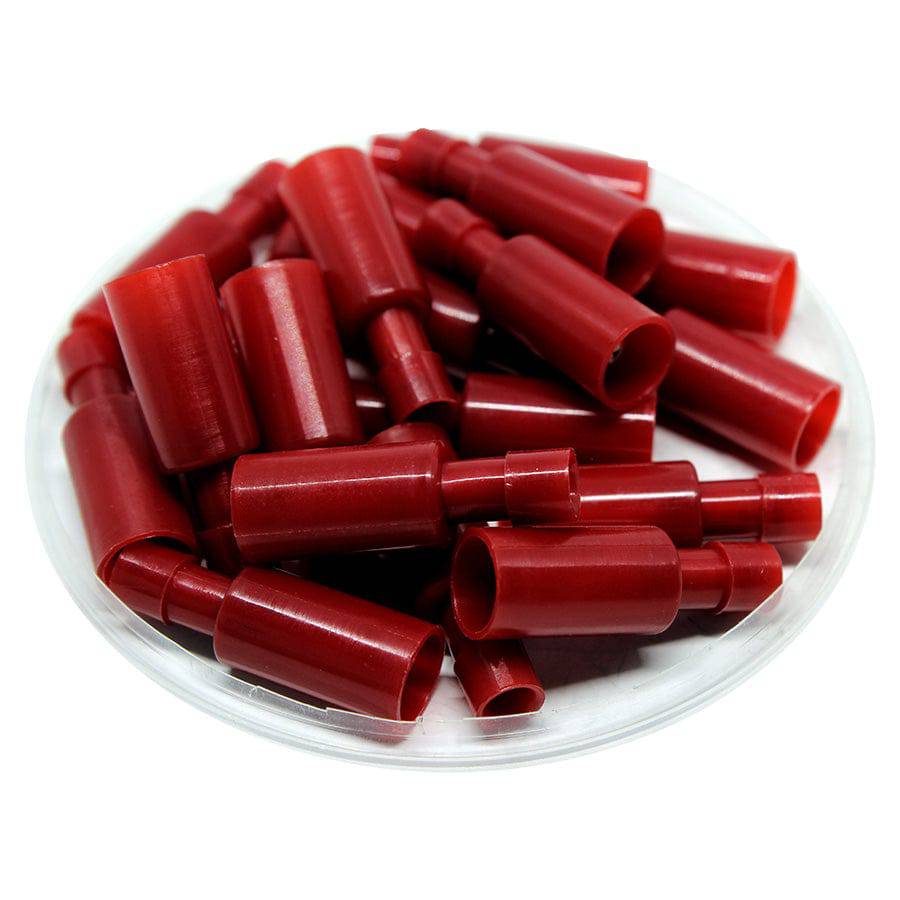

MPFNYD1-156 - Double Crimp Fully Insulated Male Bullet Connectors - 22-16 AWG - Nylon

MPFNYD1-156 - Double Crimp Fully Insulated Male Bullet Connectors - 22-16 AWG - Nylon

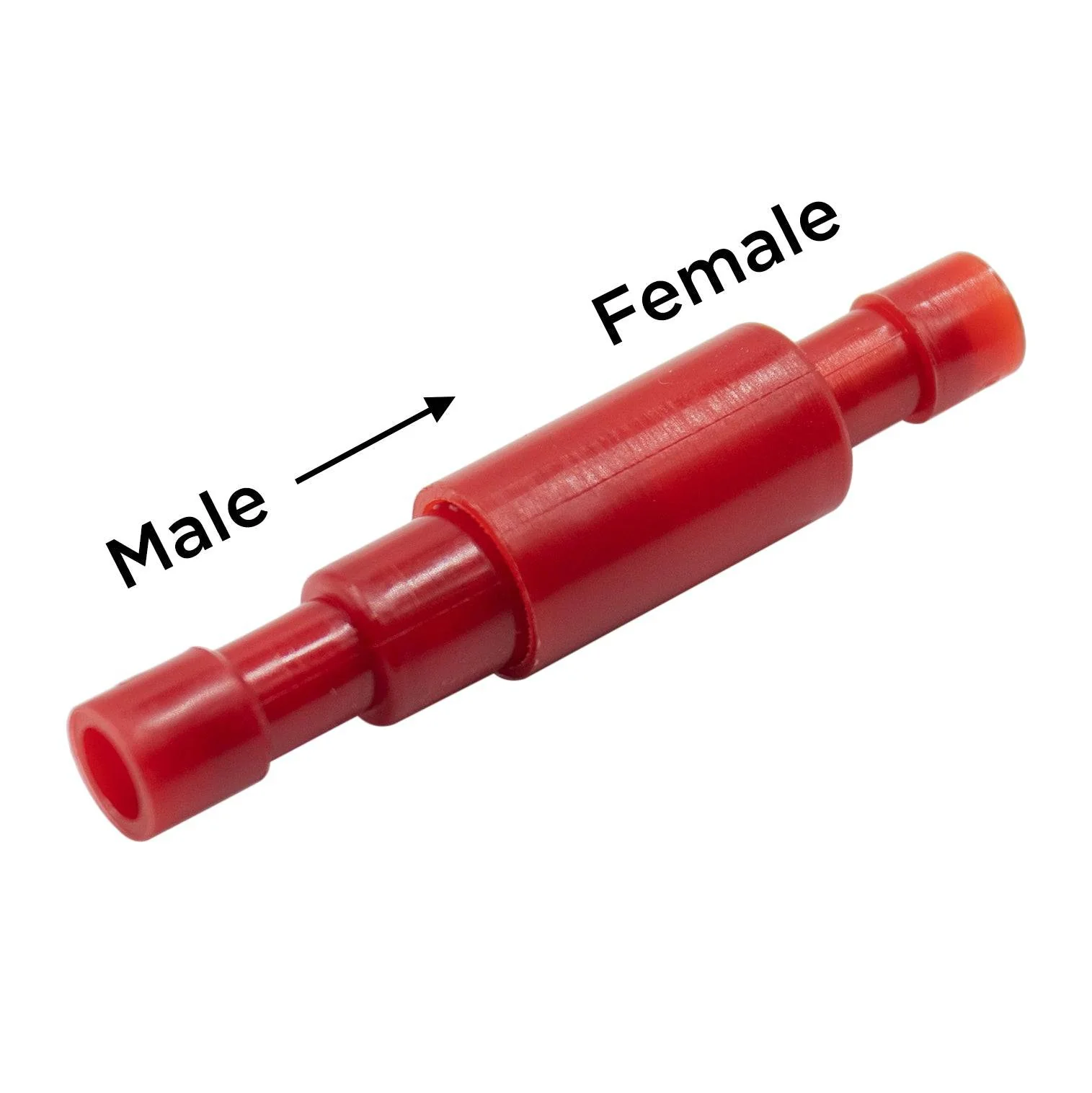

Tin plated brass bullet type insulated terminals with copper sleeve on terminal barrel. Male and female fit to form a fully insulated in-line splice. This helps prevent shorting or flash-over when disconnected with power on.

Dimensions & Features:

Wire Range: 22-16 AWG
W: 4.0mm (0.157")
F: 10.5mm (0.412")
L: 27.0mm (1.063")
B: 10.0mm (0.394")
D: 4.0mm (0.157")
C: 1.7mm (0.07")
T: 0.4mm (0.016")
Terminal Material: Brass
Insulation Material: Nylon
Insulation Color: Red
Temperature Rating: 105°C - 600 Volts
Max AMP Rating: 10 AMP
UL Approved: Yes
CE Certified: Yes
RoHS Compliant: Yes

Product Drawing:

Cross References

Cross Reference Parts:
None

Documents

Click to view product spec sheet:

Videos

Click below to check out our YouTube channel!
$4.87

Original: $16.22

-70%
