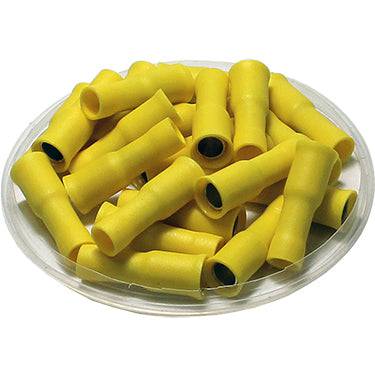

FRV5-195 - 12 to 10 AWG Nylon Insulated Female Bullet Connectors, Fully Insulated, 100 Pieces
Tin plated brass bullet type insulated terminals with copper sleeve on terminal barrel. Male and female fit to form a fully insulated in-line splice. This helps prevent shorting or flash-over when disconnected with power on.
Product Drawing:
None:
| Wire Range: | 12-10 AWG |
| W: | 0.19" (4.9mm) |
| F: | 0.27" (7.0mm) |
| L: | 0.94" (24.0mm) |
| B: | 0.49" (12.5mm) |
| D: | 0.21" (5.5mm) |
| T: | 0.02" (0.45mm) |
| Terminal Material: | Tin-Plated Brass |
| Insulation Material: | Viny |
| Insulation Color: | Yellow |
| Temperature Rating: | 105oC - 600 Volts |
| Max AMP Rating: | 24 AMP |
| UL Recgonized: | Yes |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
Product Drawing:
Cross References
Cross Reference Parts:None:
Documents
Click to view product spec sheet:Videos
Click below to check out our YouTube channel!$3.31
Original: $11.04
-70%FRV5-195 - 12 to 10 AWG Nylon Insulated Female Bullet Connectors, Fully Insulated, 100 Pieces—
$11.04
$3.31Product Information
