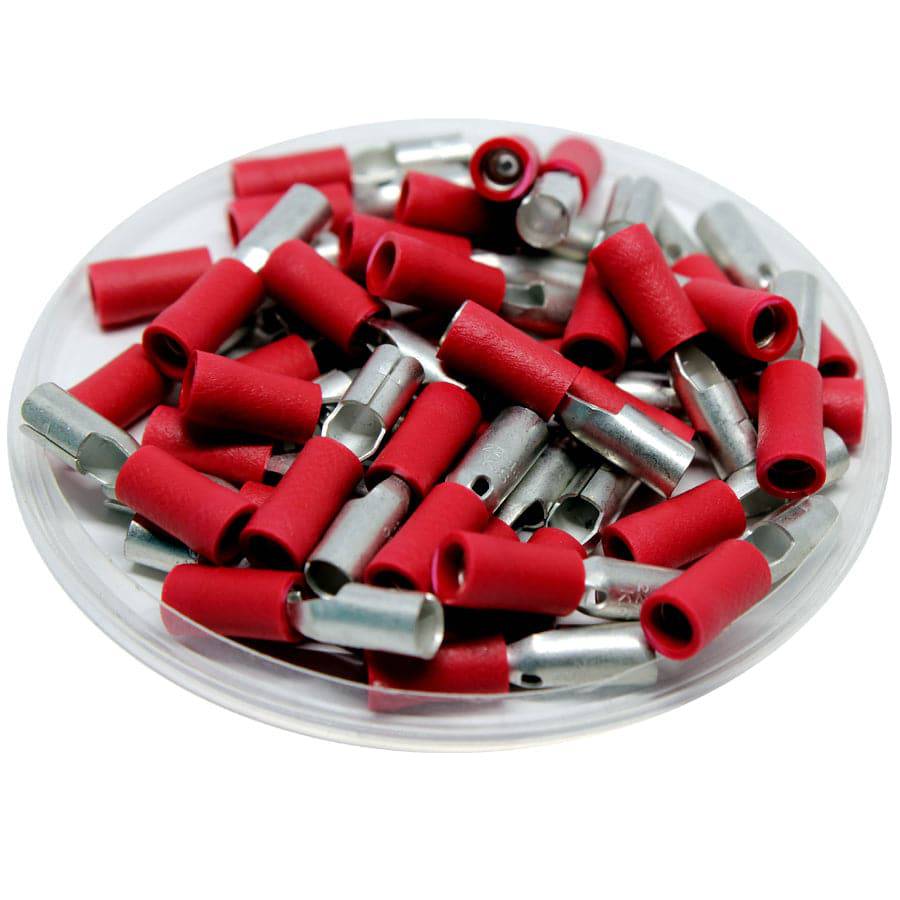

FRSD1-156 - Vinyl Insulated Female Double Crimp Bullet Connectors - 22-16 AWG
Tin-plated brass male and female insulated bullet connectors fit to form a fully insulated in-line splice that helps prevent shorting or flash-over when disconnected with the power on. Double crimp terminals are built with an additional inner copper barrel which:
Substantially reduces the strain on the wire strands.
Transfers strain to the wire jacket.
Provides a stronger connection.
Double crimp terminals prevent wire terminations from becoming loose under stress or pulled out of the terminal, particularly in areas where vibrations are present.
Product Drawing:
None:
| Wire Range: | 22-16 AWG |
| C: | 0.07" (1.7mm) |
| L: | 0.89" (22.5mm) |
| F: | 0.28" (7.0mm) |
| B: | 0.43" (11.0mm) |
| W: | 0.15" (3.9mm) |
| D: | 0.16" (4.0mm) |
| Terminal Material: | Tin-Plated Brass |
| Insulation Material: | Vinyl |
| Insulation Color: | Red |
| Temperature Rating: | 105oC - 600 Volts |
| Max AMP Rating: | 10 AMP |
| UL Recgonized: | Yes |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
