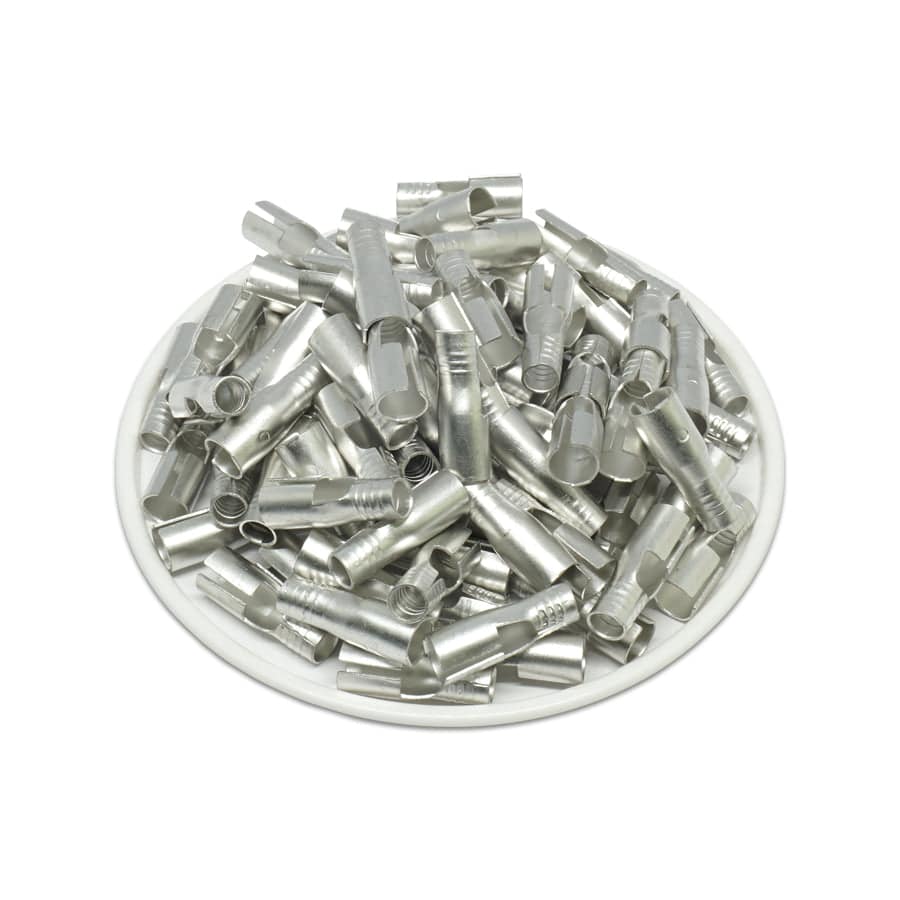

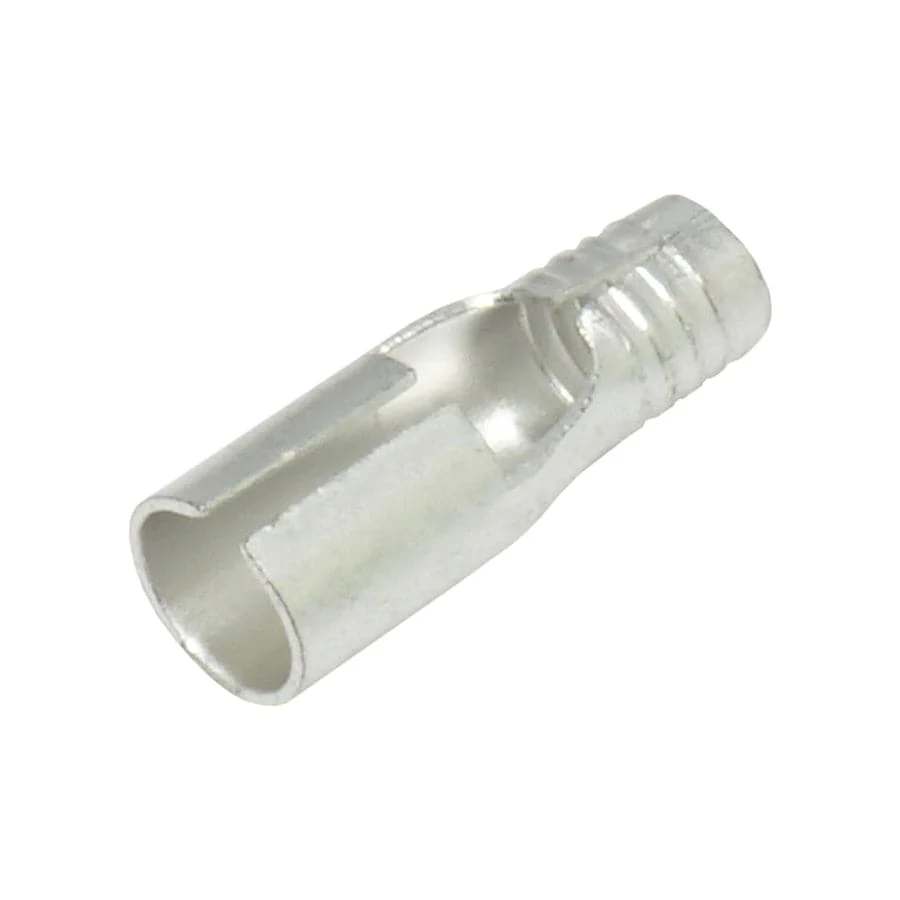

FRN5-195 - Non Insulated Female Bullet Connectors - 12-10 AWG
Tin-plated brass male and female non insulated bullet connectors fit to form a full in-line splice that helps prevent shorting or flash-over when disconnected with the power on.
Product Drawing:
None:
| Wire Range: | 12-10 AWG |
| L: | 0.65" (16.5mm) |
| F: | 0.27" (7.0mm) |
| E: | 0.20" (5.0mm) |
| W: | 0.20" (5.0mm) |
| C: | 0.13" (3.5mm) |
| Terminal Material: | Brass |
| Surface Material: | Tin-Plated |
| UL Recognized: | No |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
