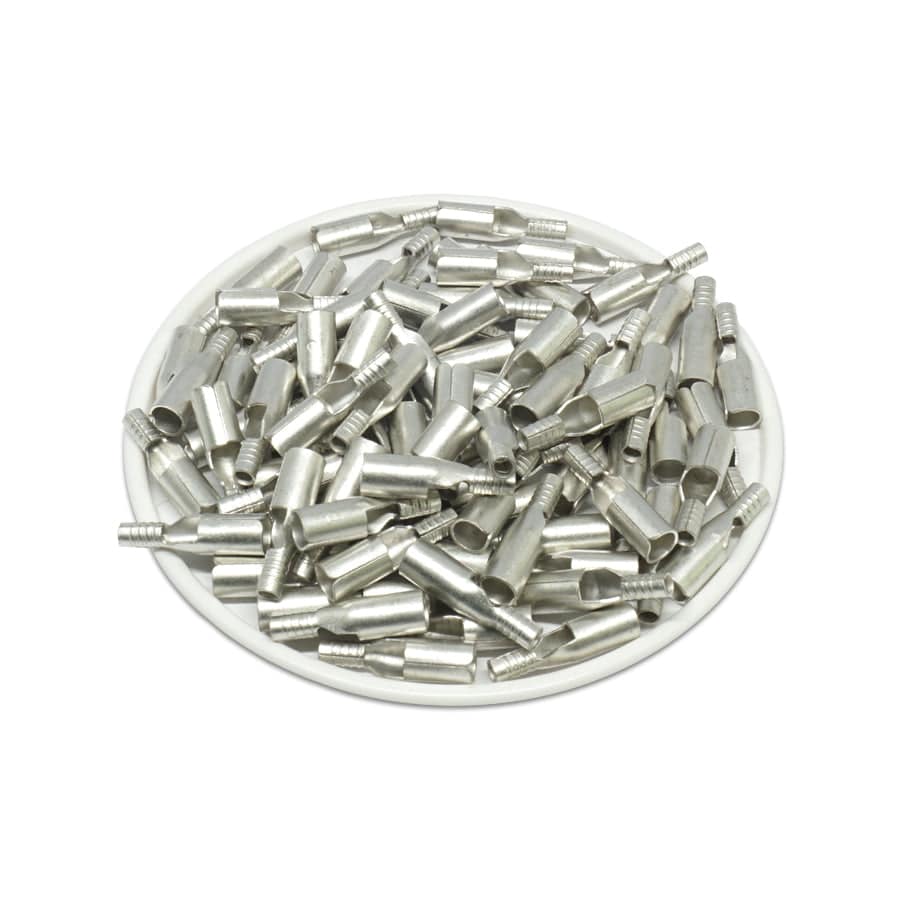

FRN1-156 - Non Insulated Female Bullet Connectors - 22-16 AWG
Tin-plated brass male and female non insulated bullet connectors fit to form a full in-line splice that helps prevent shorting or flash-over when disconnected with the power on.
Product Drawing:
None:
| Wire Range: | 22-16 AWG |
| L: | 0.67" (17.0mm) |
| F: | 0.28" (7.3mm) |
| E: | 0.20" (5.0mm) |
| W: | 0.16" (4.0mm) |
| C: | 0.06" (1.7mm) |
| Terminal Material: | Brass |
| Surface Material: | Tin-Plated |
| UL Recognized: | No |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
Product Drawing:
Cross References
Cross Reference Parts:None:
Documents
Click to view product spec sheet:Videos
Click below to check out our YouTube channel!$4.35
