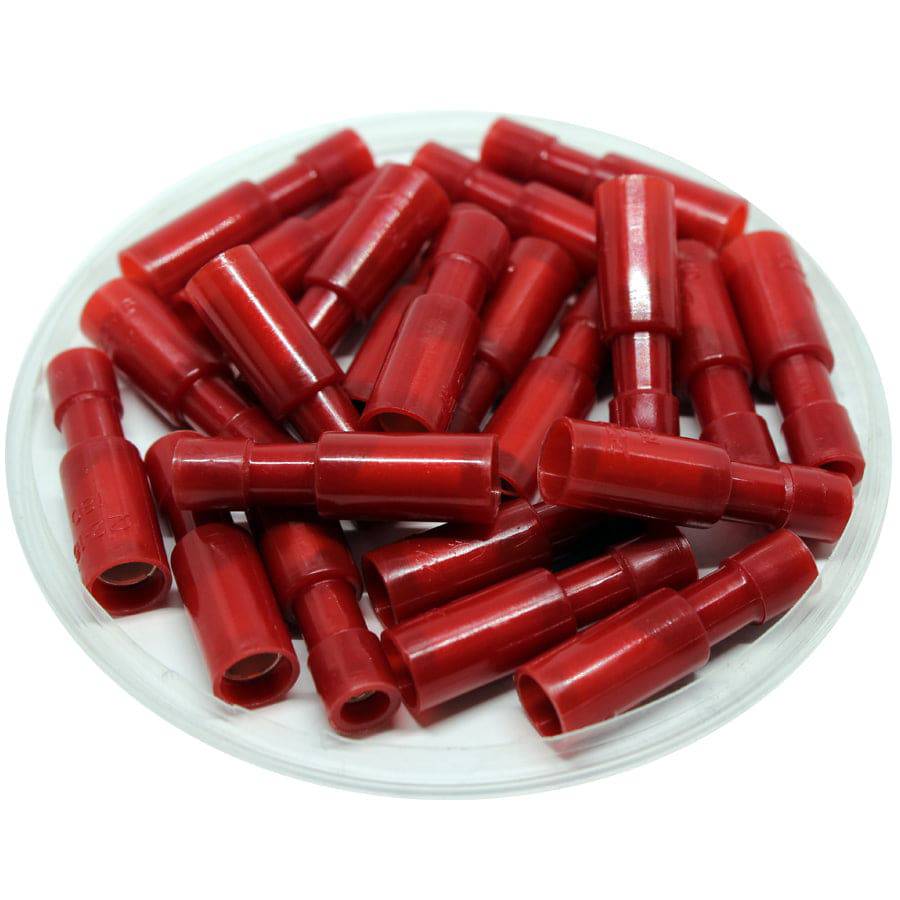

FRFNYD1-180 - 22 to 16 AWG Nylon Fully Insulated Female Bullet Connectors, Double Crimp, 100 Pieces
Tin plated brass bullet type insulated terminals with copper sleeve on terminal barrel. Male and female fit to form a fully insulated in-line splice. This helps prevent shorting or flash-over when disconnected with power on. Double crimp terminals are built with an additional inner copper barrel which:
Substantially reduces the strain on the wire strands.
Transfers strain to the wire jacket.
Provides a stronger connection.
Double crimp terminals prevent wire terminations from becoming loose under stress or pulled out of the terminal, particularly in areas where vibrations are present.
Product Drawing:
None:
| Wire Range: | 22-16 AWG |
| W: | 0.17" (4.4mm) |
| F: | 0.27" (7.0mm) |
| L: | 0.99" (25.2mm) |
| B: | 0.43" (11.0mm) |
| D: | 0.16" (4.0mm) |
| C: | 0.01" (0.4mm) |
| Terminal Material: | Brass |
| Insulation Material: | Nylon |
| Insulation Color: | Red |
| Temperature Rating: | 105oC - 600 Volts |
| Max AMP Rating: | 10 AMP |
| UL Recgonized: | Yes |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
Product Drawing:
Cross References
Cross Reference Parts:None:
Documents
Click to view product spec sheet:Videos
Click below to check out our YouTube channel!$13.48
