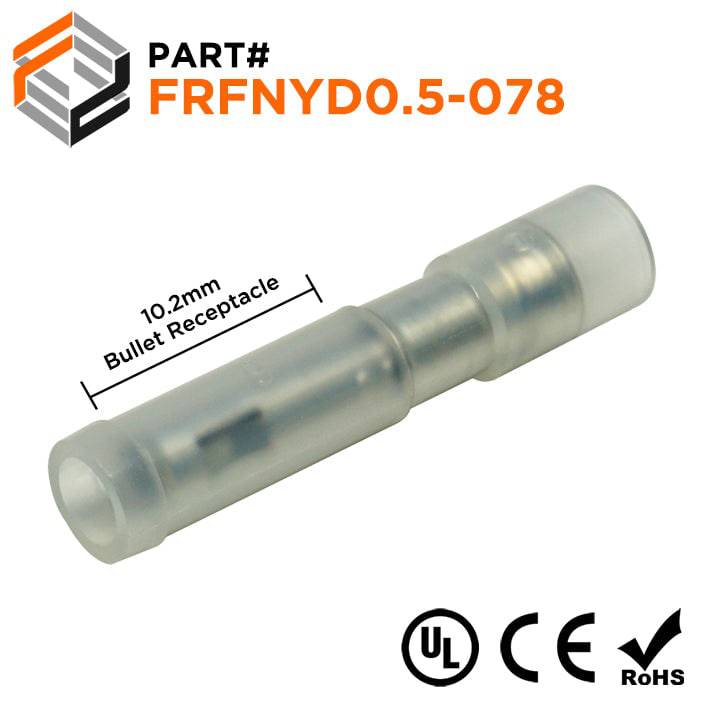

FRFNYD05-078 - 22 to 16 AWG Nylon Fully Insulated Female Bullet Connector, Double Crimp, 100 Pieces

FRFNYD05-078 - 22 to 16 AWG Nylon Fully Insulated Female Bullet Connector, Double Crimp, 100 Pieces

Tin plated brass bullet type insulated terminals with copper sleeve on terminal barrel. Male and female fit to form a fully insulated in-line splice. This helps prevent shorting or flash-over when disconnected with power on. Double crimp terminals prevent wire terminations from becoming loose under stress or pulled out of the terminal, particularly in areas where vibrations are present

Dimensions & Features:

Wire Range: 22-16 AWG
Color: Clear
W: 2.05mm (0.081")
F: 10.0mm (0.394")
L: 24.8mm (0.976")
B: 11.0mm (0.433")
D: 3.5mm (0.138")
T: 0.3mm (0.012")
Terminal Material: Brass
Insulation Material: Nylon
Temperature Rating: 105°C - 600 Volts
Max AMP Rating: 7 AMP
UL Recognized: No
CE Certified: Yes
RoHS Compliant: Yes

Product Drawing:

Cross References

Cross Reference Parts:
None

Documents

Click to view product spec sheet:

Videos

Click below to check out our YouTube channel!
$9.36

Original: $31.20

-70%
FRFNYD05-078 - 22 to 16 AWG Nylon Fully Insulated Female Bullet Connector, Double Crimp, 100 Pieces—

$31.20

$9.36

Product Information

Shipping & Returns

Description

Tin plated brass bullet type insulated terminals with copper sleeve on terminal barrel. Male and female fit to form a fully insulated in-line splice. This helps prevent shorting or flash-over when disconnected with power on. Double crimp terminals prevent wire terminations from becoming loose under stress or pulled out of the terminal, particularly in areas where vibrations are present

Dimensions & Features:

Wire Range: 22-16 AWG
Color: Clear
W: 2.05mm (0.081")
F: 10.0mm (0.394")
L: 24.8mm (0.976")
B: 11.0mm (0.433")
D: 3.5mm (0.138")
T: 0.3mm (0.012")
Terminal Material: Brass
Insulation Material: Nylon
Temperature Rating: 105°C - 600 Volts
Max AMP Rating: 7 AMP
UL Recognized: No
CE Certified: Yes
RoHS Compliant: Yes

Product Drawing:

Cross References

Cross Reference Parts:
None

Documents

Click to view product spec sheet:

Videos

Click below to check out our YouTube channel!
