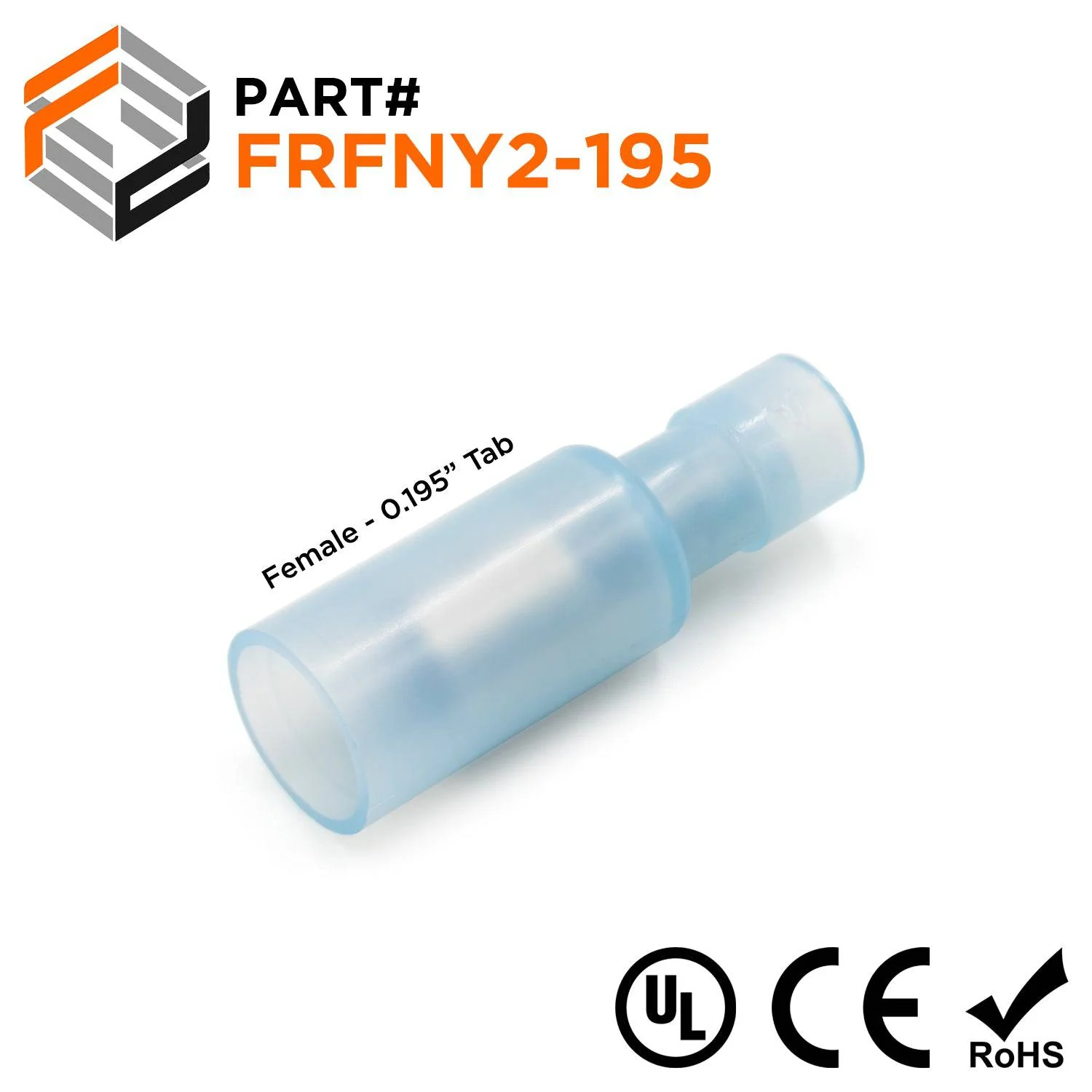

FRFNY2-195 - 16 to 14 AWG Nylon Fully Insulated Female Bullet Connectors, 100 Pieces

FRFNY2-195 - 16 to 14 AWG Nylon Fully Insulated Female Bullet Connectors, 100 Pieces

Tin plated brass bullet type insulated terminals with copper sleeve on terminal barrel. Male and female fit to form a fully insulated in-line splice. This helps prevent shorting or flash-over when disconnected with power on.

Dimensions & Features:

Wire Range: 16-14 AWG
W: 4.9mm (0.193")
F: 7.0mm (0.276")
L: 26.5mm (1.043")
B: 11mm (0.433")
D: 4.5mm (0.177")
C: 2.3mm (0.09")
T: 0.4mm (0.016")
Terminal Material: Tin Plated Brass
Insulation Material: Nylon
Insulation Color: Blue
Temperature Rating: 105°C - 600 Volts
Max AMP Rating: 15 AMP
UL Approved: Yes
CE Certified: Yes
RoHS Compliant: Yes

Product Drawing:

Cross References

Cross Reference Parts:
None

Documents

Click to view product spec sheet:

Videos

Click below to check out our YouTube channel!
$14.85
FRFNY2-195 - 16 to 14 AWG Nylon Fully Insulated Female Bullet Connectors, 100 Pieces—
$14.85
