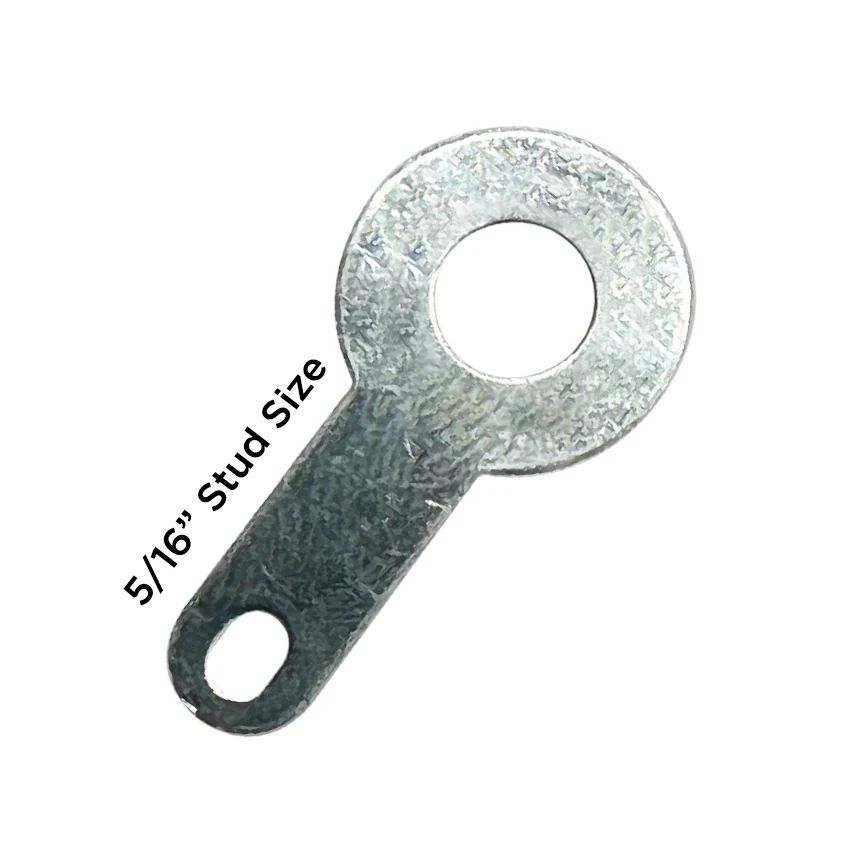

DJ8.2-T Tin Plated Brass Earthing Washer, 5/16" Stud, 100 Pieces
EARTHING WASHERS
Tin plated brass earthing washers are suitable for audio/video, energy and industrial, semiconductor, and test and measurement applications.
DIMENSIONS & SPECIFICATIONS:
| Accessory Type: | Earthing Washer |
| Stud Size: | 5/16" (8.2mm) |
| A: | 0.53" (13.5mm) |
| B: | 0.32" (8.2mm) |
| C: | 0.12" (3.0mm) |
| L: | 0.02" (0.5mm) |
| N: | 1.06" (27.0mm) |
| Material: | Tin Plated Brass |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
DRAWING:
Cross References
Cross Reference Parts:
None
Documents
Click to view product spec sheet:
$4.75
DJ8.2-T Tin Plated Brass Earthing Washer, 5/16" Stud, 100 Pieces—
$4.75
Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
EARTHING WASHERS
Tin plated brass earthing washers are suitable for audio/video, energy and industrial, semiconductor, and test and measurement applications.
DIMENSIONS & SPECIFICATIONS:
| Accessory Type: | Earthing Washer |
| Stud Size: | 5/16" (8.2mm) |
| A: | 0.53" (13.5mm) |
| B: | 0.32" (8.2mm) |
| C: | 0.12" (3.0mm) |
| L: | 0.02" (0.5mm) |
| N: | 1.06" (27.0mm) |
| Material: | Tin Plated Brass |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
DRAWING:
Cross References
Cross Reference Parts:
None
Documents
Click to view product spec sheet:
