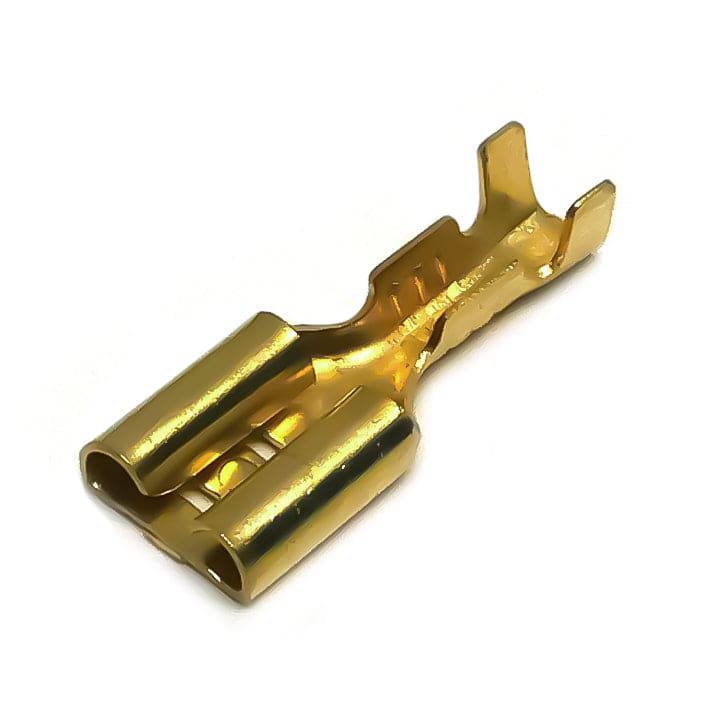

601LR - 16-14 AWG Female Open Barrel Quick Disconnect - Locking Tab - .250" x 0.032" NEMA Tab
Open barrel terminals (Faston B Type Terminals) have two sets of open "teeth" that bite down into the wire and insulation to secure and hold onto them. This gives a much tighter hold than a closed barrel terminal would, making it ideal for applications that would cause the wire to move around or be pulled often.
Dimensions & Features:
Product Drawing:
None
Dimensions & Features:
| Wire Size: | 16-14 AWG |
| L: | 19.1mm (0.75") |
| F: | 7.8mm (0.30") |
| W: | 6.8mm (0.26") |
| D: | 5.5mm (0.21") |
| D1: | 3.5mm (0.13") |
| T: | 4.5mm (0.17") |
| Nema Tab: | 0.032 x 0.250" (0.8 x 6.35mm) |
| Material: | Brass - Untinned |
| Surface Treatment: | Standard Chemical Treatment |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
Product Drawing:
Cross References
Cross Reference Parts:None
Documents
Click to view product spec sheet:Videos
Check out our YouTube channel!$1.84
