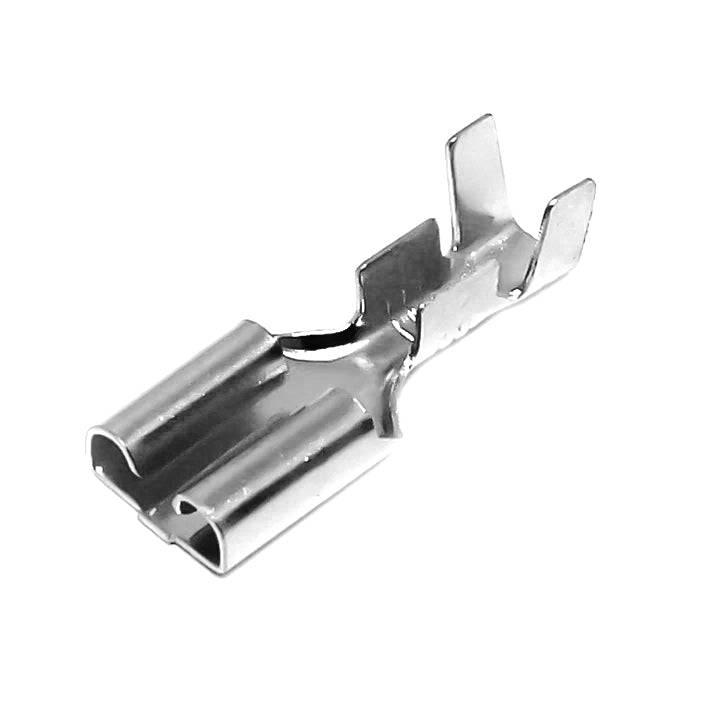

DJ626-D4.8A-T - 16 to 14 AWG Female Quick Disconnects, Tin Plated Brass, 4.8 NEMA Tab, 100 Pieces
Open barrel terminals (Faston B Type Terminals) have two sets of open "teeth" that bite down into the wire and insulation to secure and hold onto them. This gives a much tighter hold than a closed barrel terminal would, making it ideal for applications that would cause the wire to move around or be pulled often.
Dimensions & Features:
Product Drawing:
None
Dimensions & Features:
| Wire Size: | 16-14 AWG |
| NEMA Tab: | 4.8 x 0.4mm (0.188" x 0.016") |
| L: | 17.0mm (0.669") |
| W: | 6.0mm (0.236") |
| Material: | Brass |
| Surface Treatment: | Tin Plating |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
Product Drawing:
Cross References
Cross Reference Parts:None
Documents
Click to view product spec sheet:Videos
Check out our YouTube channel!$1.80
Original: $6.00
-70%DJ626-D4.8A-T - 16 to 14 AWG Female Quick Disconnects, Tin Plated Brass, 4.8 NEMA Tab, 100 Pieces—
$6.00
$1.80Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
Open barrel terminals (Faston B Type Terminals) have two sets of open "teeth" that bite down into the wire and insulation to secure and hold onto them. This gives a much tighter hold than a closed barrel terminal would, making it ideal for applications that would cause the wire to move around or be pulled often.
Dimensions & Features:
Product Drawing:
None
Dimensions & Features:
| Wire Size: | 16-14 AWG |
| NEMA Tab: | 4.8 x 0.4mm (0.188" x 0.016") |
| L: | 17.0mm (0.669") |
| W: | 6.0mm (0.236") |
| Material: | Brass |
| Surface Treatment: | Tin Plating |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
Product Drawing:
Cross References
Cross Reference Parts:None
Documents
Click to view product spec sheet:Videos
Check out our YouTube channel!
