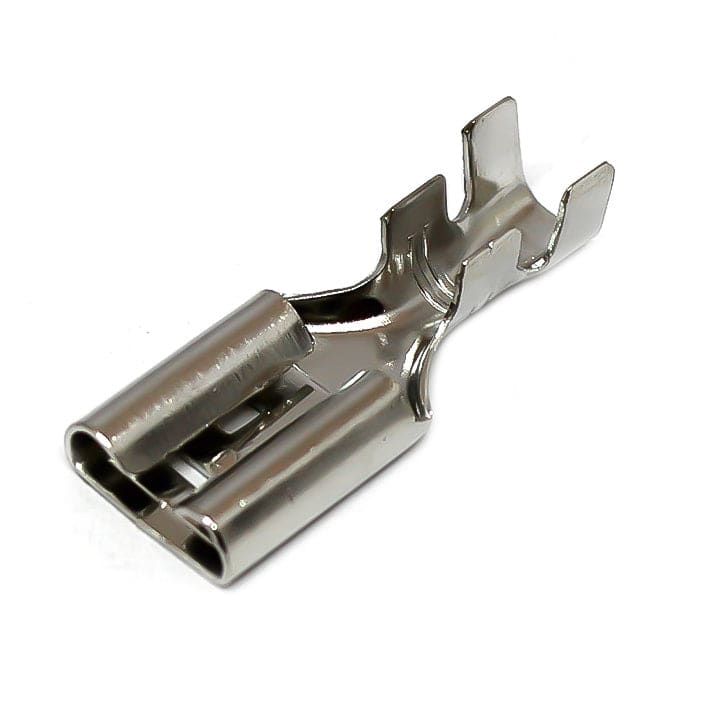

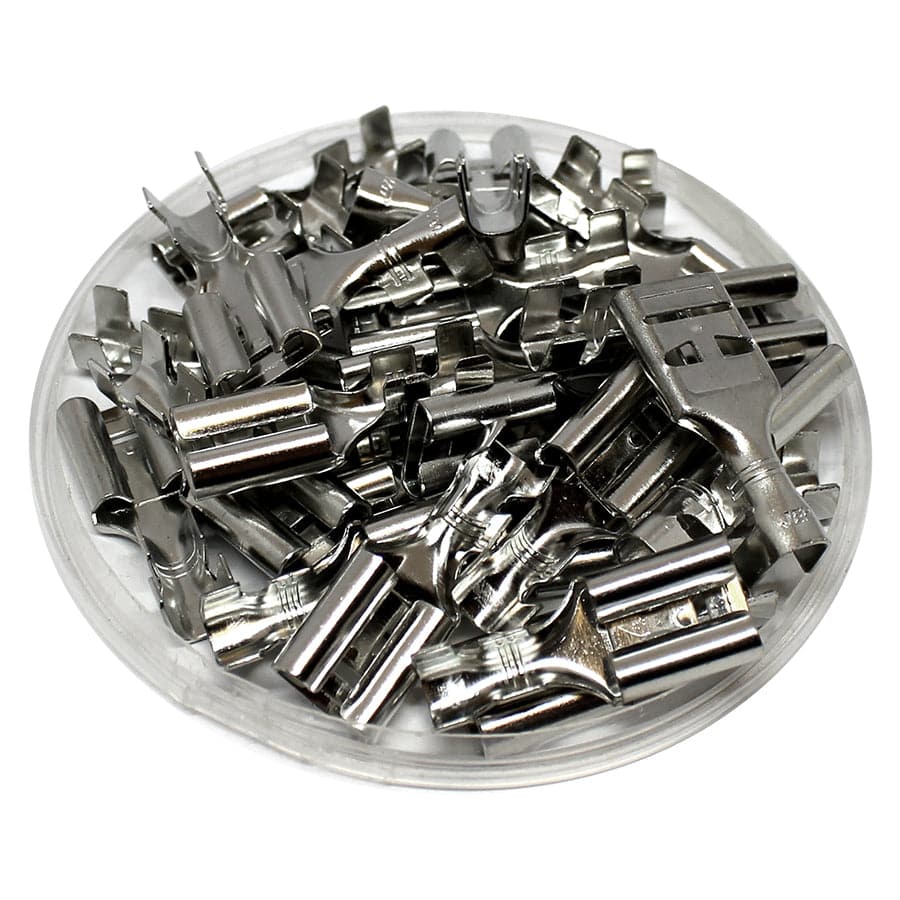

DJ621-D9.5x1.2D-T - 14 to 12 AWG Female Quick Disconnects, No Locking Tab, Open Barrel Style, 50 Pieces
OPEN BARREL STYLE FEMALE QUICK DISCONNECTS
Open barrel terminals (Faston B Type Terminals) have two sets of open "teeth" that bite down into the wire and insulation to secure and hold onto them. This gives a much tighter hold than a closed barrel terminal would, making it ideal for applications that would cause the wire to move around or be pulled often.
DIMENSIONS & SPECIFICATIONS:
| Wire Size: | 14 to 12 AWG |
| NEMA Tab: | 9.5 x 1.2mm (0.37" x 0.047") |
| Tab Type: | No Locking Tab |
| L: | 27mm (1.06") |
| W: | 11mm (0.43") |
| Material: | Tin Plated Brass |
| Surface Treatment: | Standard Chemical Treatment |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
DRAWING:
Cross References
Cross Reference Parts:
None
Documents
Click to view product spec sheet:
