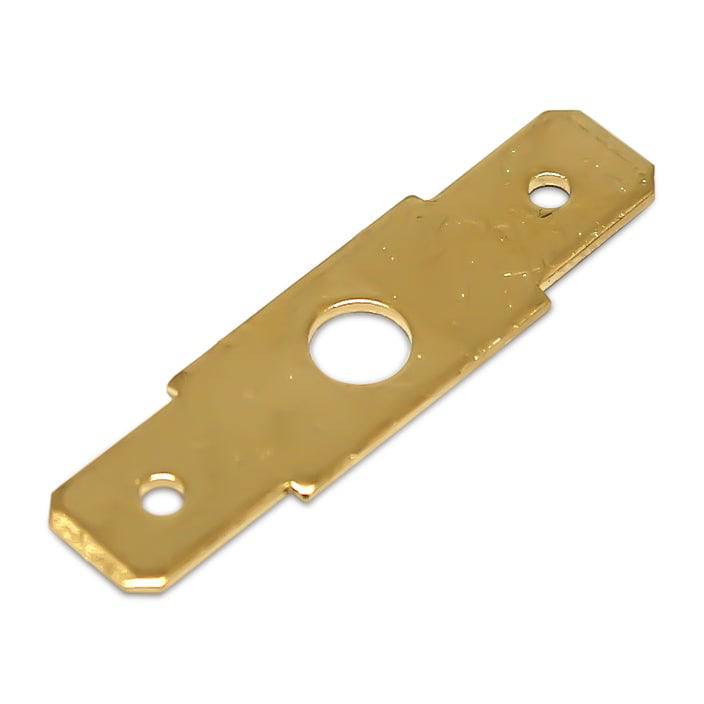

DJ6126A-6.3x0.8 - 6.3mm Tab Quick Connects Male Screw PCB Terminals, Brass, 100 Pieces
QUICK CONNECT SOLDER CONNECTORS
PCB quick connect male solder connector. The male tab fits into a female quick disconnect terminal. The solder tail attaches to your circuit board. Terminals with a built-in tab support prevent side-to-side motion during termination.
DIMENSIONS & FEATURES:
| NEMA Tab: | 6.3 x 0.8mm (0.250" x 0.031") |
| L: | 30.5mm (0.75") |
| W: | 6.3mm (0.25") |
| T: | 0.8mm (0.031") |
| Material: | Brass |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
DRAWING:
Cross References
Cross Reference Parts:
None
Documents
Click to view product spec sheet:
$5.22
DJ6126A-6.3x0.8 - 6.3mm Tab Quick Connects Male Screw PCB Terminals, Brass, 100 Pieces—
$5.22
