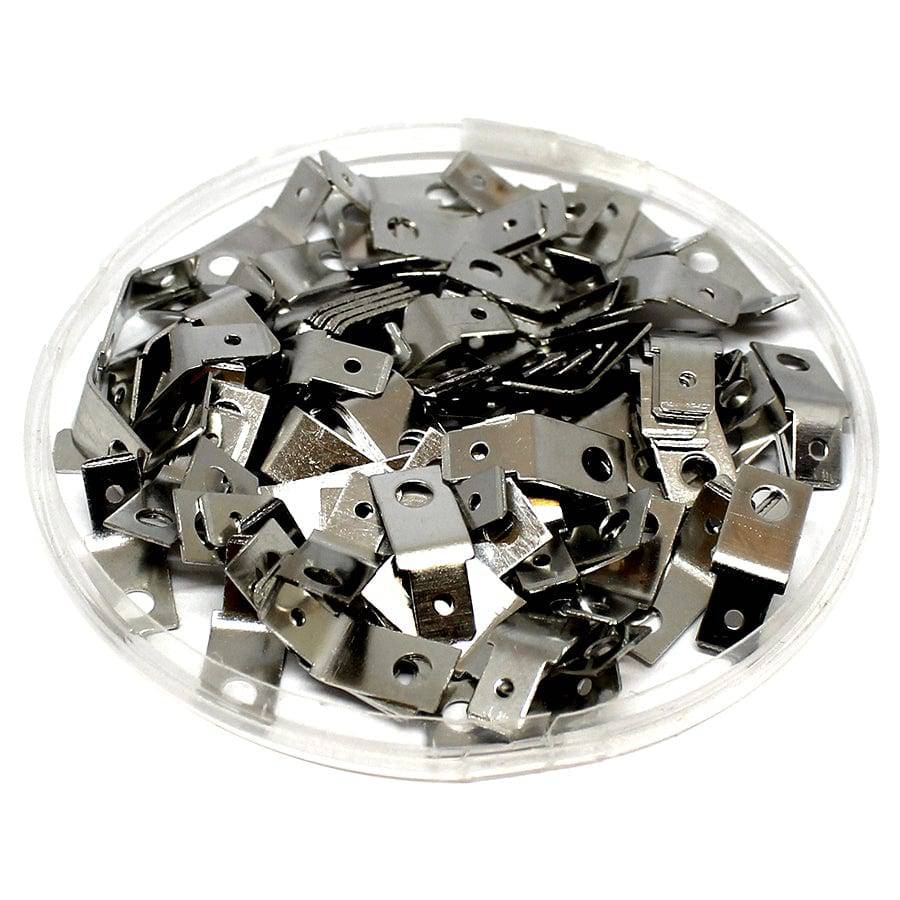

DJ613-4.8x0.5-T - Tin Plated Brass Quick Connect Male Solder Connectors, 4.8mm Tab, 100 pieces
QUICK CONNECT SOLDER CONNECTORS
PCB quick connect male solder connector. The male tab fits into a female quick disconnect terminal. The solder tail attaches to your circuit board. Terminals with a built-in tab support prevent side-to-side motion during termination.
DIMENSIONS & FEATURES:
| NEMA Tab: | 4.8 x 0.5mm (0.19" x 0.02") |
| L: | 16mm (0.62") |
| W: | 4.8mm (0.19") |
| T: | 0.5mm (0.02") |
| Material: | Brass |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
DRAWING:
Cross References
Cross Reference Parts:
None
Documents
Click to view product spec sheet:
$1.30
Original: $4.35
-70%DJ613-4.8x0.5-T - Tin Plated Brass Quick Connect Male Solder Connectors, 4.8mm Tab, 100 pieces—
$4.35
$1.30Product Information
