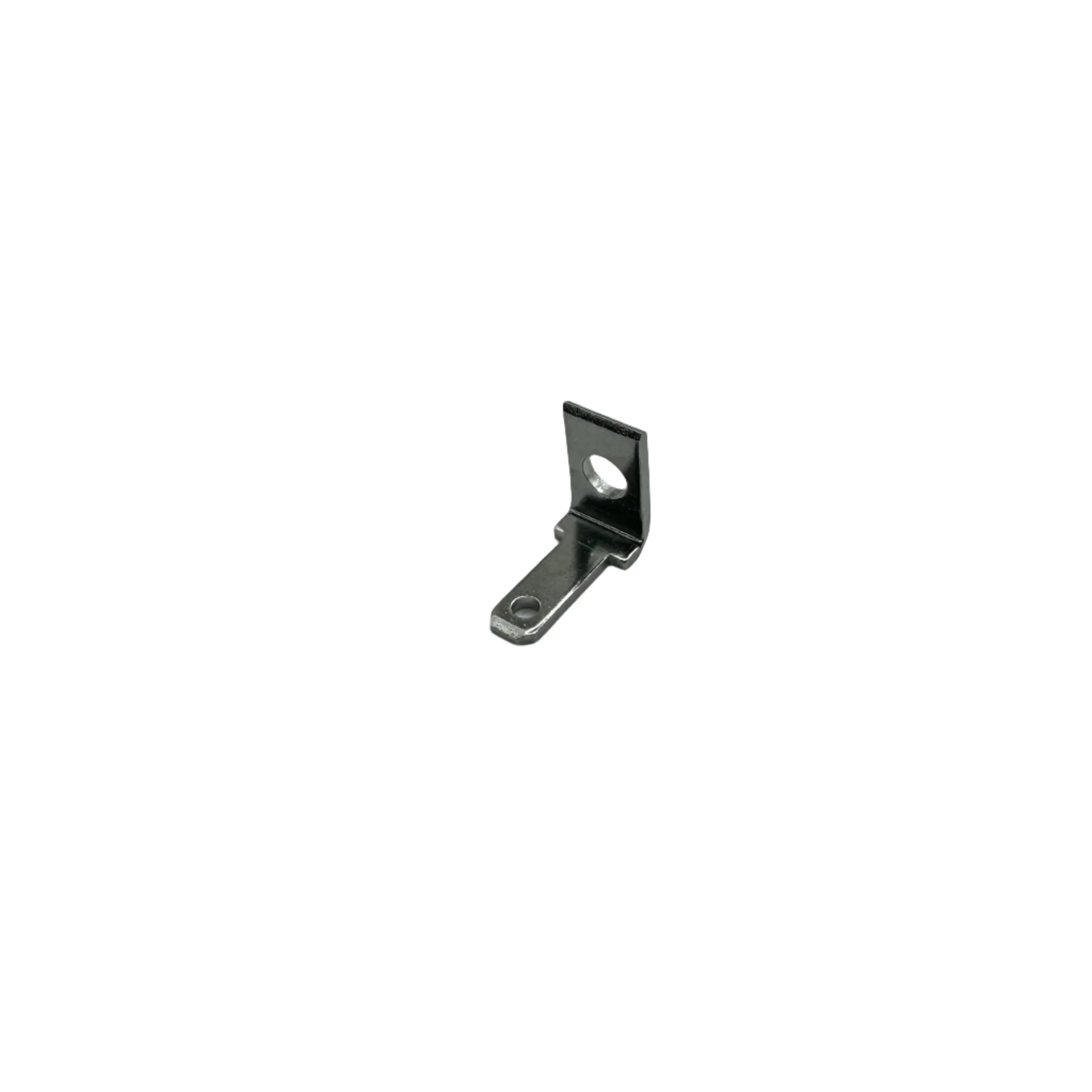

DJ610-L2.8x0.8-T - 2.8mm Rivet Mount Quick Fit Terminals, Tin Plated Brass, Quick Disconnects, 100 Pieces
QUICK CONNECT BRASS CONNECTORS
PCB quick connect male solder connector. The male tab fits into a female quick disconnect terminal. The solder tail attaches to your circuit board. Terminals with a built-in tab support prevent side-to-side motion during termination.
DIMENSIONS & FEATURES:
| NEMA Tab: | 2.8 x 0.8mm (0.11" x 0.031") |
| Length: | 9.5mm (0.37") |
| Width: | 2.8mm (0.11") |
| Thickness: | 0.8mm (0.031") |
| Material: | Tin Plated Brass |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
DRAWING:
Cross References
Cross Reference Parts:
None
Documents
Click to view product spec sheet:
$3.00
