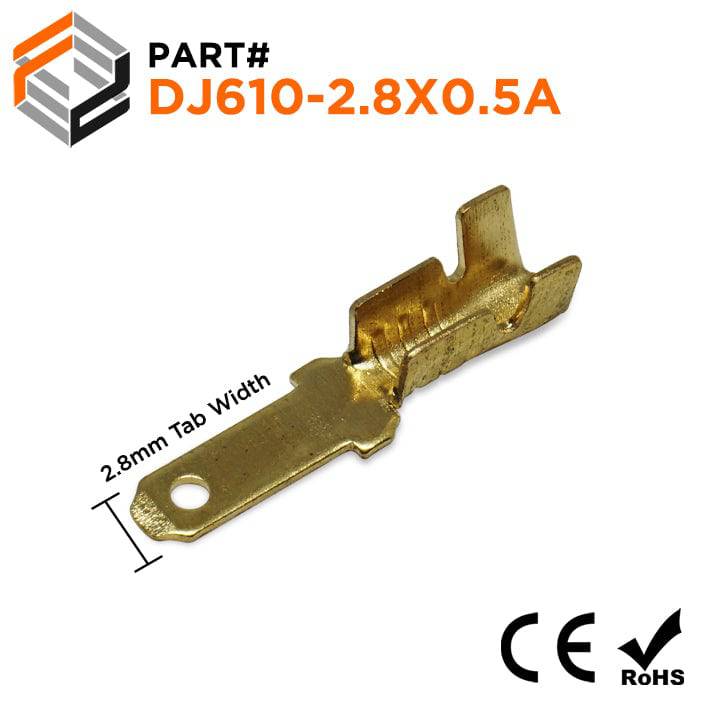

DJ610-2.8X0.5 - 22 to 16 AWG Male Open Barrel Quick Disconnects, No Locking Tab, 100 Pieces
Open barrel terminals (Faston B Type Terminals) have two sets of open "teeth" that bite down into the wire and insulation to secure and hold onto them. This gives a much tighter hold than a closed barrel terminal would, making it ideal for applications that would cause the wire to move around or be pulled often.
Dimensions & Features:
Product Drawing:
None
Dimensions & Features:
| Wire Size: | 22-16 AWG |
| NEMA Tab: | 2.8 x 0.5mm (0.11" x 0.019") |
| L: | 16.5mm (0.649") |
| W: | 2.85mm (0.112") |
| F: | 7.5mm (0.295") |
| H: | 0.5mm (0.019") |
| Material: | Untinned Brass |
| Surface Treatment: | Standard Chemical Treatment |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
Product Drawing:
Cross References
Cross Reference Parts:None
Documents
Click to view product spec sheet:Videos
Check out our YouTube channel!$0.12
Original: $0.40
-70%DJ610-2.8X0.5 - 22 to 16 AWG Male Open Barrel Quick Disconnects, No Locking Tab, 100 Pieces—
$0.40
$0.12Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
Open barrel terminals (Faston B Type Terminals) have two sets of open "teeth" that bite down into the wire and insulation to secure and hold onto them. This gives a much tighter hold than a closed barrel terminal would, making it ideal for applications that would cause the wire to move around or be pulled often.
Dimensions & Features:
Product Drawing:
None
Dimensions & Features:
| Wire Size: | 22-16 AWG |
| NEMA Tab: | 2.8 x 0.5mm (0.11" x 0.019") |
| L: | 16.5mm (0.649") |
| W: | 2.85mm (0.112") |
| F: | 7.5mm (0.295") |
| H: | 0.5mm (0.019") |
| Material: | Untinned Brass |
| Surface Treatment: | Standard Chemical Treatment |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
Product Drawing:
