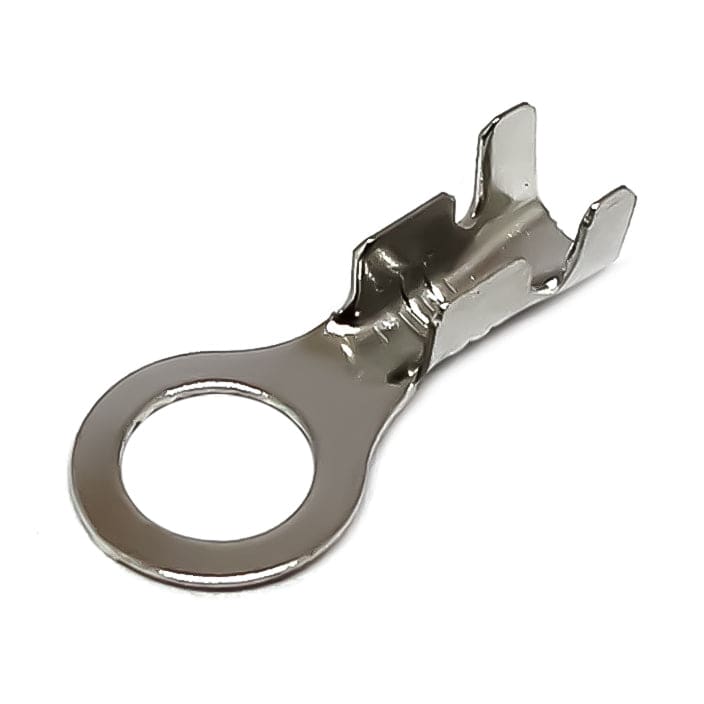

Product image 1
HomeStore

DJ4311-5.2B-T - 18 to 16 AWG Ring Terminals, #10 Stud, Tin Plated Brass, Open Barrel, 100 Pieces

DJ4311-5.2B-T - 18 to 16 AWG Ring Terminals, #10 Stud, Tin Plated Brass, Open Barrel, 100 Pieces

OPEN BARREL STYLE RING TERMINALS

Open barrel terminals have two sets of open "teeth" that bite down into the wire and insulation to secure and hold onto them. This gives a much tighter hold than a closed barrel terminal would, making it ideal for applications that would cause the wire to move around or be pulled often.

DIMENSIONS & FEATURES:

Wire Size: 18 to 16 AWG
Stud Size: #10 Stud (5.2mm)
W: 8.0mm (0.31")
D: 5.2mm (0.20")
E: 16mm (0.63")
Material: Tin Plated Brass
Surface Treatment: Standard Chemical Treatment
CE Certified: Yes
RoHS Compliant: Yes


DRAWING:


Cross References

Cross Reference Parts:
None

Documents

Click to view product spec sheet:




$4.35
DJ4311-5.2B-T - 18 to 16 AWG Ring Terminals, #10 Stud, Tin Plated Brass, Open Barrel, 100 Pieces—
$4.35

Product Information

Shipping & Returns

Description

OPEN BARREL STYLE RING TERMINALS

Open barrel terminals have two sets of open "teeth" that bite down into the wire and insulation to secure and hold onto them. This gives a much tighter hold than a closed barrel terminal would, making it ideal for applications that would cause the wire to move around or be pulled often.

DIMENSIONS & FEATURES:

Wire Size: 18 to 16 AWG
Stud Size: #10 Stud (5.2mm)
W: 8.0mm (0.31")
D: 5.2mm (0.20")
E: 16mm (0.63")
Material: Tin Plated Brass
Surface Treatment: Standard Chemical Treatment
CE Certified: Yes
RoHS Compliant: Yes


DRAWING:


Cross References

Cross Reference Parts:
None

Documents

Click to view product spec sheet:
