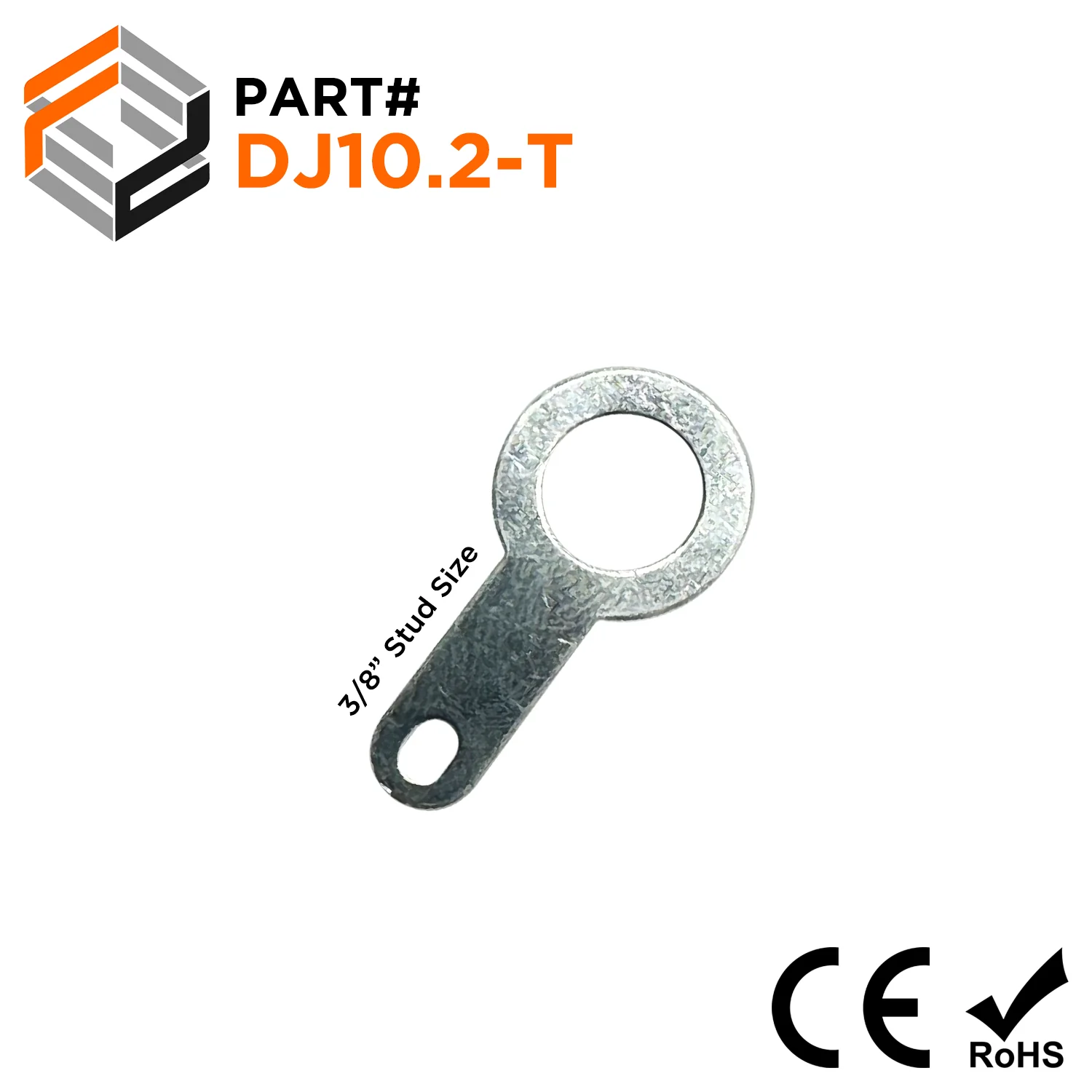

DJ10.2-T Tin Plated Brass Earthing Washer, 3/8" Stud, 100 Pieces
EARTHING WASHERS
Tin plated brass earthing washers are suitable for audio/video, energy and industrial, semiconductor, and test and measurement applications.
DIMENSIONS & SPECIFICATIONS:
| Accessory Type: | Earthing Washer |
| Stud Size: | 3/8" (10mm) |
| A: | 0.63" (16.0mm) |
| B: | 0.39" (10.0mm) |
| C: | 0.15" (3.9mm) |
| L: | 0.02" (0.47mm) |
| N: | 1.22" (30.9mm) |
| Material: | Tin Plated Brass |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
DRAWING:
Cross References
Cross Reference Parts:
None
Documents
Click to view product spec sheet:
$8.25
DJ10.2-T Tin Plated Brass Earthing Washer, 3/8" Stud, 100 Pieces—
$8.25
