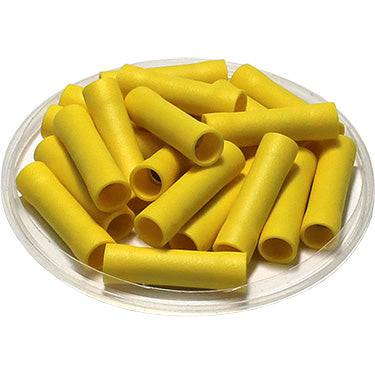

BVS5 - 12 to 10 AWG Vinyl PVC Insulated Butt Splice Connectors, Flared, 50 Pieces
Insulated butt splice connectors insulate and protect the electrical connections from wire pull-outs, abrasion and mechanical abuse. Butt splice connectors must be crimped on both ends to work effectively.
Dimensions & Features:
Product Drawing:
None
Click to view product spec sheet:
Dimensions & Features:
| Wire Size: | 12-10 AWG |
| Color: | Yellow |
| L: | 26.5mm (1.04") |
| D: | 6.3mm (0.25") |
| D1: | 3.4mm (0.13") |
| Material: | Brass |
| Max Electrical Rating: | 75°C - 300 Volts |
| Max Electrical Current: | 24A |
| UL Approved: | Yes |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
Product Drawing:
Cross References
Cross Reference Parts:None
Documents
Click to view product spec sheet:
Videos
Check out our YouTube channel!$6.37
BVS5 - 12 to 10 AWG Vinyl PVC Insulated Butt Splice Connectors, Flared, 50 Pieces—
$6.37
