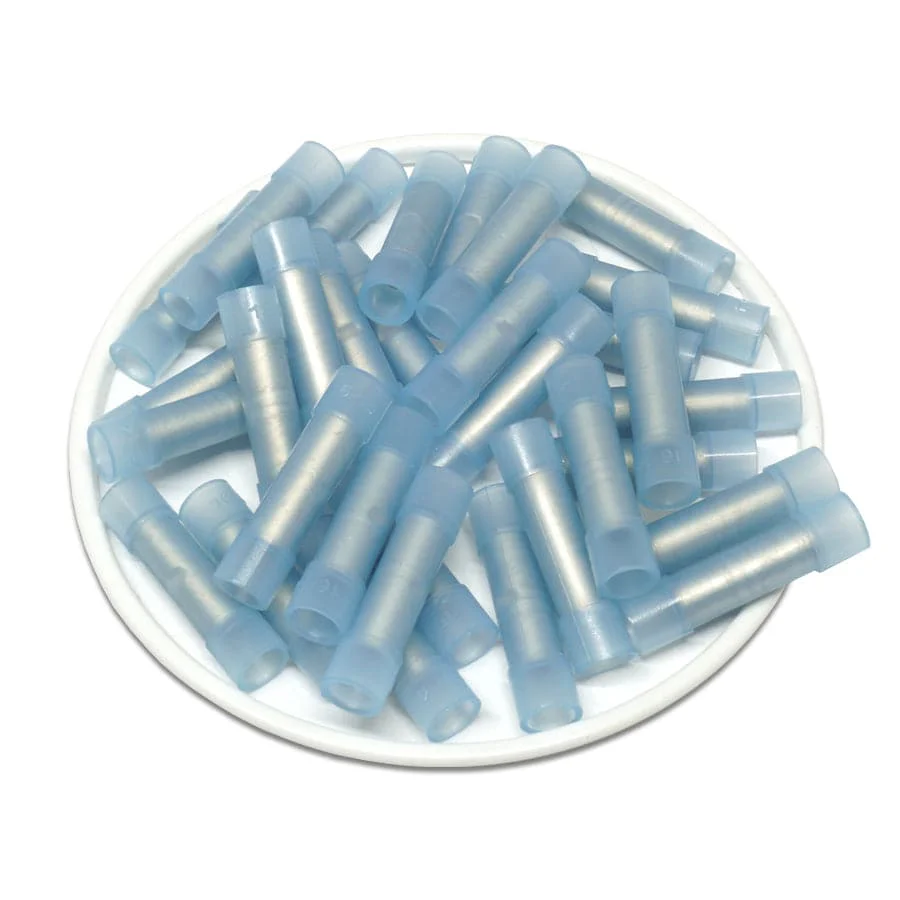

BNYTF2 - 16 to 14 AWG Nylon Insulated Butt Splice Connectors, Standard/Flared, 100 Pieces
Insulated butt splice connectors insulate and protect the electrical connections from wire pull-outs, abrasion and mechanical abuse. Butt splice connectors must be crimped on both ends to work effectively.
Dimensions & Features:
Product Drawing:
None
Dimensions & Features:
| Wire Size: | 16-14 AWG |
| Color: | Blue |
| L: | 25.2mm (0.99") |
| D: |
4.5mm (0.17") |
| D1: | 2.3mm (0.09") |
| Barrel: | Seamless |
| Configuration: | Flared |
| Material: | Tin Plated Copper |
| Insulation: | Nylon |
| Max Electrical Rating: | 105°C - 600 Volts |
| Max Electrical Current: | 30 AMP |
| UL Recognized: | Yes |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
Product Drawing:
Cross References
Cross Reference Parts:None
Documents
Click to view product spec sheet:Videos
Check out our YouTube channel!$3.70
Original: $12.32
-70%BNYTF2 - 16 to 14 AWG Nylon Insulated Butt Splice Connectors, Standard/Flared, 100 Pieces—
$12.32
$3.70Product Information
