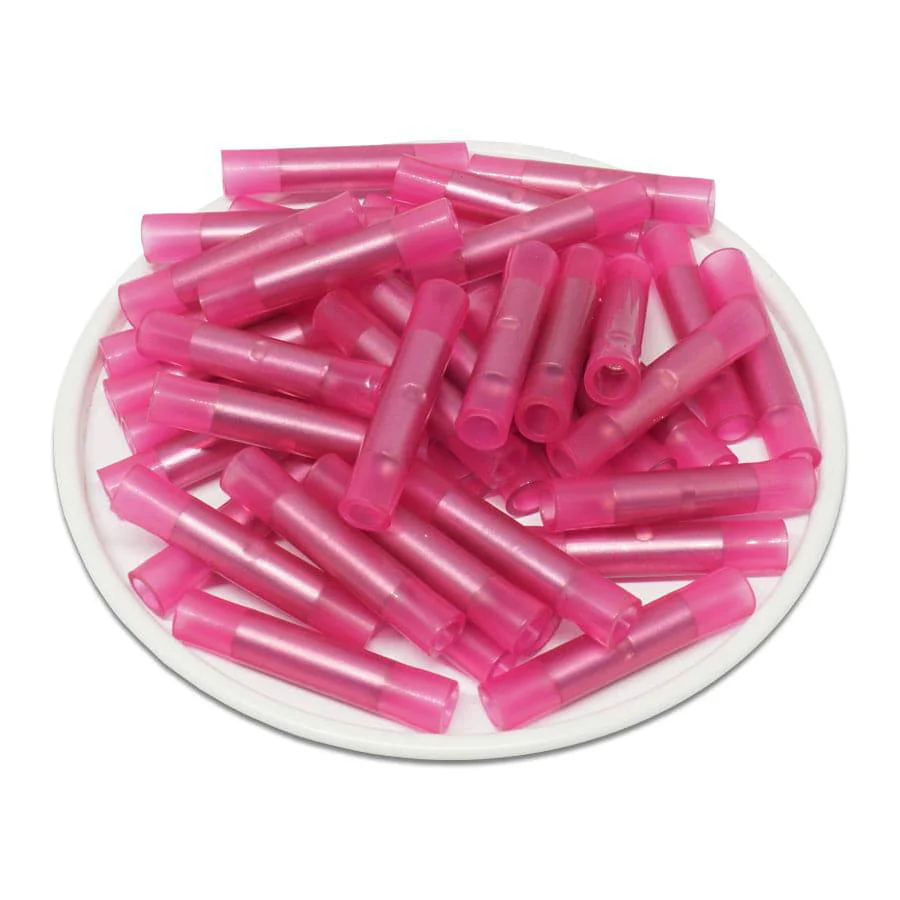

BNYTF1 - 22 to 16 AWG Nylon Insulated Butt Splice Connectors, Standard/Flared, 100 Pieces
Insulated butt splice connectors insulate and protect the electrical connections from wire pull-outs, abrasion and mechanical abuse. Butt splice connectors must be crimped on both ends to work effectively.
Dimensions & Features:
Product Drawing:
None
Dimensions & Features:
| Wire Size: | 22-16 AWG |
| Color: | Red |
| L: | 25.2mm (0.99") |
| D: |
4mm (0.15") |
| D1: | 1.7mm (0.06") |
| Barrel: | Seamless |
| Configuration: | Flared |
| Material: | Tin Plated Copper |
| Insulation: | Nylon |
| Max Electrical Rating: | 105°C - 600 Volts |
| Max Electrical Current: | 18 AMP |
| UL Recognized: | Yes |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
Product Drawing:
Cross References
Cross Reference Parts:None
Documents
Click to view product spec sheet:Videos
Check out our YouTube channel!$3.83
Original: $12.77
-70%BNYTF1 - 22 to 16 AWG Nylon Insulated Butt Splice Connectors, Standard/Flared, 100 Pieces—
$12.77
$3.83Product Information
