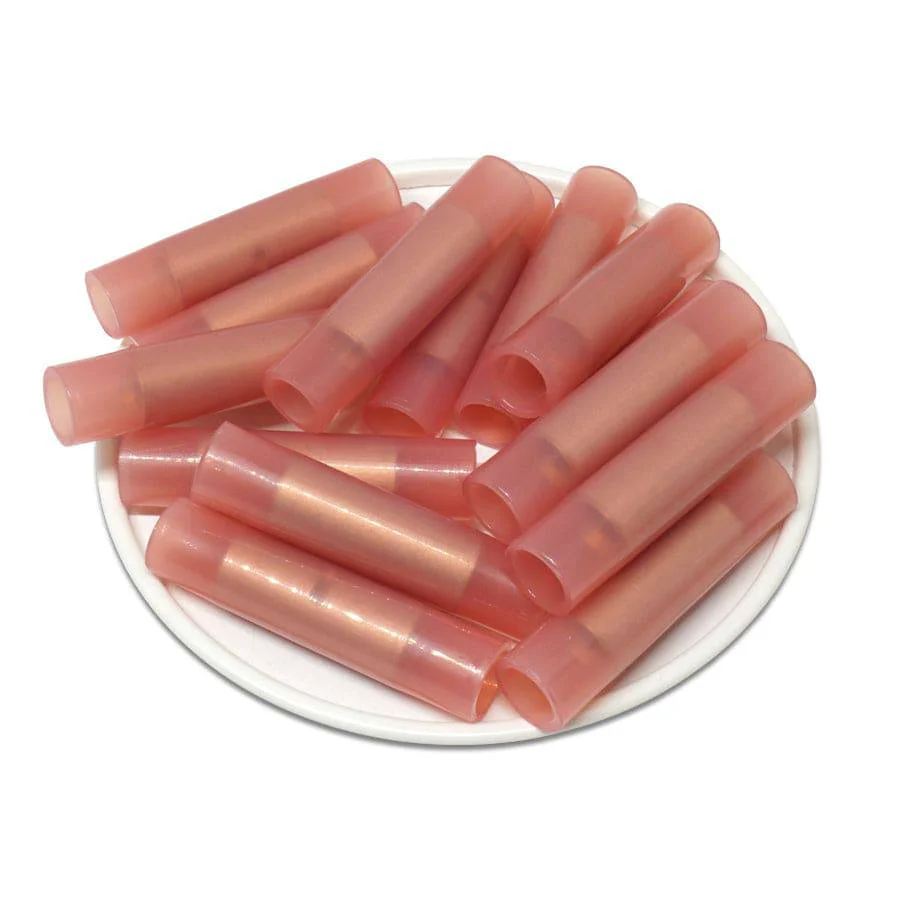

BNYT8 - 8 AWG Nylon Insulated Butt Splice Connectors, Straight, 25 Pieces
Insulated butt splice connectors insulate and protect the electrical connections from wire pull-outs, abrasion and mechanical abuse. Butt splice connectors must be crimped on both ends to work effectively.
Dimensions & Features:
Product Drawing:
None
Dimensions & Features:
| Wire Size: | 8 AWG |
| Color: | Red |
| L: | 37mm (1.46") |
| D: |
6.9mm (0.27") |
| D1: | 4.6mm (0.18") |
| Barrel: | Seamless |
| Configuration: | Straight |
| Material: | Tin Plated Copper |
| Insulation: | Nylon |
| Max Electrical Rating: | 105°C - 600 Volts |
| Max Electrical Current: | 70 AMP |
| UL Recognized: | Yes |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
Product Drawing:
Cross References
Cross Reference Parts:None
Documents
Click to view product spec sheet:Videos
Check out our YouTube channel!$3.71
Original: $12.38
-70%BNYT8 - 8 AWG Nylon Insulated Butt Splice Connectors, Straight, 25 Pieces—
$12.38
$3.71Product Information
