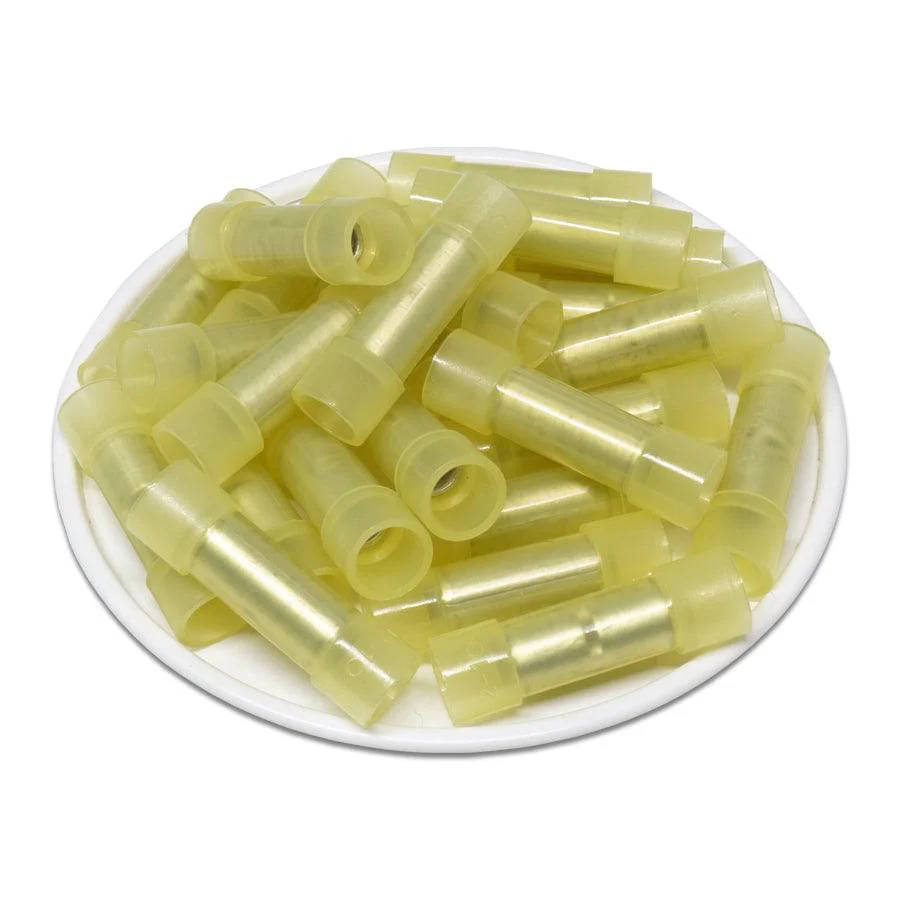

BNYFS5 - 12 to 10 AWG Nylon Insulated Butt Splice Connectors, Flared, 50 Pieces
Insulated butt splice connectors insulate and protect the electrical connections from wire pull-outs, abrasion and mechanical abuse. Butt splice connectors must be crimped on both ends to work effectively.
Dimensions & Features:
Product Drawing:
None
Dimensions & Features:
| Wire Size: | 12-10 AWG |
| Color: | Yellow |
| L: | 28.2mm (1.11") |
| D: |
6.3mm (0.24") |
| D1: | 3.3mm (0.12") |
| Crimp Type: | Standard |
| Configuration: | Flared |
| Material: | Brass |
| Insulation: | Nylon |
| Seam: | Butted |
| Max Electrical Rating: | 105°C - 300 Volts |
| Max Electrical Current: | 24 AMP |
| UL Recognized: | Yes |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
Product Drawing:
Cross References
Cross Reference Parts:None
Documents
Click to view product spec sheet:Videos
