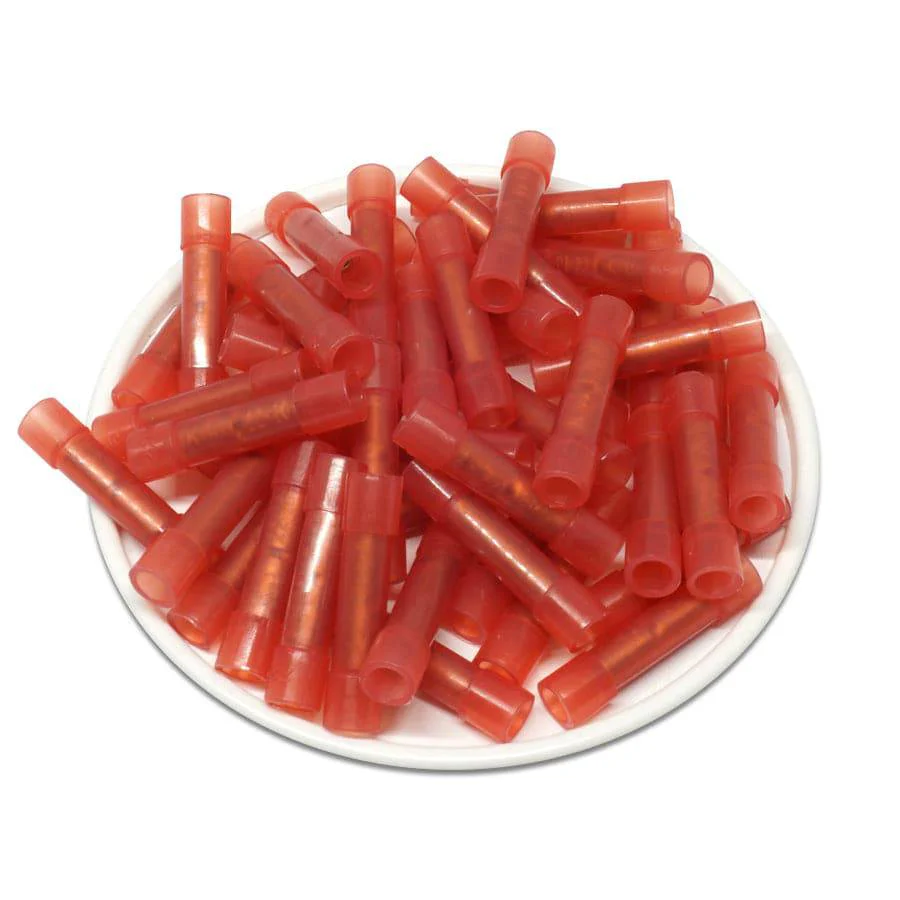

BNYFS1 - 22 to 16 AWG Nylon Insulated Butt Splice Connectors, Flared, 100 Pieces
Insulated butt splice connectors insulate and protect the electrical connections from wire pull-outs, abrasion and mechanical abuse. Butt splice connectors must be crimped on both ends to work effectively.
Dimensions & Features:
Product Drawing:
None
Dimensions & Features:
| Wire Size: | 22-16 AWG |
| Color: | Red |
| L: | 25.2mm (0.99") |
| D: |
4mm (0.16") |
| D1: | 2.25mm (0.089") |
| Crimp Type: | Standard |
| Configuration: | Flared |
| Material: | Brass |
| Insulation: | Nylon |
| Seam: | Butted |
| Max Electrical Rating: | 105°C - 300 Volts |
| Max Electrical Current: | 10 AMP |
| UL Recognized: | Yes |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
Product Drawing:
Cross References
Cross Reference Parts:None
Documents
Click to view product spec sheet:Videos
Check out our YouTube channel!$2.07
Original: $6.89
-70%BNYFS1 - 22 to 16 AWG Nylon Insulated Butt Splice Connectors, Flared, 100 Pieces—
$6.89
$2.07Product Information
