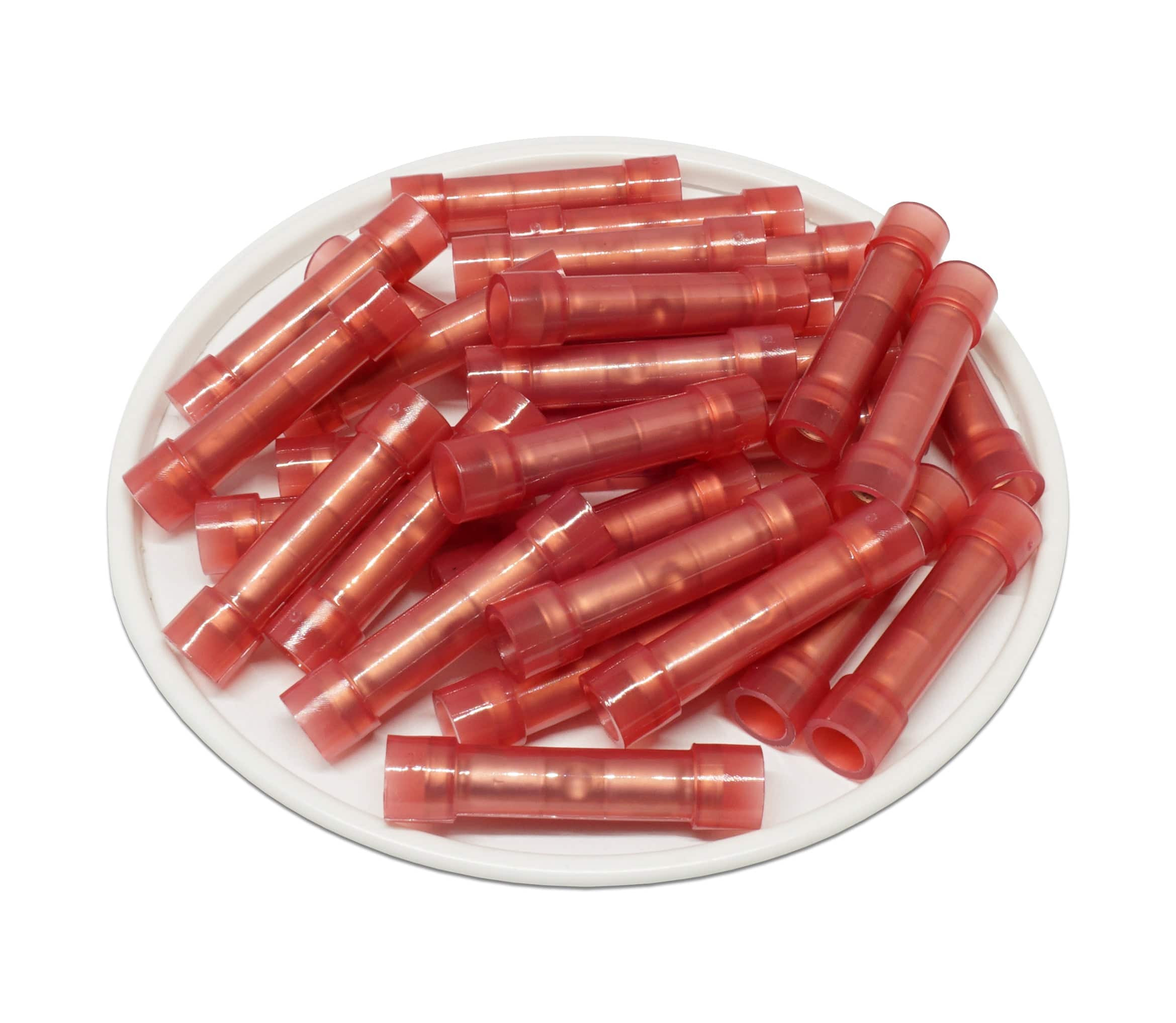

BNYDF1 - 22 to 16 AWG Nylon Insulated Butt Splice Connectors, Double Crimp/Flared, 50 Pieces
Insulated butt splice connectors insulate and protect the electrical connections from wire pull-outs, abrasion and mechanical abuse. Butt splice connectors must be crimped on both ends to work effectively.
Dimensions & Features:
Product Drawing:
None
Dimensions & Features:
| Wire Size: | 22-16 AWG |
| Color: | Red |
| L: | 26mm (1.02") |
| D: |
4.5mm (0.17") |
| D1: | 1.8mm (0.07") |
| Crimp Type: | Double |
| Configuration: | Flared |
| Material: | Copper |
| Insulation: | Nylon |
| Seam: | Seamless |
| Max Electrical Rating: | 105°C - 600 Volts |
| Max Electrical Current: | 18 AMP |
| UL Recognized: | Yes |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
Product Drawing:
Cross References
Cross Reference Parts:None
Documents
Click to view product spec sheet:Videos
Check out our YouTube channel!$3.03
Original: $10.10
-70%BNYDF1 - 22 to 16 AWG Nylon Insulated Butt Splice Connectors, Double Crimp/Flared, 50 Pieces—
$10.10
$3.03Product Information
