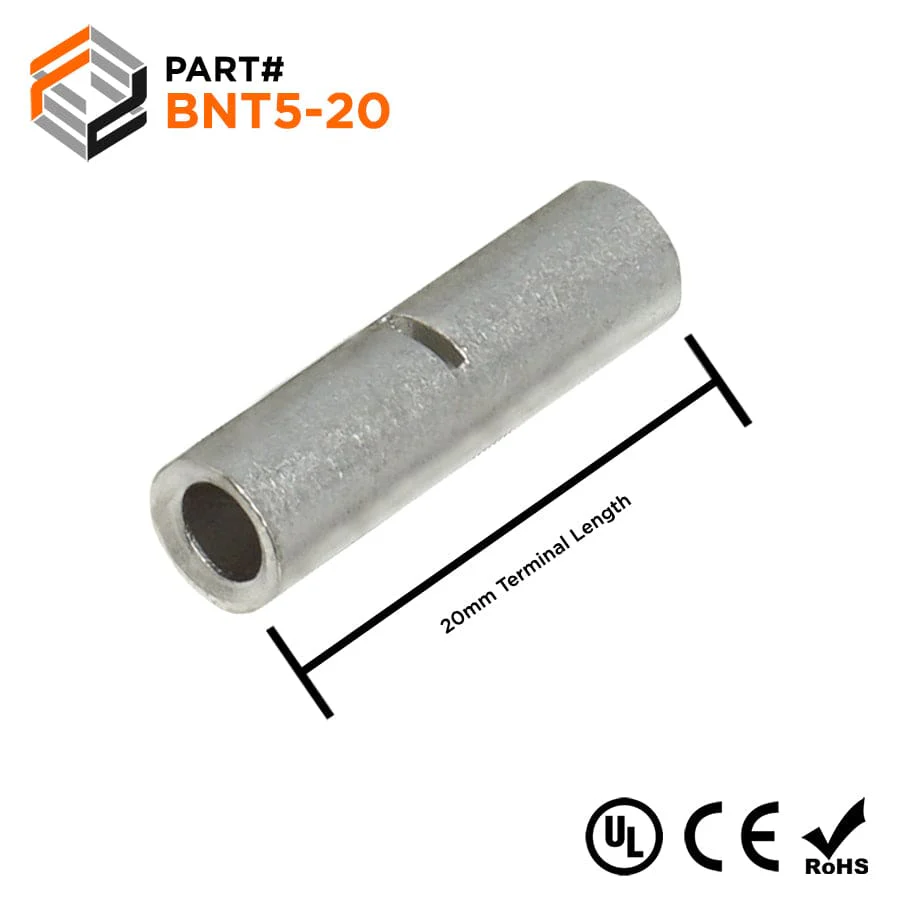

12-10 AWG Non Insulated Butt Splice Connectors, 13/16" Length, UL Approved, 25 Pieces - BNT5-20
NON INSULATED BUTT SPLICE CONNECTORS
Non Insulated butt splice connectors protect the electrical connections from wire pull-outs, abrasion and mechanical abuse. Butt splice connectors must be crimped on both ends to work effectively. For use with copper wires only.Dimensions & Features:
| Wire Size: | 12-10 AWG |
| L: | 20mm (0.79") |
| D: |
5.4mm (0.21") |
| D1: | 3.4mm (0.13") |
| Barrel: | Seamless |
| Configuration: | Straight |
| Material: | Tin Plated Copper |
| Max Electrical Current: | 50 AMP |
| UL Recognized: | Yes |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
Product Drawing:
Cross References
Cross Reference Parts:None
Documents
Click to view product spec sheet:
Videos
Check out our YouTube channel!
$19.78
