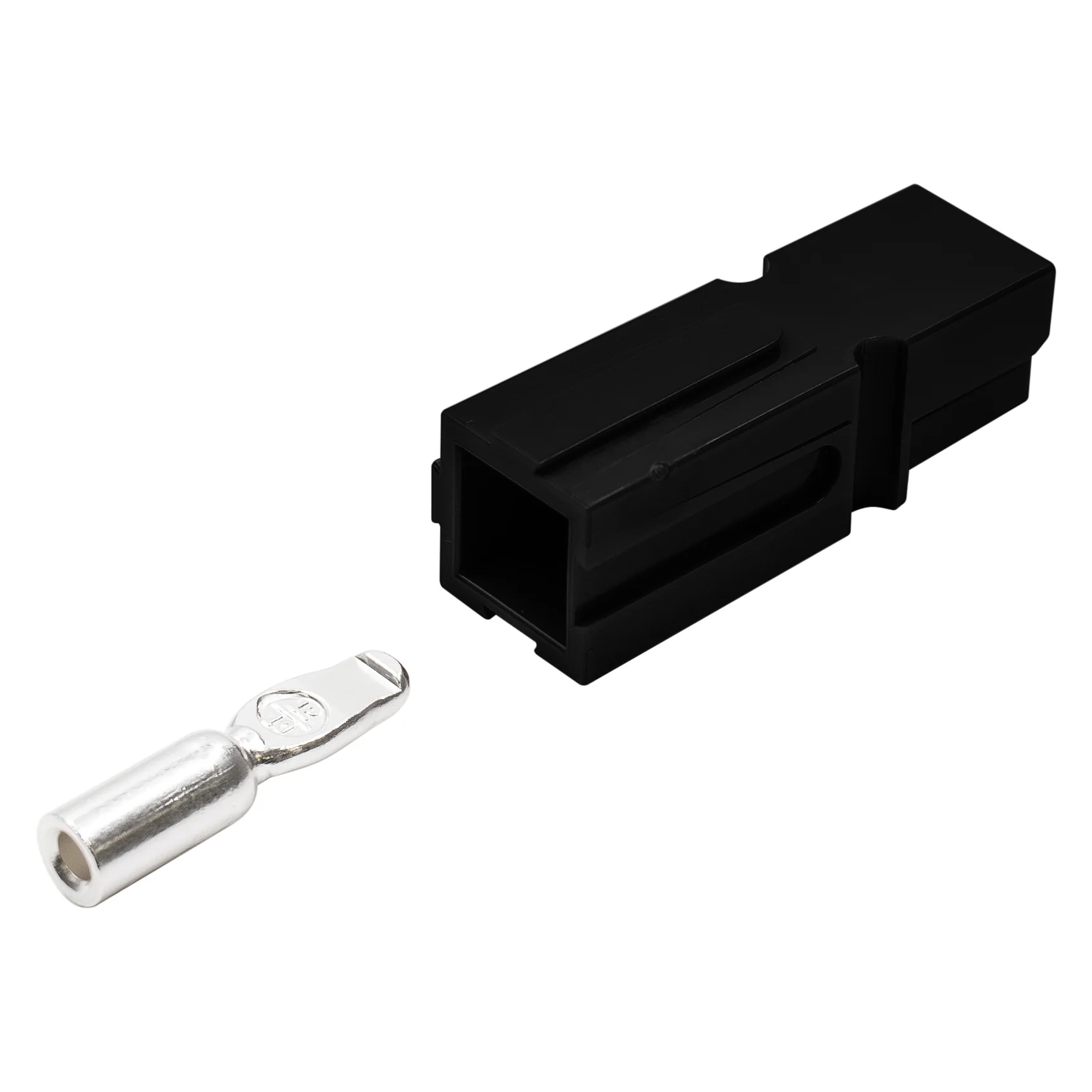

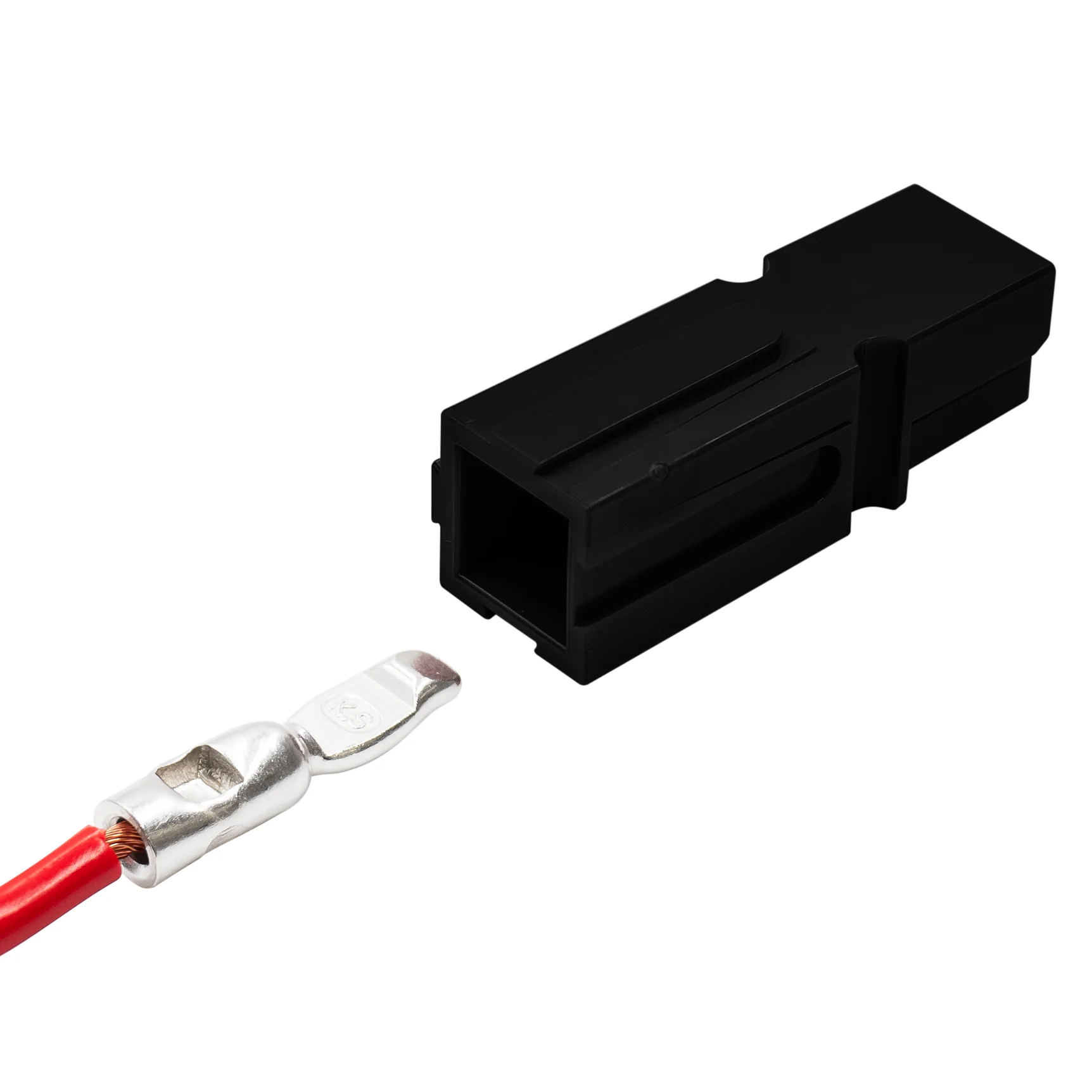

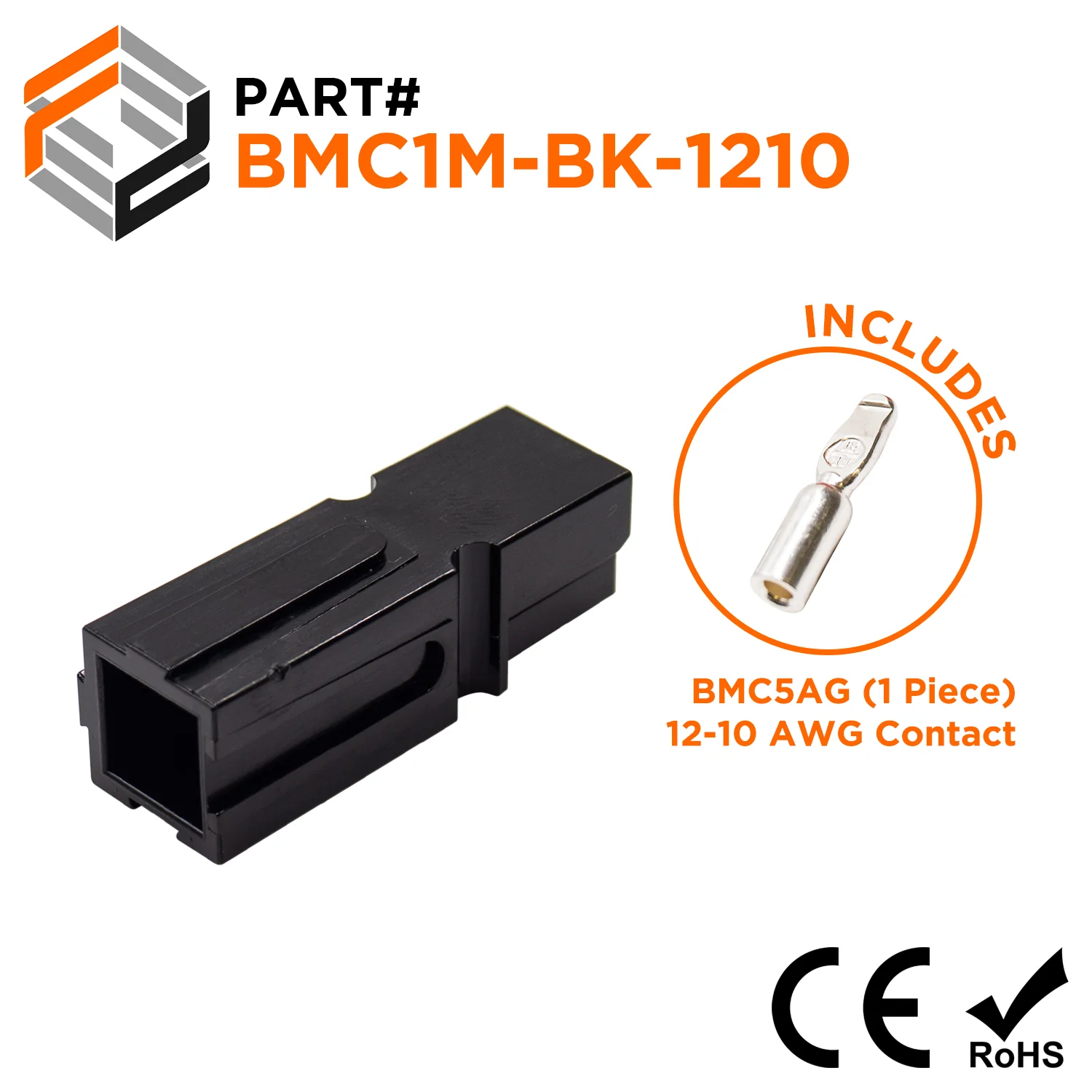

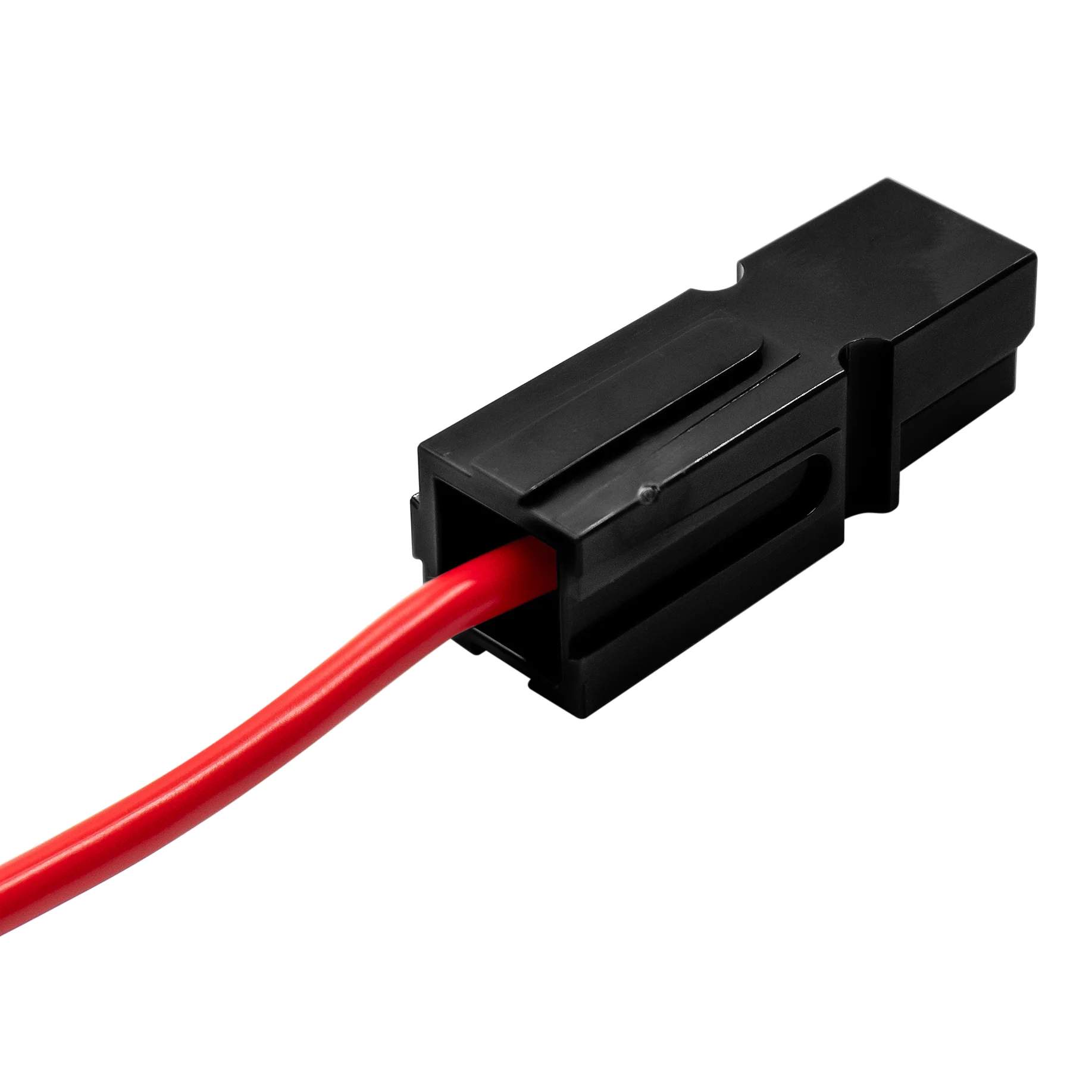

BMC1M-BK-1210 - Battery Connection Kit - Includes BMC1M-BK + BMC5AG (1 Piece)
Battery connector kits are essential components for establishing secure and efficient electrical connections between batteries and various electrical systems or devices. The most common application is in automation, connecting a battery to a vehicle's electrical system.
BMC1M-BK Dimensions & Features:
| Wire Range: | 16-06 AWG |
| Color | Black |
| L | 1.90" (48mm) |
| W: | 0.53" (13.5mm) |
| H: | 0.63" (17mm) |
| Spring Material: | Stainless Steel |
| Housing Material: | Polycarbonate (PC) |
| Temperature Range: | -20°C to 125°C |
| AMP Rating: | 75AMP |
| UL Recognized: | Yes |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
Product Drawing:
BMC5AG Dimensions & Features:
| Wire Range: | 12-10 AWG |
| L | 1.19" (30.3mm) |
| E | 0.47" (12.0mm) |
| D1: | 0.14" (3.67mm) |
| D: | 0.28" (7.1mm) |
| Terminal Material: | Copper |
| Terminal Plating: | Silver |
| Current Rating: | 50A |
| UL Recognized: | Yes |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
Product Drawing:
Cross References
Cross Reference Parts:None
Documents
Click to view product spec sheet:
Videos
Click below to check out our YouTube channel!
