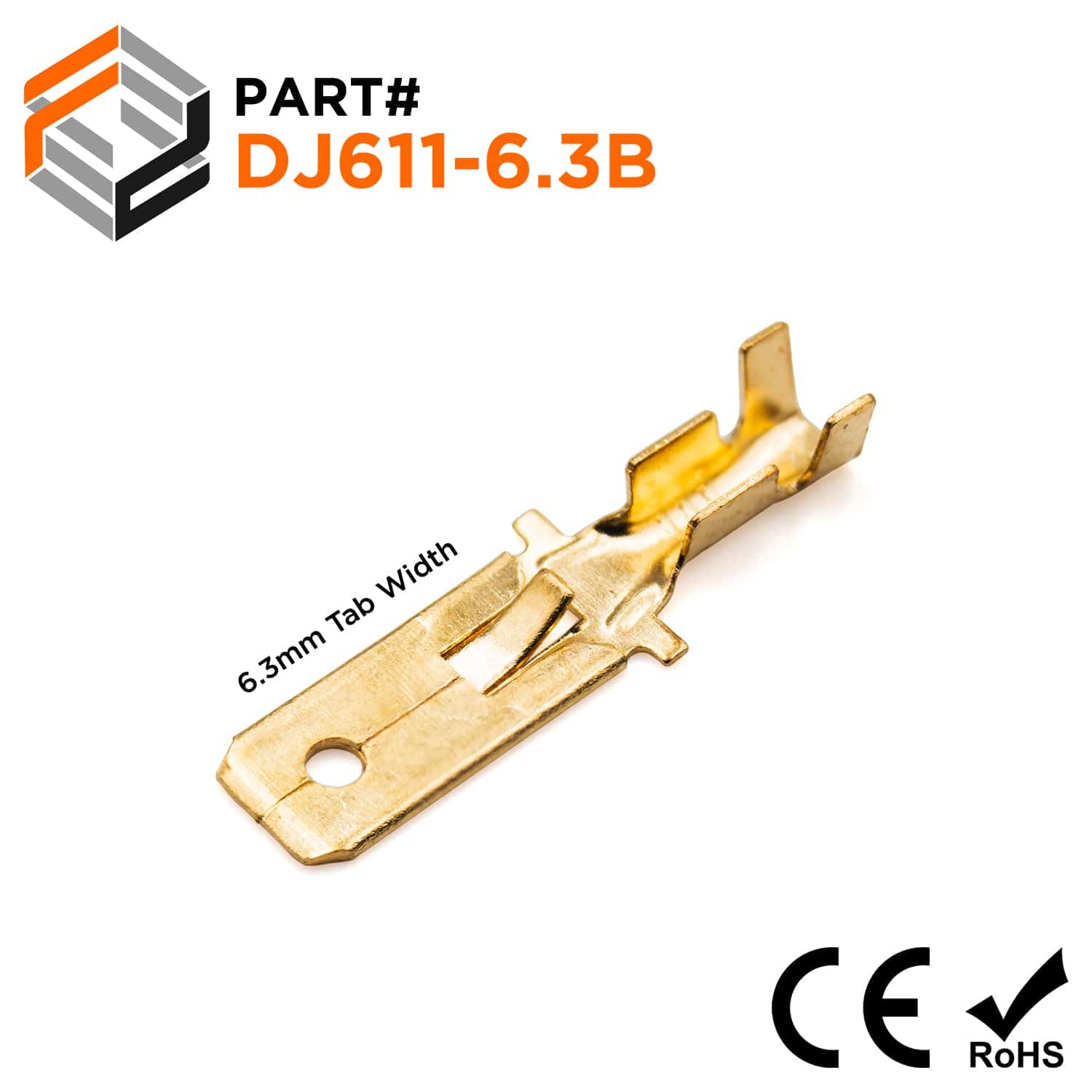

DJ611-6.3B - 18 to 16 AWG Quick Disconnects, Male, Lock Tab, NEMA Tab: 6.3, Brass, Open Barrel, 100 Pieces
Open barrel terminals (Faston B Type Terminals) have two sets of open "teeth" that bite down into the wire and insulation to secure and hold onto them. This gives a much tighter hold than a closed barrel terminal would, making it ideal for applications that would cause the wire to move around or be pulled often.
Dimensions & Features:
Product Drawing:
None
Dimensions & Features:
| Wire Size: | 18-16 AWG |
| NEMA Tab: | 6.35 x 0.8mm (0.250" x 0.031") |
| L: | 25mm (0.98") |
| W: | 6.35mm (0.25") |
| T: | 0.8mm (0.031") |
| Material: | Brass |
| Surface Treatment: | Standard Chemical Treatment |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
Product Drawing:
Cross References
Cross Reference Parts:None
Documents
Click to view product spec sheet:Videos
Check out our YouTube channel!$1.59
