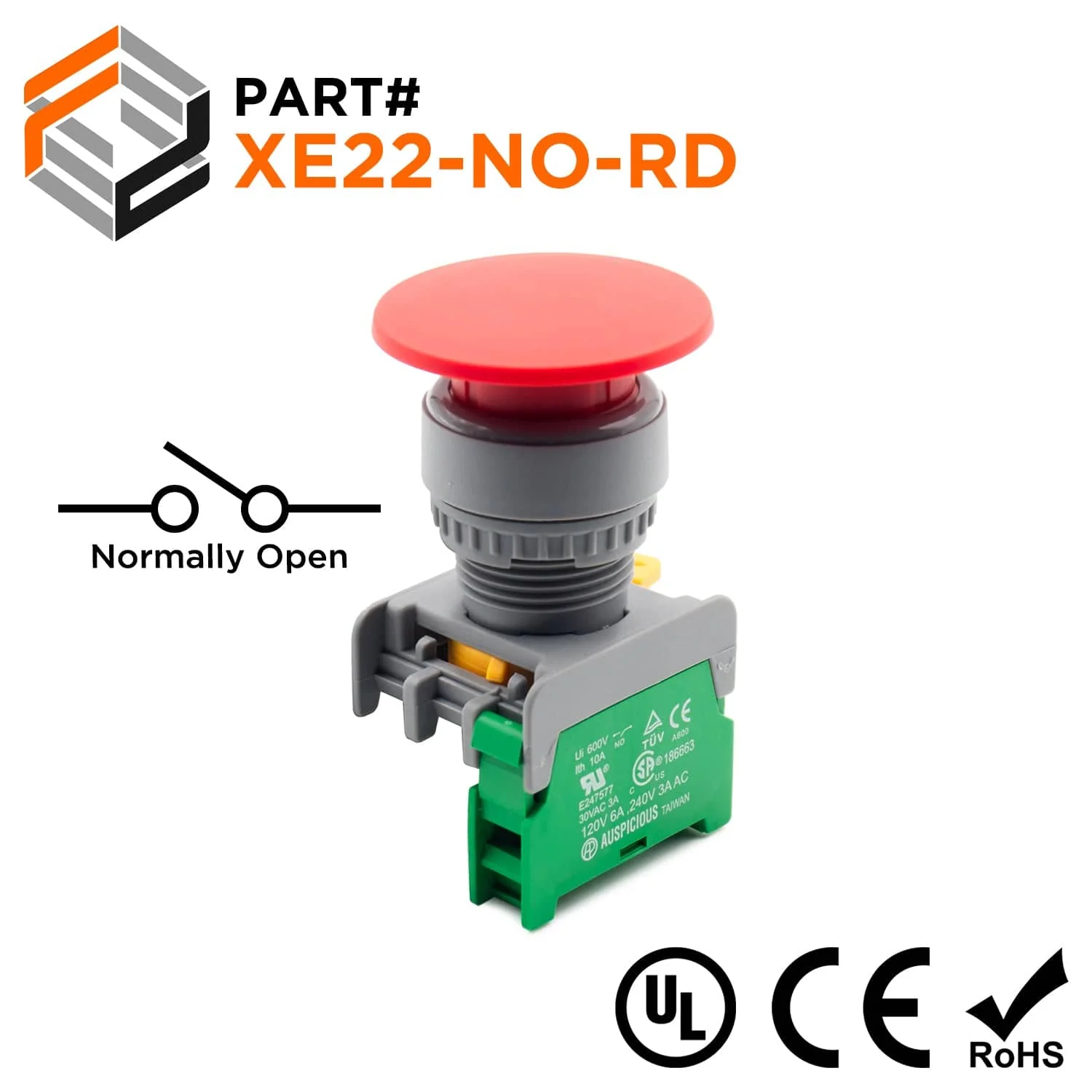

XE22-NO-RD - 40mm Mushroom Head Push Button, Red, (NO), 1 Piece
A push button switch consists of a simple electric switch mechanism which controls some aspect of a machine or process.
Dimensions & Features:
None
Dimensions & Features:
| Type: |
40mm Mushroom Head |
| Mounting Hole Size: | 22mm |
| Color: | Red |
| Type of Contact: |
(NO) Normally Open |
| Number of Contacts: | 1 |
| Voltage Rating: |
110V, 6AMP - 120V, 6AMP - 240v, 3AMP |
| Short Circuit Current: |
1000A |
| Rated Insulation Voltage (Ui): |
600v |
| Thermal Current (Ith): |
10A, 50/60Hz |
| Mechanical Life (Block): |
1 Million Operations |
| Mechanical Life (Actuator): | 1 Million Operations |
| Enclosure Material: | Reinforced Thermoplastic |
| Contact Material: | Silver |
| Contact Resistance: |
50mΩ max (initial) |
| Protection Degree: | IP65 |
| Ambient Temperature: |
-4°F to 140°F [-20°C to 60°C] |
| Operating Temperature: | -25°C to 70°C |
| Approvals: |
UL, CSA, CE, TUV |
| UL File #: |
E247577 |
| CSA #: |
1689803 |
| RoHS Compliant: | Yes |
Cross References
Cross Reference Parts:None
