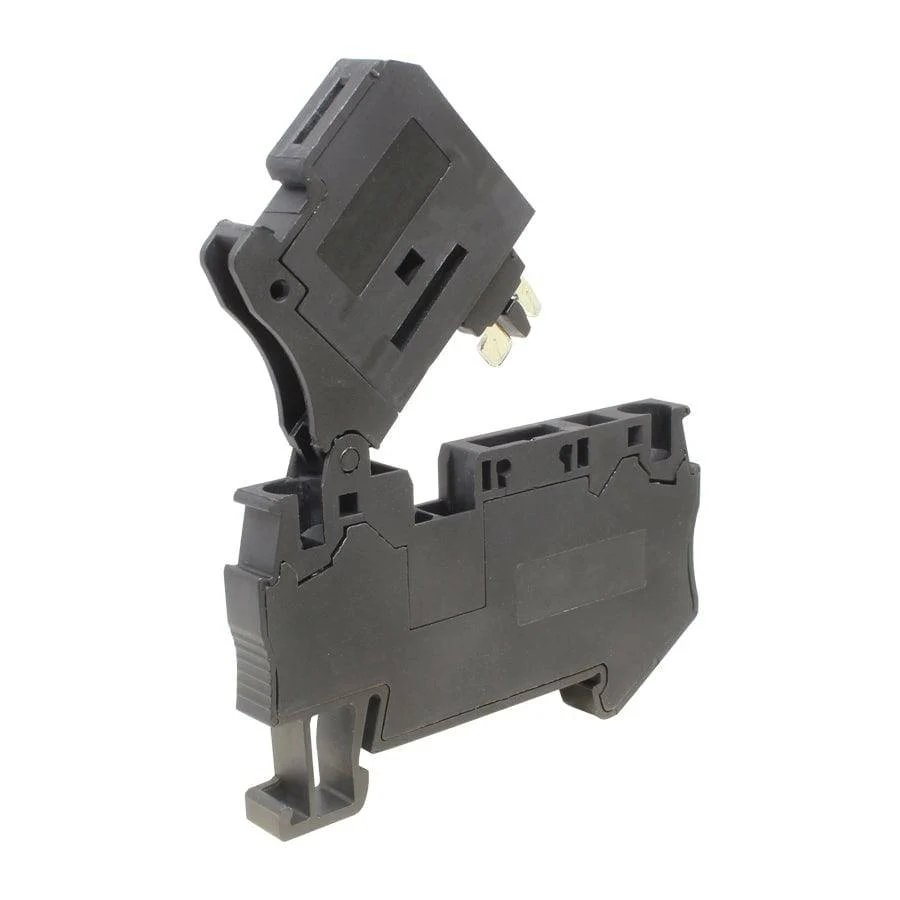

UJ5-4RD(5X20) - 24 - 10 AWG Spring Cage Terminal Block, 250v, UL Approved, Black
SPRING CAGE TERMINAL BLOCK
Spring cage terminal blocks enable the insertion of wire conductors with or without ferrules and can clamp various types of copper cables without any pretreatment. Additionally, fuse terminal blocks provide the dual functionality of a fuse carrier and a power distributor.
TECHNICAL DATA:
| Wire Range (Stranded): | 24 to 12 AWG (0.20mm2 to 4.00mm2) |
| Wire Range (Solid): | 24 to 10 AWG (0.20mm2 to 6.00mm2) |
| Stripping Length: | 0.39" (10mm) |
| Connection Method: | Spring Cage Connection |
| Operating Temperature: | -40°F to +221°F (-40°C to +105°C) |
| Ambient Temperature: | -77°F to +140°F (-25°C to +60°C) |
| Relative Humidity: | 30% to 90% |
| Connection Standard: | IEC 60947-7-1 |
DIMENSIONS:
| Width | 2.43" (61.8mm) |
| Thickness: | 0.24" (6.2mm) |
| Height: | 2.43" (61.8mm) |
PRODUCT PARAMETERS:
| Number of Connections: | 2 |
| Rated Cross Section (mm): | 6 |
| Color: | Black |
| Insulation Material: | PA (Nylon) |
| Flame Retardant Grade: | V0 (UL94) |
| Rated Voltage (V): | 250v |
| Rated Current (A): | 6.3a |
| Temperature of Insulation Material: | -40°F to +257°F (-40°C to +125°C) |
| Wire Feed: | Above the terminal |
COMPATIBLE ACCESSORIES:
Items with links are currently available for purchase. E-mail us today for availability of non-stock items.
| Mounting Rail (Top Hat Type): | TH35-7.5 & TH35-15 |
| Jumpers (2 Position): | UFBS2-6 |
| Jumpers (3 Position): | UFBS3-6 |
| Jumpers (4 Position): | UFBS4-6 |
| Jumpers (5 Position): | UFBS5-6 |
| Jumpers (10 Position): | UFBS10-6 |
| Center Marker Strip (Blank): | UZB6-10(Blank) |
| Center Marker Strip (Horizontal): | UZB6-10(Horizontal) |
| Center Marker Strip (Vertical): | UZB6-10(Vertical) |
| Side Marker Strip (Blank): | UBFM6(Blank) |
|
Side Marker Strip (Horizontal): |
UBFM6(Horizontal) |
| Side Marker Strip (Vertical): | UBFM6(Vertical) |
| Screwdriver: | YB0.6x3.5 |
MOUNTING RAIL TYPE:
DOCUMENT FILE:
Original: $2.24
-70%$2.24
$0.67Product Information
