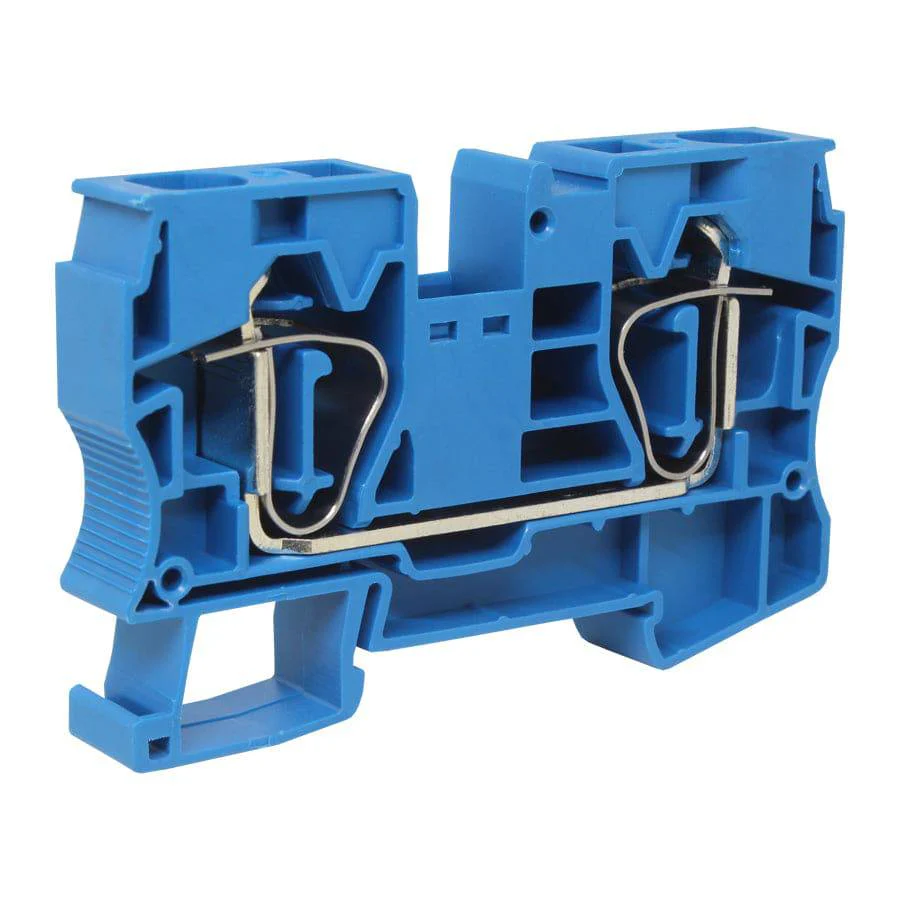

UJ5-16(BU) - 16 to 4 AWG, Spring Cage Terminal Block, UL Approved, Blue
SPRING CAGE TERMINAL BLOCK
Introducing the UJ5-16(BU), the UL approved terminal block with spring cage technology for secure and efficient wire connections. It's perfect for a variety of applications and can accommodate 16 to 4 AWG wires.
TECHNICAL DATA:
| Wire Range (Stranded): | 16 to 6 AWG (1.50mm to 16.00mm) |
| Wire Range (Solid): | 16 to 4 AWG (1.50mm to 25.00mm) |
| Stripping Length: | 0.71" (18mm) |
| Connection Method: | Spring-Cage Connection |
| Operating Temperature: | -40°F to +221°F (-40°C to +105°C) |
| Ambient Temperature: | -77°F to +140°F (-25°C to +60°C) |
| Relative Humidity: | 30% to 90% |
| Connection Standard: | IEC 60947-7-1 |
DIMENSIONS:
| Width: | 3.16" (80.2mm) |
| Thickness: | 0.48" (12.2mm) |
| Height: | 1.99" (50.6mm) |
| Number of Connections: | 2 |
| Rated Cross Section (mm): | 25 |
| Color: | Blue |
| Insulation Material: | PA (Nylon) |
| Flame Retardant Grade: | V0 (UL94) |
| Rated Voltage (V): | 800v |
| Rated Current (A): | 90a |
| Temperature of Insulation Material: | -40°F to +257°F (-40°C to +125°C) |
| Wire Feed: | Above the terminal |
COMPATIBLE ACCESSORIES:
Items with links are currently available for purchase. E-mail us today for availability of non-stock items.
| Mounting Rail: | TH35-7.5 & TH35-15 |
| End Cover: | UJ5-16G |
| Center Marker Strip (Blank): | UZB10-10(Blank) |
| Center Marker Strip (Horizontal): | UZB10-10(Horizontal) |
| Center Marker Strip (Vertical): | UZB10-10(Vertical) |
| Side Marker Strip (Blank): | UBFM8(Blank) |
| Side Marker Strip (Horizontal): | UBFM8(Horizontal) |
| Side Marker Strip (Vertical): | UBFM8(Vertical) |
| Screwdriver: | YB1.0x5.0 |
MOUNTING RAIL TYPE:
