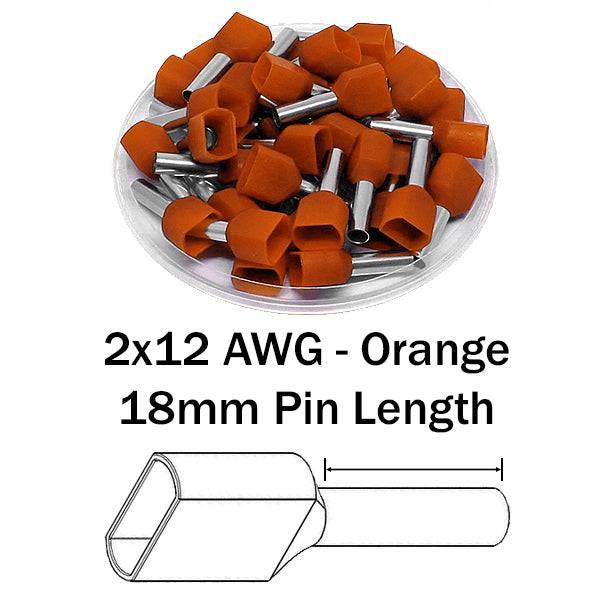

TT40018 - 12 AWG Twin Wire Ferrules, 18mm Pin, Orange, 100 Pieces
A Wire Ferrule is a connector used to terminate stranded wires (sometimes referred to as a cord end terminal or bootlace ferrule). Traditionally a wire ferrule is crimped to a stranded wire using a crimping tool (compression, ratchet, or pneumatic mechanism), thus turning the stranded wire into a solid one.
Wire Ferrules are offered without insulation (Non-Insulated Wire Ferrules), with plastic insulation for single wires (Single Insulated Wire Ferrules) and with a plastic insulation to accommodate two wires (Twin Wire Ferrules). Wire Ferrules are offered in Strips or Spools to be used with automatic crimping machines or multi-function crimping tools.
Dimensions & Features:
Product Drawing:
Altech Corp: FTD1218
Wire Ferrules are offered without insulation (Non-Insulated Wire Ferrules), with plastic insulation for single wires (Single Insulated Wire Ferrules) and with a plastic insulation to accommodate two wires (Twin Wire Ferrules). Wire Ferrules are offered in Strips or Spools to be used with automatic crimping machines or multi-function crimping tools.
Dimensions & Features:
| Wire Size: | 2x12 AWG |
| Color: | Orange |
| E: | 5.3mm (0.21") |
| D1: | 3.8mm (0.15") |
| D2: | 8.5mm (0.33") |
| L1: | 29.1mm (1.15") |
| L2: | 18.0mm (0.71") |
| S1: | 0.3mm (0.01") |
| Max Electrical Rating: | 105oC (221oF) - 600 Volts |
| Max Electrical Current: | 35A |
| Material: | Tin-Plated Copper |
| UL Approved: | No |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
Product Drawing:
Cross References
Cross Reference Parts:Altech Corp: FTD1218
Documents
Click to view product spec sheet:Videos
Check out our YouTube channel!$3.36
Original: $11.20
-70%TT40018 - 12 AWG Twin Wire Ferrules, 18mm Pin, Orange, 100 Pieces—
$11.20
$3.36Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
A Wire Ferrule is a connector used to terminate stranded wires (sometimes referred to as a cord end terminal or bootlace ferrule). Traditionally a wire ferrule is crimped to a stranded wire using a crimping tool (compression, ratchet, or pneumatic mechanism), thus turning the stranded wire into a solid one.
Wire Ferrules are offered without insulation (Non-Insulated Wire Ferrules), with plastic insulation for single wires (Single Insulated Wire Ferrules) and with a plastic insulation to accommodate two wires (Twin Wire Ferrules). Wire Ferrules are offered in Strips or Spools to be used with automatic crimping machines or multi-function crimping tools.
Dimensions & Features:
Product Drawing:
Altech Corp: FTD1218
Wire Ferrules are offered without insulation (Non-Insulated Wire Ferrules), with plastic insulation for single wires (Single Insulated Wire Ferrules) and with a plastic insulation to accommodate two wires (Twin Wire Ferrules). Wire Ferrules are offered in Strips or Spools to be used with automatic crimping machines or multi-function crimping tools.
Dimensions & Features:
| Wire Size: | 2x12 AWG |
| Color: | Orange |
| E: | 5.3mm (0.21") |
| D1: | 3.8mm (0.15") |
| D2: | 8.5mm (0.33") |
| L1: | 29.1mm (1.15") |
| L2: | 18.0mm (0.71") |
| S1: | 0.3mm (0.01") |
| Max Electrical Rating: | 105oC (221oF) - 600 Volts |
| Max Electrical Current: | 35A |
| Material: | Tin-Plated Copper |
| UL Approved: | No |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
Product Drawing:
Cross References
Cross Reference Parts:Altech Corp: FTD1218
Documents
Click to view product spec sheet:
