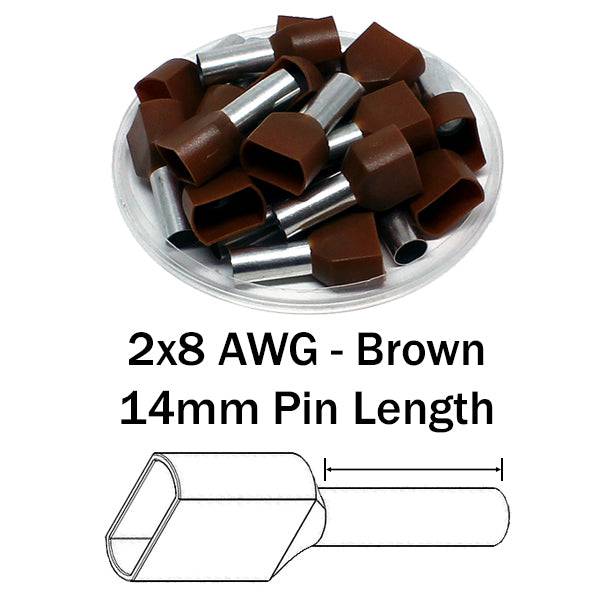

TT100014 - 8 AWG Twin Wire Ferrules, 14mm Pin, Brown, 100 Pieces
A Wire Ferrule is a connector used to terminate stranded wires (sometimes referred to as a cord end terminal or bootlace ferrule). Traditionally a wire ferrule is crimped to a stranded wire using a crimping tool (compression, ratchet, or pneumatic mechanism), thus turning the stranded wire into a solid one.
Wire Ferrules are offered without insulation (Non-Insulated Wire Ferrules), with plastic insulation for single wires (Single Insulated Wire Ferrules) and with a plastic insulation to accommodate two wires (Twin Wire Ferrules). Wire Ferrules are offered in Strips or Spools to be used with automatic crimping machines or multi-function crimping tools.
Dimensions & Features:
Product Drawing:
ABB: XUS001945
Crimp Supply: 13A13011
Tyco AMP: 2-966 144-8
Weidmuller: 9005170000
ZF: V3AE3122
Wire Ferrules are offered without insulation (Non-Insulated Wire Ferrules), with plastic insulation for single wires (Single Insulated Wire Ferrules) and with a plastic insulation to accommodate two wires (Twin Wire Ferrules). Wire Ferrules are offered in Strips or Spools to be used with automatic crimping machines or multi-function crimping tools.
Dimensions & Features:
| Wire Size: | 2x8 AWG |
| Color: | Brown |
| E: | 7.8mm (0.31") |
| D1: | 6.5mm (0.25") |
| D2: | 12.6mm (0.50") |
| L1: | 26.6mm (1.05") |
| L2: | 14.0mm (0.55") |
| S1: | 0.3mm (0.01") |
| Max Electrical Rating: | 105oC (221oF) - 600 Volts |
| Max Electrical Current: | 70A |
| Material: | Tin-Plated Copper |
| UL Approved: | No |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
Product Drawing:
Cross References
Cross Reference Parts:ABB: XUS001945
Crimp Supply: 13A13011
Tyco AMP: 2-966 144-8
Weidmuller: 9005170000
ZF: V3AE3122
Documents
Click to view product spec sheet:Videos
Check out our YouTube channel!$2.24
Original: $7.46
-70%TT100014 - 8 AWG Twin Wire Ferrules, 14mm Pin, Brown, 100 Pieces—
$7.46
$2.24Product Information
