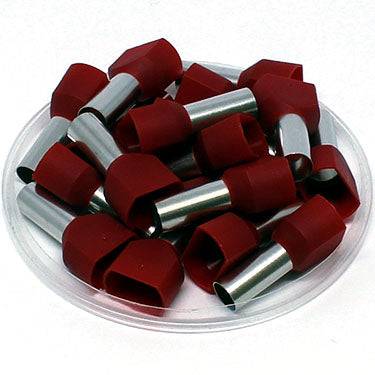

TD100018 - 2x8 AWG (18mm Pin) Twin Wire Ferrules - Red, 100 Pieces
A Wire Ferrule is a connector used to terminate stranded wires (sometimes referred to as a cord end terminal or bootlace ferrule). Traditionally a wire ferrule is crimped to a stranded wire using a crimping tool (compression, ratchet, or pneumatic mechanism), thus turning the stranded wire into a solid one. Wire Ferrules are offered without insulation (Non-Insulated Wire Ferrules), with plastic insulation for single wires (Single Insulated Wire Ferrules) and with a plastic insulation to accommodate two wires (Twin Wire Ferrules). Wire Ferrules are offered in Strips or Spools to be used with automatic crimping machines or multi-function crimping tools.
Dimensions & Features:
Product Drawing:
WAGO: 216-578
ZF: V30AE001153
Dimensions & Features:
| Wire Size: | 2x8 AWG |
| Color: | Red |
| E: | 7.8mm (0.30") |
| D1: | 6.5mm (0.26") |
| D2: | 12.6mm (0.50") |
| L1: | 30.6mm (1.20") |
| L2: | 18.0mm (0.71") |
| S1: | 0.3mm (0.01") |
| Material: | Tin Plated Copper |
| Max Electrical Rating: | 105°C (221°F) 600 Volts |
| Max Electrical Current: | 70A |
| UL Approved: | No |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
Product Drawing:
Cross References
Cross Reference Parts:WAGO: 216-578
ZF: V30AE001153
Documents
Click to view product spec sheet:Videos
