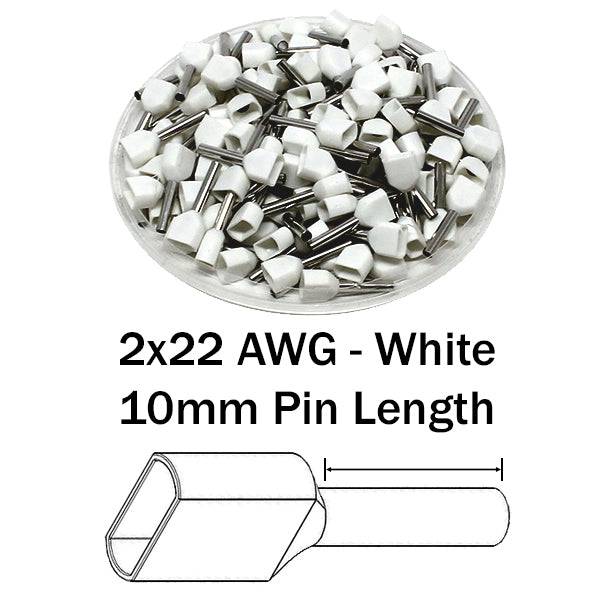

TD05010 - 22 AWG Twin Wire Ferrules, 10mm Pin, White, 500 Pieces
A Wire Ferrule is a connector used to terminate stranded wires (sometimes referred to as a cord end terminal or bootlace ferrule). Traditionally a wire ferrule is crimped to a stranded wire using a crimping tool (compression, ratchet, or pneumatic mechanism), thus turning the stranded wire into a solid one.
Wire Ferrules are offered without insulation (Non-Insulated Wire Ferrules), with plastic insulation for single wires (Single Insulated Wire Ferrules) and with a plastic insulation to accommodate two wires (Twin Wire Ferrules). Wire Ferrules are offered in Strips or Spools to be used with automatic crimping machines or multi-function crimping tools.
Dimensions & Features:
Product Drawing:
ABB: XUSD01815
Altech Corp: FTD2010
Phoenix Contact: 3203309
WAGO: 216-530
Weidmuller: 9037390000
Wire Ferrules are offered without insulation (Non-Insulated Wire Ferrules), with plastic insulation for single wires (Single Insulated Wire Ferrules) and with a plastic insulation to accommodate two wires (Twin Wire Ferrules). Wire Ferrules are offered in Strips or Spools to be used with automatic crimping machines or multi-function crimping tools.
Dimensions & Features:
| Wire Size: | 2x22 AWG |
| Color: | White |
| E: | 2.5mm (0.09") |
| D1: | 1.5mm (0.05") |
| D2: | 4.9mm (0.19") |
| L1: | 17.1mm (0.67") |
| L2: | 10.0mm (0.39") |
| S1: | 0.3mm (0.01") |
| Max Electrical Rating: | 105oC (221oF) - 600 Volts |
| Max Electrical Current: | 12A |
| Material: | Tin-Plated Copper |
| UL Approved: | Yes |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
Product Drawing:
Cross References
Cross Reference Parts:ABB: XUSD01815
Altech Corp: FTD2010
Phoenix Contact: 3203309
WAGO: 216-530
Weidmuller: 9037390000
Documents
Click to view product spec sheet:Videos
