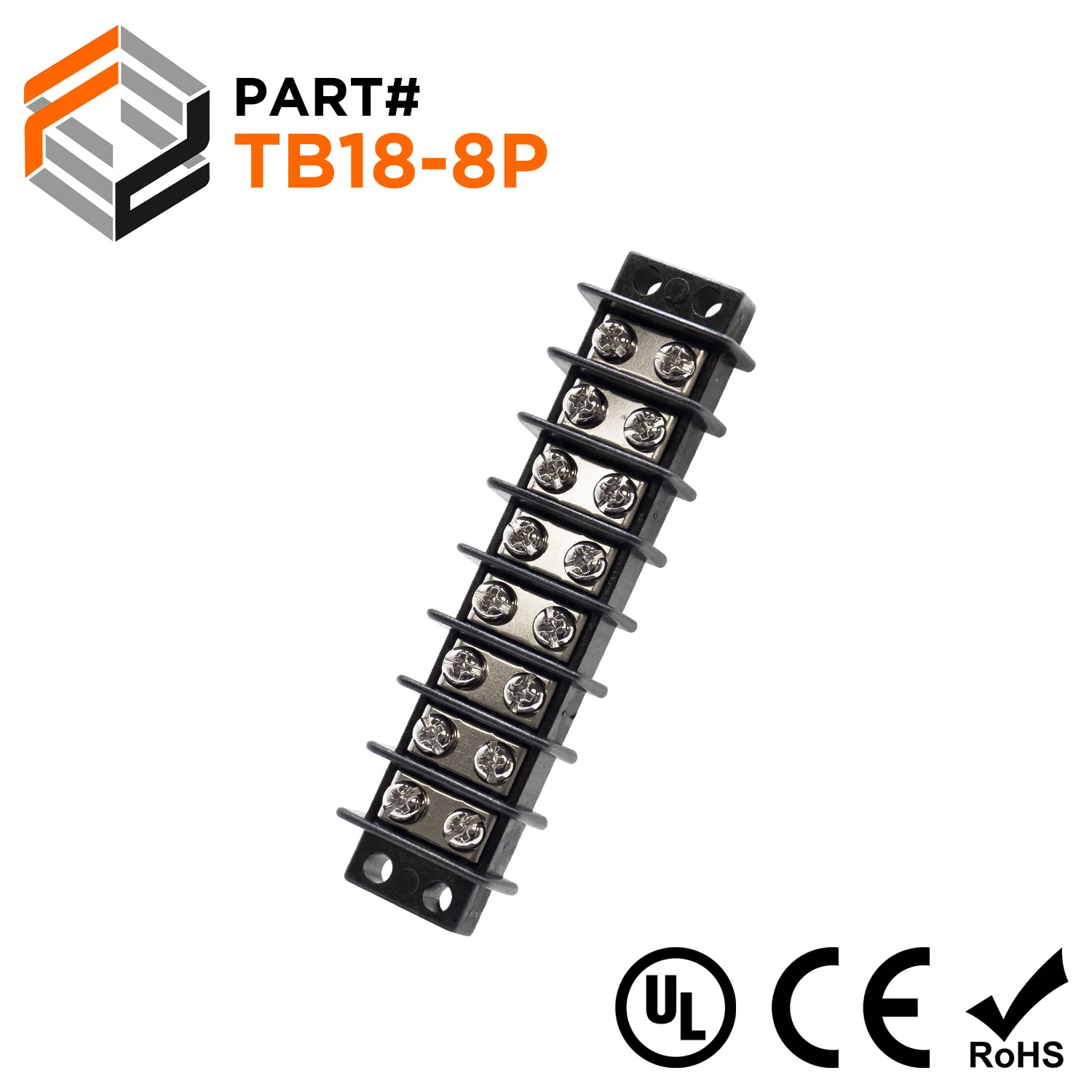

Barrier Strip Terminal Block, Terminal Strip, 8 Pole, Double Row, 20A, 300V, UL Approved - TB18-8P
Terminal strips are used to fasten or terminate wire. This can be done by placing bare/exposed wire under the screws/poles and screwing them down. However, use of a wire ferrule or fork/spade terminal is encouraged to prevent the wire from fraying.
Dimensions & Features:
Product Drawing:
None
Dimensions & Features:
| Number of Poles: | 8 Poles |
| Pitch: | 11.1mm (0.44") |
| A: | 100.1mm (3.94") |
| B: | 108mm (4.25") |
| Material: | Thermoplastic UL94-V0 |
| Electrical Rating: | 300 Volts |
| Amp Rating: | 20AMP |
| UL Recognized: | Yes |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
Product Drawing:
Cross References
Cross Reference Parts:None
Documents
Click to view product spec sheet:Videos
Check out our YouTube channel!$1.25
Original: $4.16
-70%Barrier Strip Terminal Block, Terminal Strip, 8 Pole, Double Row, 20A, 300V, UL Approved - TB18-8P—
$4.16
$1.25Product Information
