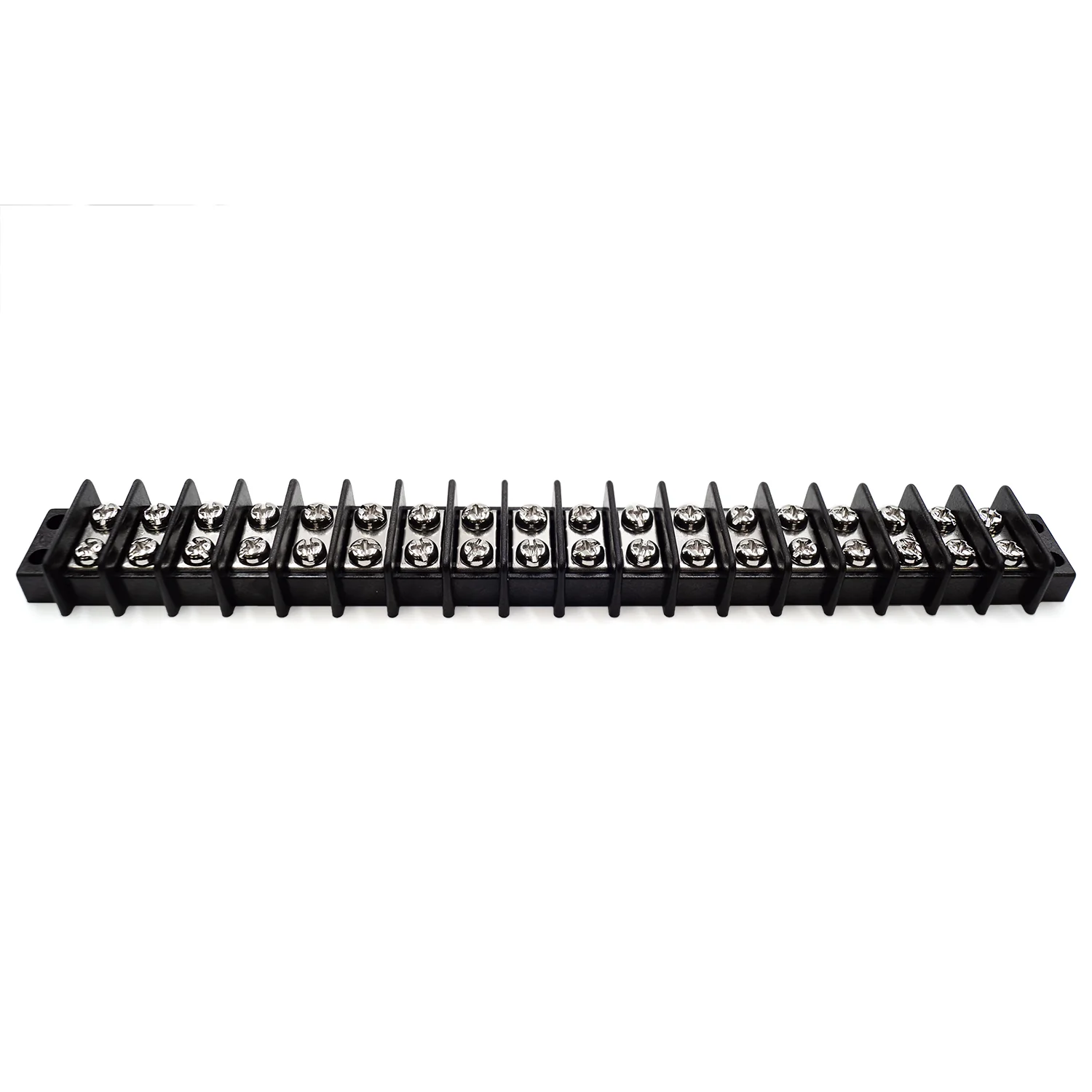

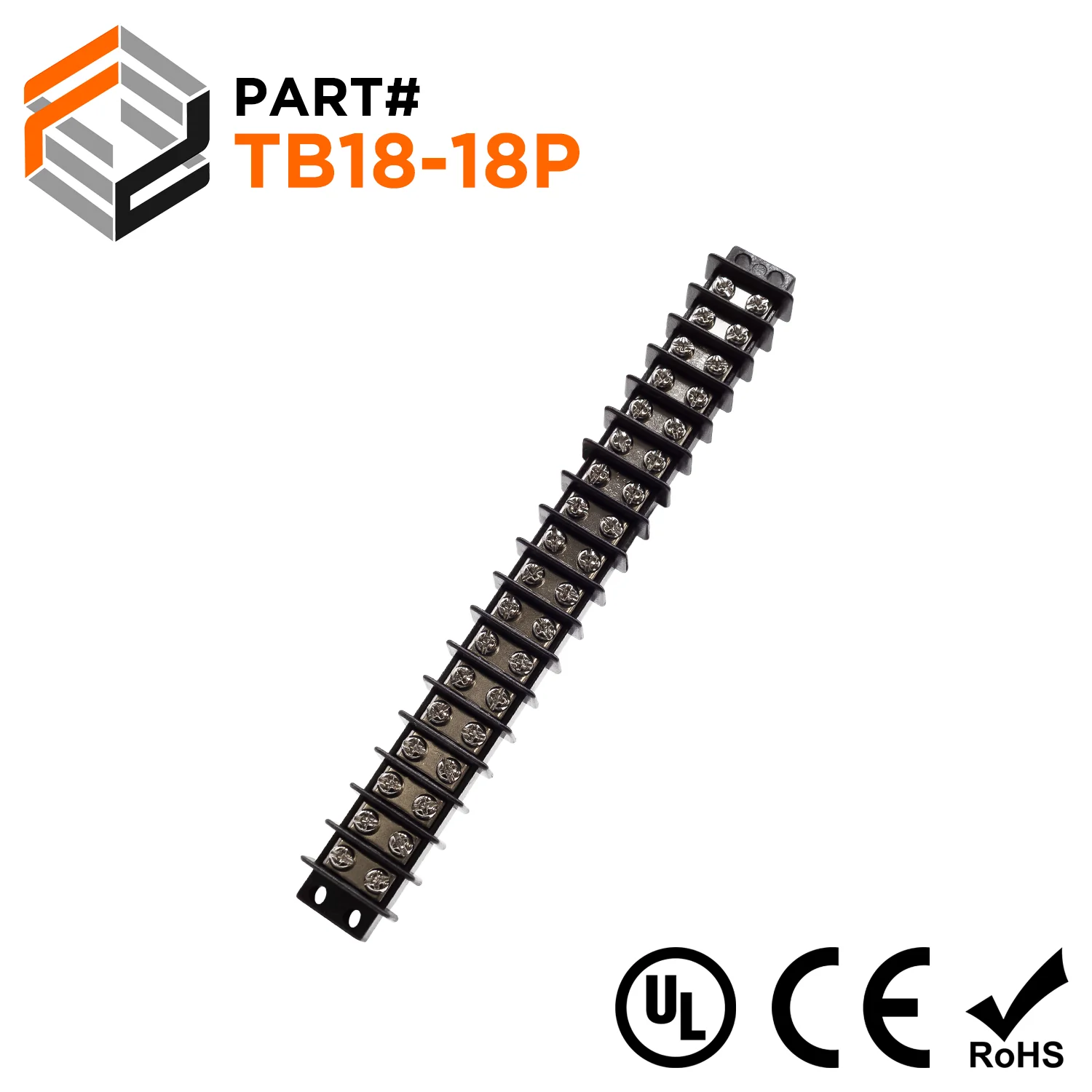

TB18-18P - Barrier Strip Terminal Block, Terminal Strip, 18 Pole, Double Row, 20A, 300V, UL Approved, 1 Piece
Terminal strips are used to fasten or terminate wire. This can be done by placing bare/exposed wire under the screws/poles and screwing them down. However, use of a wire ferrule or fork/spade terminal is encouraged to prevent the wire from fraying.
Dimensions & Features:

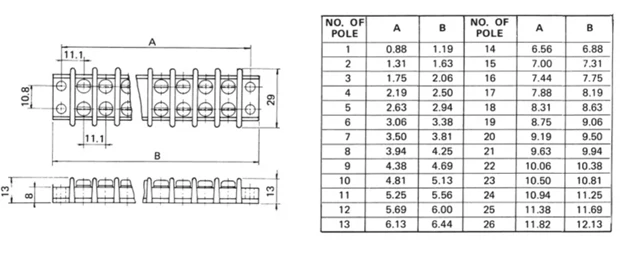

Product Drawing:
Dimensions & Features:
| Number of Poles: | 18 Poles |
| Pitch: | 11.1mm (0.44") |
| A: | 211.1mm (8.31") |
| B: | 219.2mm (8.63") |
| Material: | Thermoplastic UL94-V0 |
| Electrical Rating: | 300 Volts |
| Amp Rating: | 20AMP |
| UL Recognized: | Yes |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
Product Drawing:
$2.81
Original: $9.36
-70%TB18-18P - Barrier Strip Terminal Block, Terminal Strip, 18 Pole, Double Row, 20A, 300V, UL Approved, 1 Piece—
$9.36
$2.81Product Information
