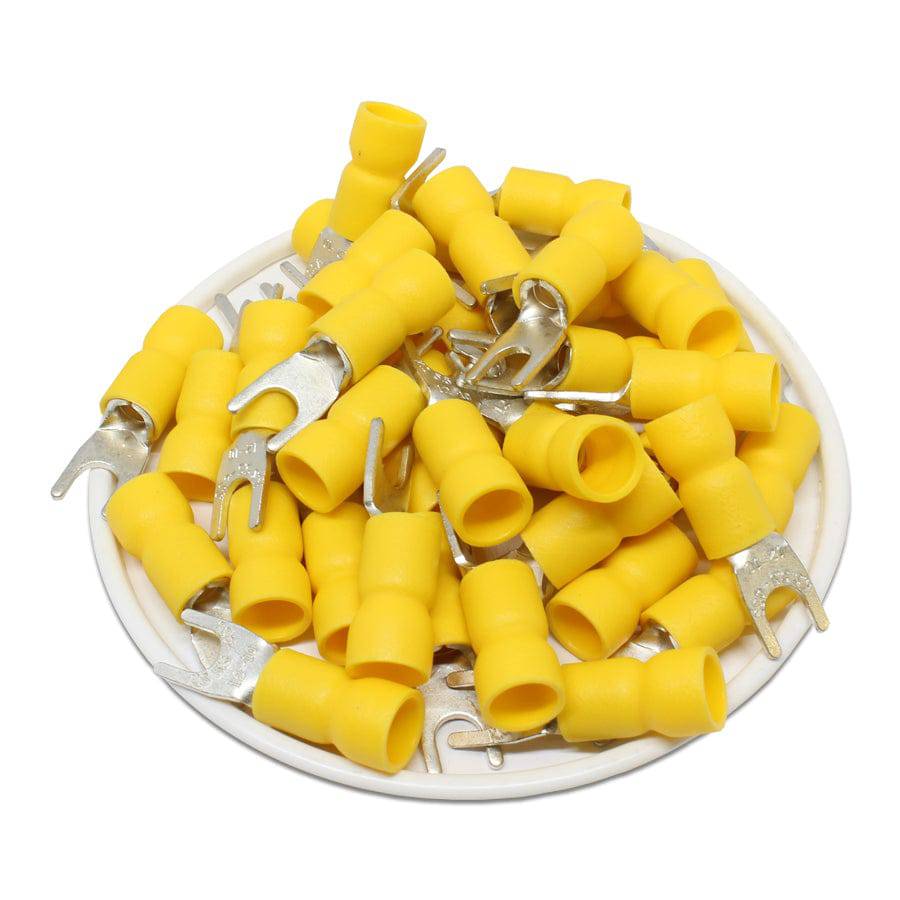

SVESS5-4 - Vinyl Insulated Spade Terminal - 12-10 AWG - #8 Stud
Heat shrink terminals provide sealed protection against environmental extremities. They insulate, seal and protect joints from physical abuse, abrasion, water, salt, and other corrosive elements.
Dimensions & Features:
Product Drawing:
None
Dimensions & Features:
| Wire Size: | 12-10 AWG |
| Color: | Yellow |
| T: | 1.0mm (0.04") |
| L: | 25.5mm (1.00") |
| F: | 7.5mm (0.30") |
| E: | 14.1mm (0.56") |
| W: | 7.2mm (0.28") |
| D: | 6.3mm (0.25") |
| D1: | 3.4mm (0.13") |
| Insulation Material: | Vinyl |
| Terminal Material: | Tin-Plated Copper |
| Temperature Rating: | 105°C |
| Max Electrical Current: | 50AMP |
| Voltage Rating: | 600 Volts |
| UL Recognized: | Yes |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
Product Drawing:
Cross References
Cross Reference Parts:None
Documents
Click to view product spec sheet:Videos
