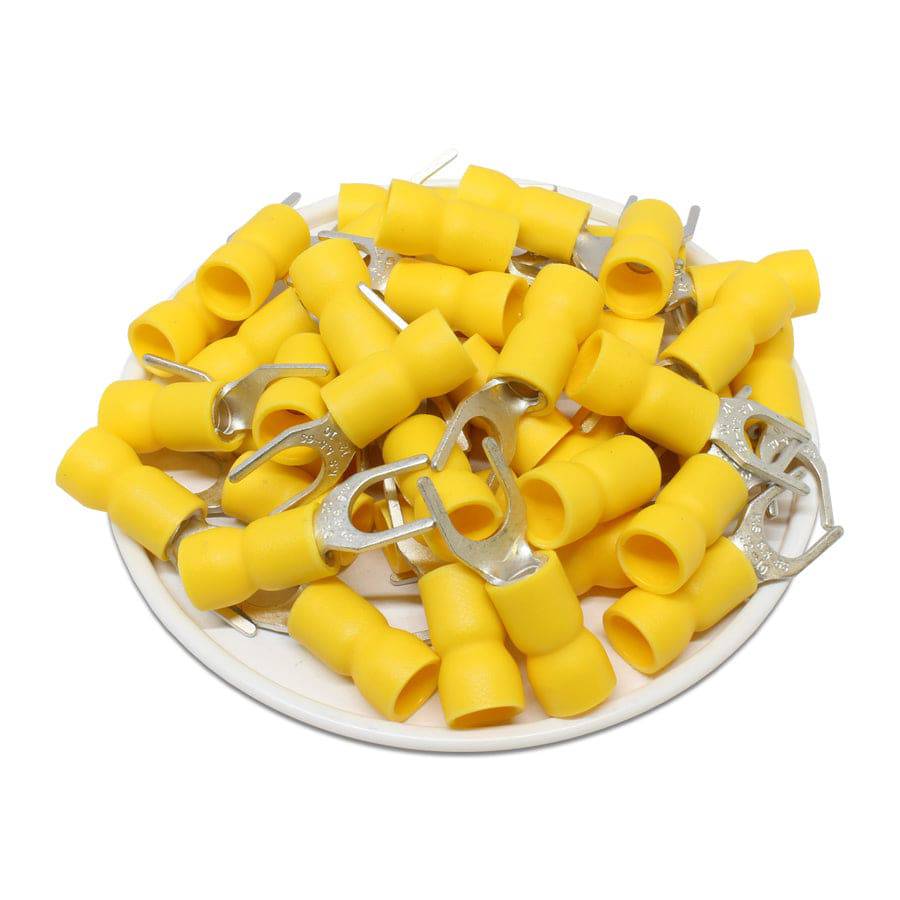

SVES5-6 - 12 to 10 AWG Vinyl Insulated Spade Terminals, 1/4" Stud, 100 Pieces
Non-insulated spade terminals lock in place for tight and secure connection in cramped spaces. They allow the user to quickly and easily terminate a connection without the need to remove the fastener. Internal barrel serrations assure good wire contact and maximum tensile strength.
Dimensions & Features:
Product Drawing:
Z+F: V70GK004013
Dimensions & Features:
| Wire Size: | 12-10 AWG |
| Terminal Material: | Tin-Plated Copper |
| Max Electrical Current: | 50AMP |
| Temperature Rating: | 105oC |
| Voltage Rating: | 600 Volts |
| T: | 1.0mm (0.04") |
| L: | 26.6mm (1.05)") |
| F: | 7.0mm (0.28") |
| E: | 14.1mm (0.56") |
| W: | 9.0mm (0.35") |
| D: | 6.3mm (0.25") |
| D1: | 3.4mm (0.13") |
| D2: | 6.4mm (0.25") |
| UL Recognized: | Yes |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
Product Drawing:
Cross References
Cross Reference Parts:Z+F: V70GK004013
Documents
Click to view product spec sheet:Videos
Check out our YouTube channel!$3.22
Original: $10.74
-70%SVES5-6 - 12 to 10 AWG Vinyl Insulated Spade Terminals, 1/4" Stud, 100 Pieces—
$10.74
$3.22Product Information
