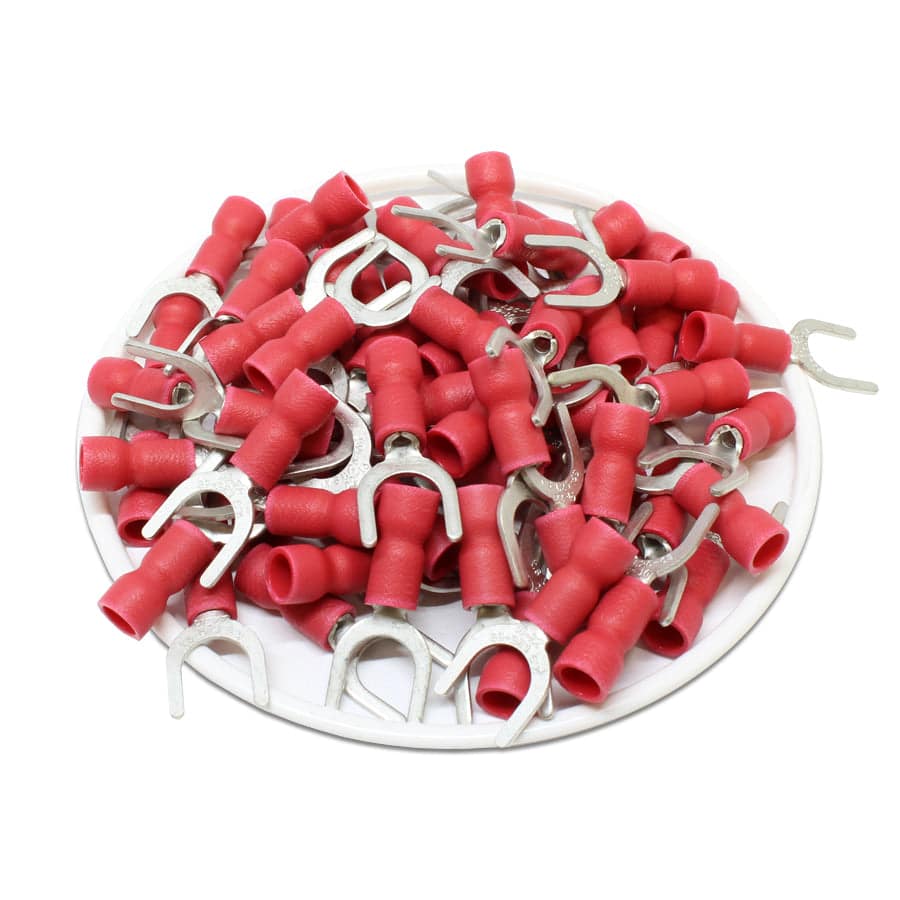

SVES1-6 - Vinyl Insulated Easy Entry Spade Terminal - 22-16 AWG - 1/4" Stud
Vinyl insulated fork terminals lock in place for tight and secure connection in cramped spaces. They allow the end user to quickly and easily terminate a connection without the need to remove the fastener. Internal barrel serrations assure good wire contact and maximum tensile strength. UL Flammability UL94V-2
Dimensions & Features:
Product Drawing:
Dimensions & Features:
| Wire Size: | 22-16 AWG |
| Stud Size: | 1/4" Stud |
| Color: | Red |
| T: | 0.75mm (0.03") |
| L: | 22.2mm (0.87") |
| F: | 6.5mm (0.26") |
| E: | 11.2mm (0.44") |
| W: | 9.5mm (0.37") |
| D: | 4mm (0.16") |
| D1: | 1.7mm (0.07") |
| D2: | 6.4mm (0.252") |
| Insulation Material: | Vinyl |
| Terminal Material: | Tin-Plated Copper |
| Temperature Rating: | 105°C |
| Max Electrical Current: | 18AMP |
| Voltage Rating: | 600 Volts |
| UL Recognized: | Yes |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
