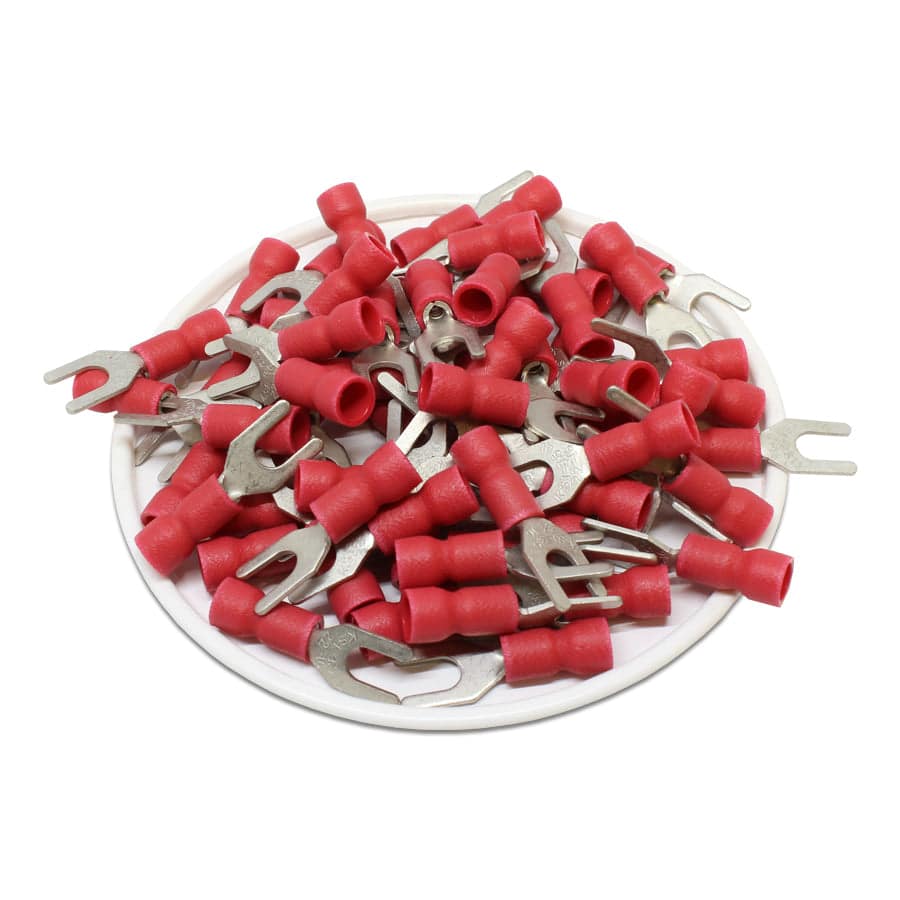

SVELL1-3.7 - Vinyl Insulated Spade Terminals - 22-16 AWG - #6 Stud
Heat shrink terminals provide sealed protection against environmental extremities. They insulate, seal and protect joints from physical abuse, abrasion, water, salt, and other corrosive elements.
Dimensions & Features:
Product Drawing:
None
Dimensions & Features:
| Wire Size: | 22-16 AWG |
| Stud Size: | #6 Stud |
| Color: | Red |
| T: | 0.7mm (0.04") |
| L: | 22.2mm (0.87") |
| F: | 6.5mm (0.25") |
| E: | 11.2mm (0.44") |
| W: | 7.2mm (0.28") |
| D: | 4.0mm (0.16") |
| D1: | 1.7mm (0.07") |
| Insulation Material: | Vinyl |
| Terminal Material: | Tin-Plated Copper |
| Temperature Rating: | 105°C |
| Max Electrical Current: | 18AMP |
| UL Recognized: | Yes |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
