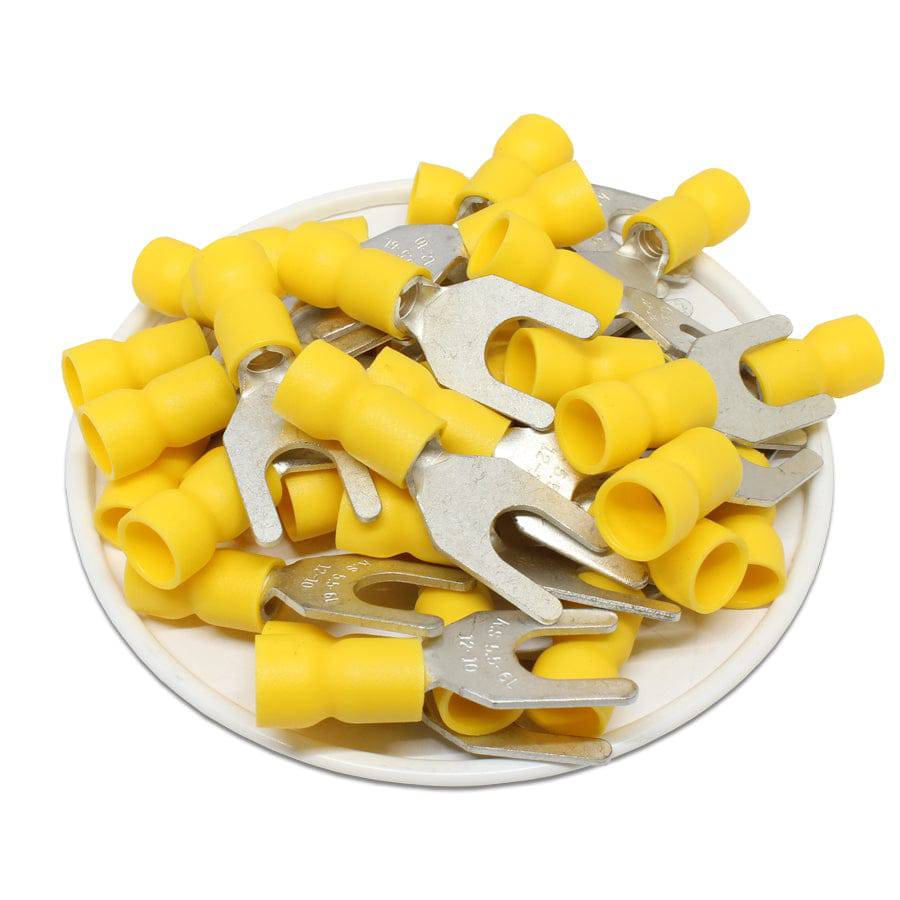

SVEL5-6 - 12 to 10 AWG Vinyl Insulated Spade Terminals, 1/4" Stud, 100 Pieces
Vinyl insulated fork terminals lock in place for tight and secure connection in cramped spaces. They allow the end user to quickly and easily terminate a connection without the need to remove the fastener. Internal barrel serrations assure good wire contact and maximum tensile strength. UL Flammability UL94V-2
Dimensions & Features:
Product Drawing:
Tyco AMP: 3240044
Phoenix Contact: 165019
Dimensions & Features:
| Wire Size: | 12-10 AWG |
| Stud Size: | 1/4" Stud |
| Color: | Yellow |
| T: | 1.0mm (0.04") |
| L: | 32.6mm (1.3)") |
| F: | 12.0mm (0.47") |
| E: | 14.1mm (0.56") |
| W: | 12.0mm (0.35") |
| D: | 6.3mm (0.13") |
| D1: | 3.4mm (0.13") |
| D2: | 6.4mm (0.21") |
| Terminal Material: | Tin-Plated Copper |
| Terminal Insulation: | Vinyl |
| Max Electrical Current: | 50AMP |
| Temperature Rating: | 105°C |
| Voltage Rating: | 600 Volts |
| UL Recognized: | Yes |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
Product Drawing:
Cross References
Cross Reference Parts:Tyco AMP: 3240044
Phoenix Contact: 165019
Documents
Click to view product spec sheet:Videos
Check out our YouTube channel!$4.32
