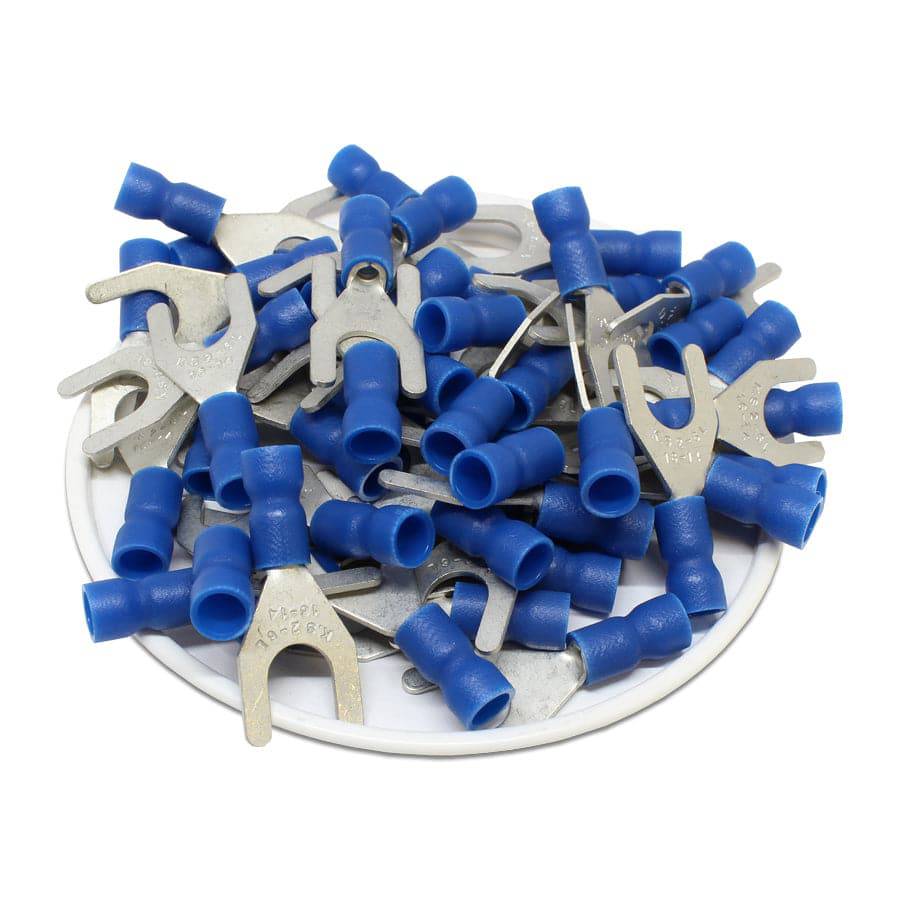

SVEL2-6 - Vinyl Insulated Easy Entry Spade Terminal - 16-14 AWG - 1/4" Stud
Vinyl insulated fork terminals lock in place for tight and secure connection in cramped spaces. They allow the end user to quickly and easily terminate a connection without the need to remove the fastener. Internal barrel serrations assure good wire contact and maximum tensile strength. UL Flammability UL94V-2
Dimensions & Features:
Product Drawing:
None
Dimensions & Features:
| Wire Size: | 16-14 AWG |
| Stud Size: | 1/4" Stud |
| Color: | Blue |
| T: | 0.8mm (0.03") |
| L: | 28.5mm (1.11") |
| F: | 11mm (0.42") |
| E: | 11.5mm (0.45") |
| W: | 12mm (0.47") |
| D: | 4.5mm (0.18") |
| D1: | 2.3mm (0.09") |
| D2: | 6.4mm (0.252") |
| Insulation Material: | Vinyl |
| Terminal Material: | Tin-Plated Copper |
| Temperature Rating: | 105°C |
| Max Electrical Current: | 30AMP |
| Voltage Rating: | 600 Volts |
| UL Recognized: | Yes |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
Product Drawing:
Cross References
Cross Reference Parts:None
Documents
Click to view product spec sheet:Videos
Check out our YouTube channel!$4.47
Original: $14.89
-70%SVEL2-6 - Vinyl Insulated Easy Entry Spade Terminal - 16-14 AWG - 1/4" Stud—
$14.89
$4.47Product Information
