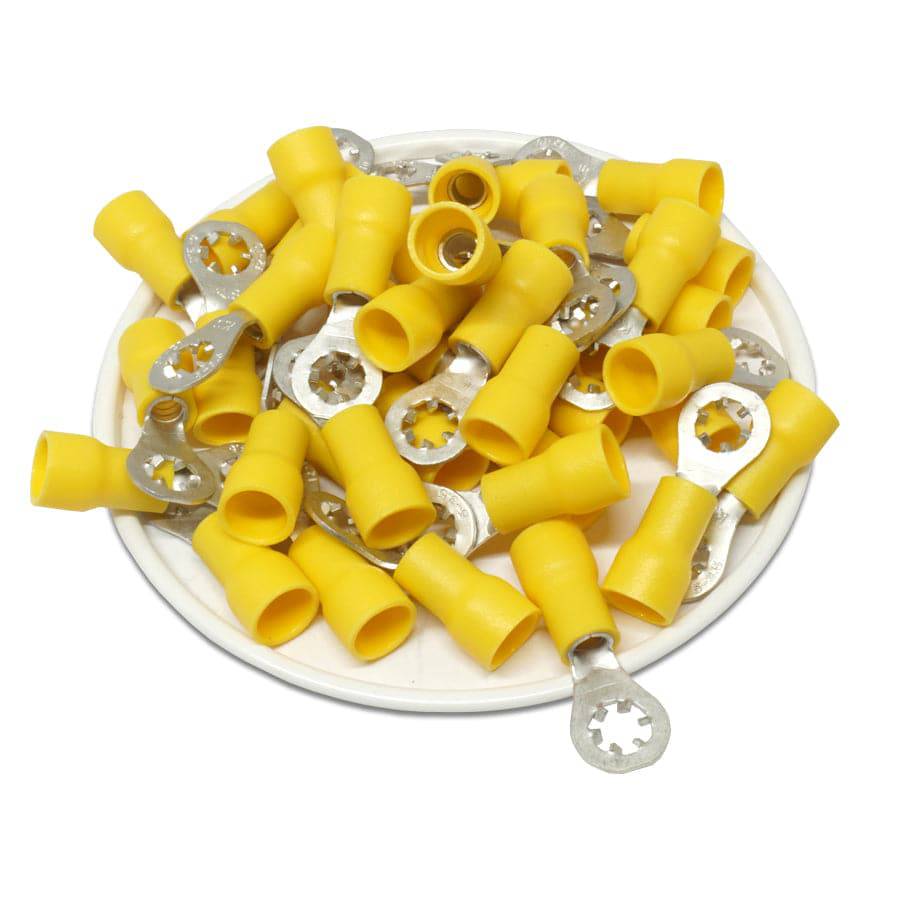

STRV5-37 - 12 to 10 AWG Vinyl PVC Insulated Star Ring Terminals, #6 Stud, UL Approved, 50 Pieces
VINYL INSULATED STAR RING TERMINALS
Ring tongue design offers a tight and secure connection in high vibration areas, Vinyl insulation sleeve is securely fastened to metal insulation grip sleeve, providing protection to crimp joint. Color coded according to industry standards Internal barrel serrations offer good wire contact and maximum tensile strength.
Dimensions & Features:
| Wire Size: | 12-10 AWG |
| Stud Size: | #6 |
| Color: | Yellow |
| W: | 9.5mm (0.37") |
| F: | 8.5mm (0.33") |
| L: | 26mm (1.02") |
| E: | 10mm (0.39") |
| D: | 6.3mm (0.24") |
| D1 | 2.3mm (0.09") |
| D2: | 3.7mm (0.14") |
| D3: | 6.7mm (0.26") |
| T: | 0.6mm (0.02") |
| Terminal Material: | Tin-Plated Brass |
| Insulation Material: | Vinyl |
| Seam: | Brazed |
| Max Electrical Rating: | 600 Volts (105°C) |
| Max Electrical Current: | 50 amp |
| UL Listed: | No |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
