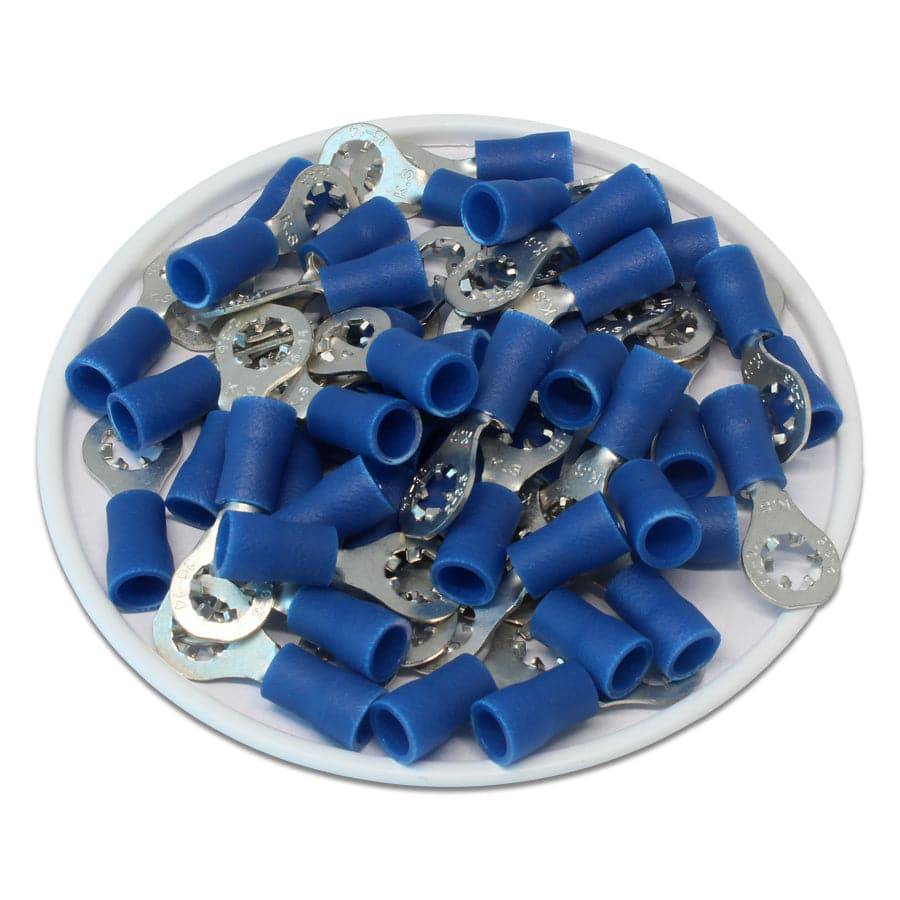

STRV2-32 - 16 to 14 AWG Vinyl Insulated Star Ring Terminals, #4 Stud, UL Recognized, 100 Pieces
VINYL INSULATED STAR RING TERMINALS
Ring tongue design offers a tight and secure connection in high vibration areas, Vinyl insulation sleeve is securely fastened to metal insulation grip sleeve, providing protection to crimp joint. Color coded according to industry standards Internal barrel serrations offer good wire contact and maximum tensile strength.
Dimensions & Features:
| Wire Size: | 16-14 AWG |
| Stud Size: | #4 Stud |
| Color: | Blue |
| W: | 8.0mm (0.32") |
| F: | 8.5mm (0.33") |
| L: | 22.2mm (0.874") |
| E: | 10mm (0.40") |
| D: | 4.5mm (0.17") |
| D1 | 2.3mm (0.09") |
| D2: | 3.2mm (0.12") |
| D3: | 5.5mm (0.21") |
| T: | 0.6mm (0.02") |
| Terminal Material: | Tin-Plated Brass |
| Insulation Material: | Vinyl |
| Seam: | Brazed |
| Max Electrical Rating: | 105°C (600 Volts) |
| UL Listed: | No |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
Cross References
Cross Reference Parts:
None
Documents
Click to view product spec sheet:
Videos
Click here to check out our YouTube channel:
