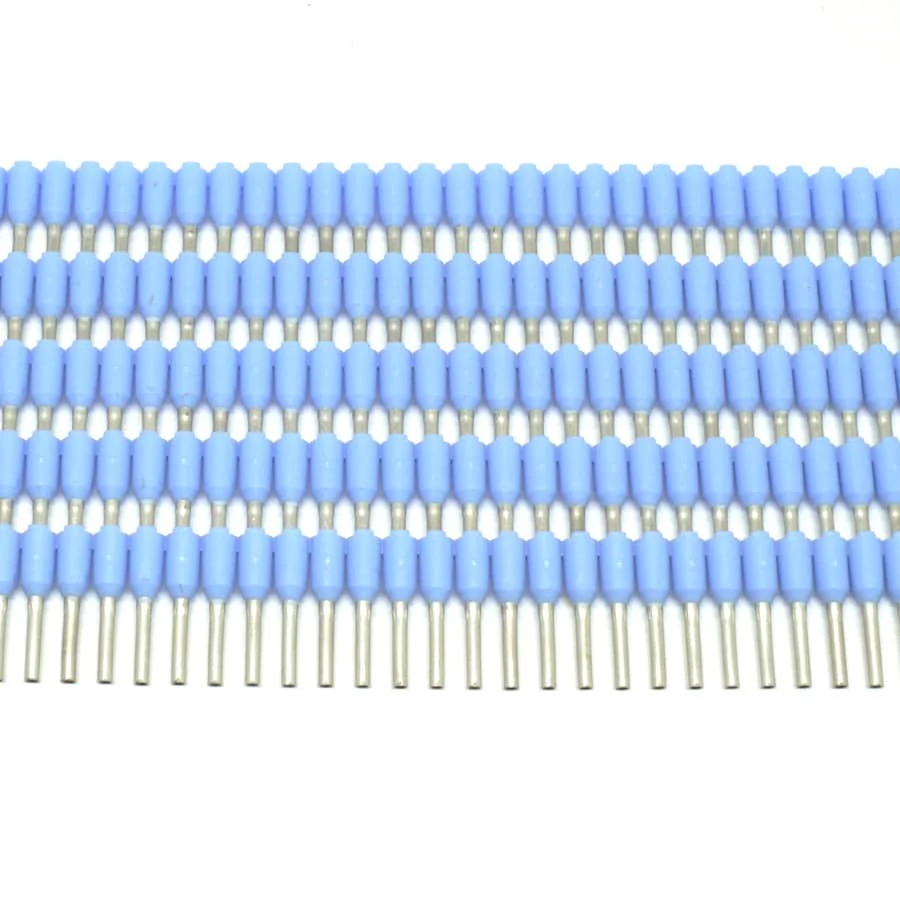

ST07508 - 20 AWG Strips of Insulated Wire Ferrules, 8mm Pin, 500 Pieces
A Wire Ferrule is a connector used to terminate stranded wires (sometimes referred to as a cord end terminal or bootlace ferrule). Traditionally a wire ferrule is crimped to a stranded wire using a crimping tool (compression, ratchet, or pneumatic mechanism), thus turning the stranded wire into a solid one.
Wire Ferrules are offered without insulation (Non-Insulated Wire Ferrules), with plastic insulation for single wires (Single Insulated Wire Ferrules) and with a plastic insulation to accommodate two wires (Twin Wire Ferrules). Wire Ferrules are offered in Strips or Spools to be used with automatic crimping machines or multi-function crimping tools.
Dimensions & Features:
Product Drawing:
ABB: XUS001841
American Electrical: 1183075
Crimp Supply: 13A14002
Greenlee: 170/8
LeGrand: 377 62
Panduit: FSF76-8-D
Phoenix Contact: 3200027
Thomas Betts: F4023
Tyco AMP: 1-966 292-1
Weidmuller: 9021040000
ZF: V3AE0537
Wire Ferrules are offered without insulation (Non-Insulated Wire Ferrules), with plastic insulation for single wires (Single Insulated Wire Ferrules) and with a plastic insulation to accommodate two wires (Twin Wire Ferrules). Wire Ferrules are offered in Strips or Spools to be used with automatic crimping machines or multi-function crimping tools.
Dimensions & Features:
| Wire Size: | 20 AWG |
| Color: | Blue |
| L1: | 14mm (0.55") |
| L2: | 8mm (0.32") |
| D: | 1.57mm (0.062") |
| D1: | 1.2mm (0.047") |
| D2: | 2.8mm (0.110") |
| Material: | Tin Plated Copper |
| UL Approved: | Yes |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
| Max Electrical Rating: | 105°C (221°F) - 600V |
| Max Electrical Current: | 17A |
Product Drawing:
Cross References
Cross Reference Parts:ABB: XUS001841
American Electrical: 1183075
Crimp Supply: 13A14002
Greenlee: 170/8
LeGrand: 377 62
Panduit: FSF76-8-D
Phoenix Contact: 3200027
Thomas Betts: F4023
Tyco AMP: 1-966 292-1
Weidmuller: 9021040000
ZF: V3AE0537
Documents
Click to view product spec sheet:Videos
Check out our YouTube channel!$18.90
