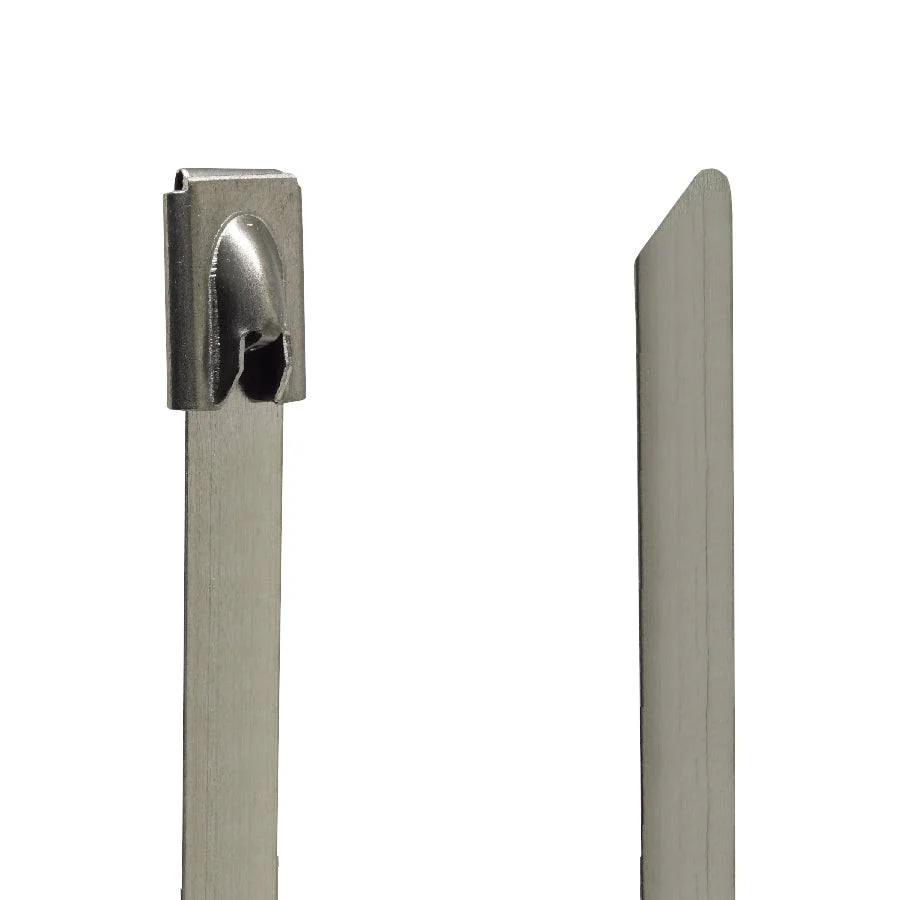

SSTH520-316 - 21" Heavy Duty Stainless Steel Cable Ties, 350lb Tensile Strength, 316 Grade, 25-Pack

SSTH520-316 - 21" Heavy Duty Stainless Steel Cable Ties, 350lb Tensile Strength, 316 Grade, 25-Pack

STAINLESS STEEL CABLE TIES - HEAVY DUTY SERIES

Stainless Steel Cable Ties are the perfect solution for bundling wires or hoses in heavy duty applications where corrosion, weathering, vibration, and temperature extremes are a common concern. These parts are made from flame retardant stainless steel and are very easy to install with a low-profile ball locking head design.

  • Grade 316 Stainless Steel  ✓
  • Ball Lock Self-Locking Head ✓
  • Flame Retardant ✓
  • Temperature Rating: -112°F to +1000°F ✓
  • Low-Profile ✓
  • No Tools Required for Installation ✓
  • UL Approved ✓

DIMENSIONS & FEATURES:

Length: 20.47" (520mm)
Width: 0.31" (7.9mm)
Material: Grade 316 Stainless Steel
Tensile Strength: 350-lbs (158.76kg)
Maximum Bundle Diameter: 6.45" (163.80mm)
Minimum Bundle Diameter: 0.59" (15.00mm)
Water Absorption: None
Flammability: Non-Flammable
Operating Temperature: -112°F to 1000°F (-80°C to 538°C)
Minimum Installation Temperature: (-60°C)
UV Resistant: Yes
Chemical Resistant: Yes
UL Approved:


DRAWING:

Documents

Click to view product spec sheet:





$3.59

Original: $11.96

-70%
SSTH520-316 - 21" Heavy Duty Stainless Steel Cable Ties, 350lb Tensile Strength, 316 Grade, 25-Pack—

$11.96

$3.59
